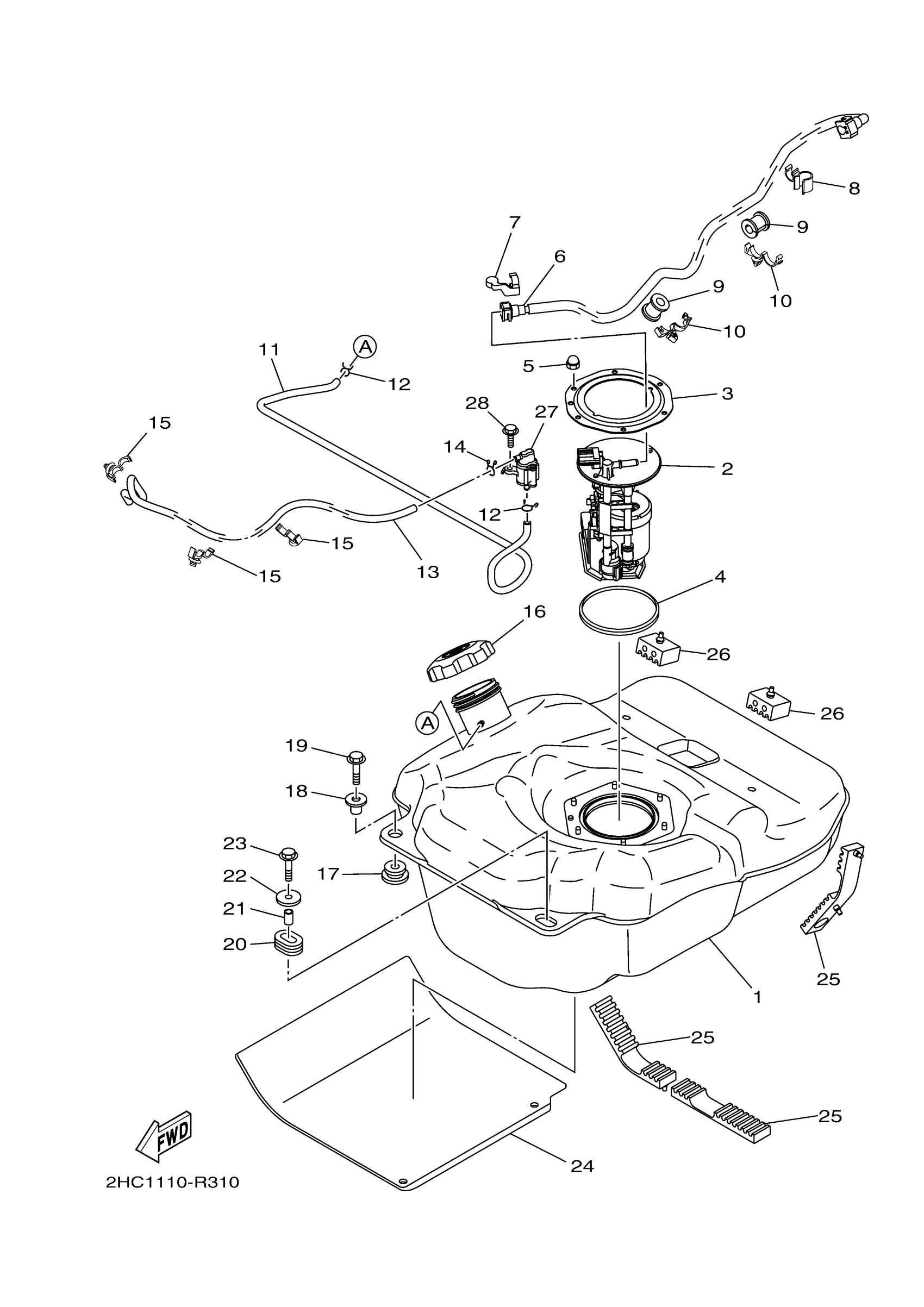

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
2HC-F4110-00-00
$211.99
2
FUEL PUMP COMP.
B16-13907-03-00
$460.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
PIPE, FUEL 1
2HC-13971-02-00
Unavailable
7
CLAMP
90464-14004-00
$7.49
8
CLAMP
90464-15007-00
Unavailable
9
GROMMET(4CG)
90480-20543-00
$8.49
10
CLAMP
90464-20010-00
$3.23
11
HOSE (L930)
90445-09830-00
Unavailable
12
CLIP
90467-090A2-00
$4.41
13
HOSE (L1125)
90445-09831-00
Unavailable
14
CLIP
90467-090A2-00
$4.41
15
CLAMP
90464-12830-00
$1.49
16
CAP ASSY
BVG-24610-00-00
Unavailable
17
GROMMET
90480-18016-00
Unavailable
18
COLLAR
90387-07021-00
Unavailable
19
BOLT, FLANGE
95817-06030-00
Unavailable
20
GROMMET(38W)
90480-01400-00
Unavailable
21
COLLAR(2UJ)
90387-061V1-00
Unavailable
22
WASHER (23T)
90201-065G8-00
Unavailable
23
BOLT, FLANGE
95817-06030-00
Unavailable
24
DAMPER, PLATE 1
2HC-F414H-00-00
Unavailable
25
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
26
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
27
PIPE JOINT ASSY
28P-24380-00-00
Unavailable
28
BOLT, FLANGE
95022-06016-00
Unavailable
