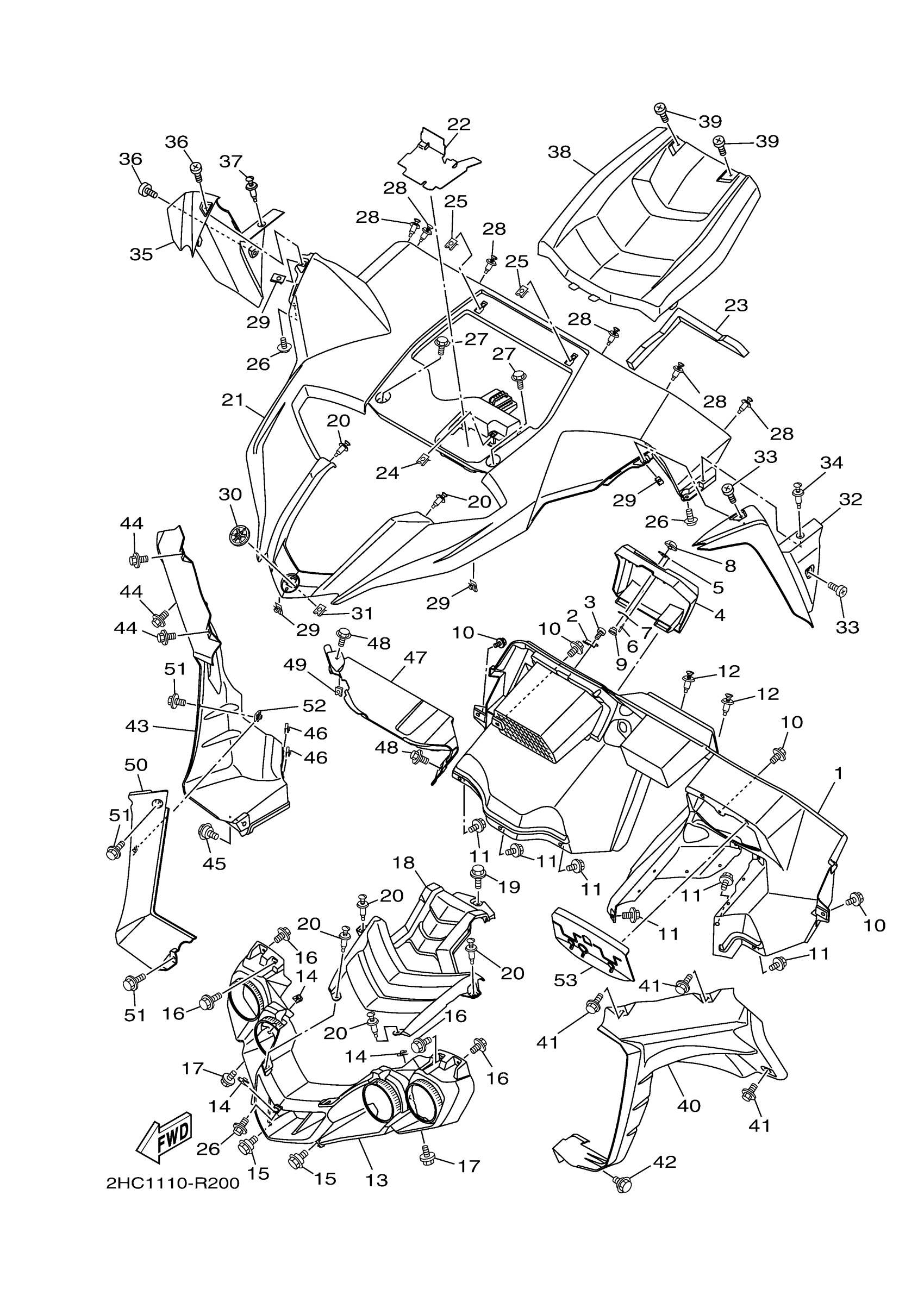

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2HC-K7711-01-00

Unavailable

2

BRACKET, COVER

1XD-F139T-00-00

$2.70

3

SCREW, TAPPING

90164-04800-00

Unavailable

4

LID

2HC-F160F-00-00

$49.99

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$8.49

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.92

8

LOCK 1

1XD-2837G-00-00

$4.06

9

LOCK 2

1XD-2837H-00-00

$2.70

10

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

13

GRILLE, FRONT

2HC-F8309-00-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$5.49

15

BOLT

90109-06202-00

$7.49

16

BOLT, WITH WASHER

90119-06226-00

$8.49

17

BOLT, WITH WASHER

90119-06226-00

$8.49

18

COVER, UPPER 1

2HC-F3121-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$8.49

20

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

21

FENDER,FRONT

2HC-F1511-01-00

Unavailable

22

INSULATOR 1

2HC-8258K-00-00

Unavailable

23

INSULATOR 2

2HC-8259K-00-00

Unavailable

24

NUT, SPRING

90183-060A6-00

$5.49

25

NUT, SPRING

90183-060A6-00

$5.49

26

BOLT, WITH WASHER

90119-06226-00

$8.49

27

BOLT, WITH WASHER

90119-06226-00

$8.49

28

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

29

NUT, SPRING

90183-060A6-00

$5.49

30

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

31

NUT, SPRING

90183-06071-00

Unavailable

32

EXTENSION,FRONTFENDER1

2HC-K8185-01-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

34

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

35

EXTENSION,FRONTFENDER2

2HC-K8186-01-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

37

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

38

HOOD 1

2HC-F1982-00-00

Unavailable

39

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

40

COVER 1

2HC-E246A-00-00

Unavailable

41

BOLT, WITH WASHER

90119-06226-00

$8.49

42

BOLT

90109-06202-00

$7.49

43

COVER 2

2HC-E246E-00-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

$8.49

45

BOLT

90109-06202-00

$7.49

46

NUT, SPRING

90183-060A6-00

$5.49

47

COVER, DUST SEAL 1

2HC-F3383-00-00

Unavailable

48

BOLT, WITH WASHER

90119-06226-00

$8.49

49

NUT, SPRING

90183-060A6-00

$5.49

50

COVER, DUST SEAL 2

2HC-F3384-00-00

Unavailable

51

BOLT, WITH WASHER

90119-06226-00

$8.49

52

NUT, SPRING

90183-060A6-00

$5.49

53

COVER, SEAL 3

2HC-F338G-00-00

Unavailable
