Description

Price

1

MAIN SWITCH ASSY

1XD-H2510-11-00

$32.99

2

CAP, KEY

5UG-H2579-00-00

$9.99

3

CLAMP(53Y)

90464-15065-00

Unavailable

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

90464-14800-00

$3.40

6

CLAMP

90464-25826-00

Unavailable

7

CLAMP

90464-20804-00

Unavailable

8

CLAMP (8M1)

90464-30040-00

$8.49

9

CLAMP

5B4-F1338-00-00

$3.33

10

CLAMP

1NS-F1338-00-00

$3.33

11

CLAMP(JN6)

90464-40825-00

$3.05

12

CLAMP

90464-48800-00

Unavailable

13

CLAMP

90464-51800-00

$14.99

14

TERMINAL COMP.

1HP-H254B-10-00

$18.99

15

SWITCH, LAMP

2HC-82526-01-00

Unavailable

16

SWITCH, SELECT

2HC-87280-01-00

Unavailable

17

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

18

BOLT(6A1)

97095-05016-00

Unavailable

19

WASHER, PLAIN (646)

92990-05600-00

Unavailable

20

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

21

BUZZER

2MB-83383-00-00

Unavailable

22

BOLT(3JK)

97027-05020-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

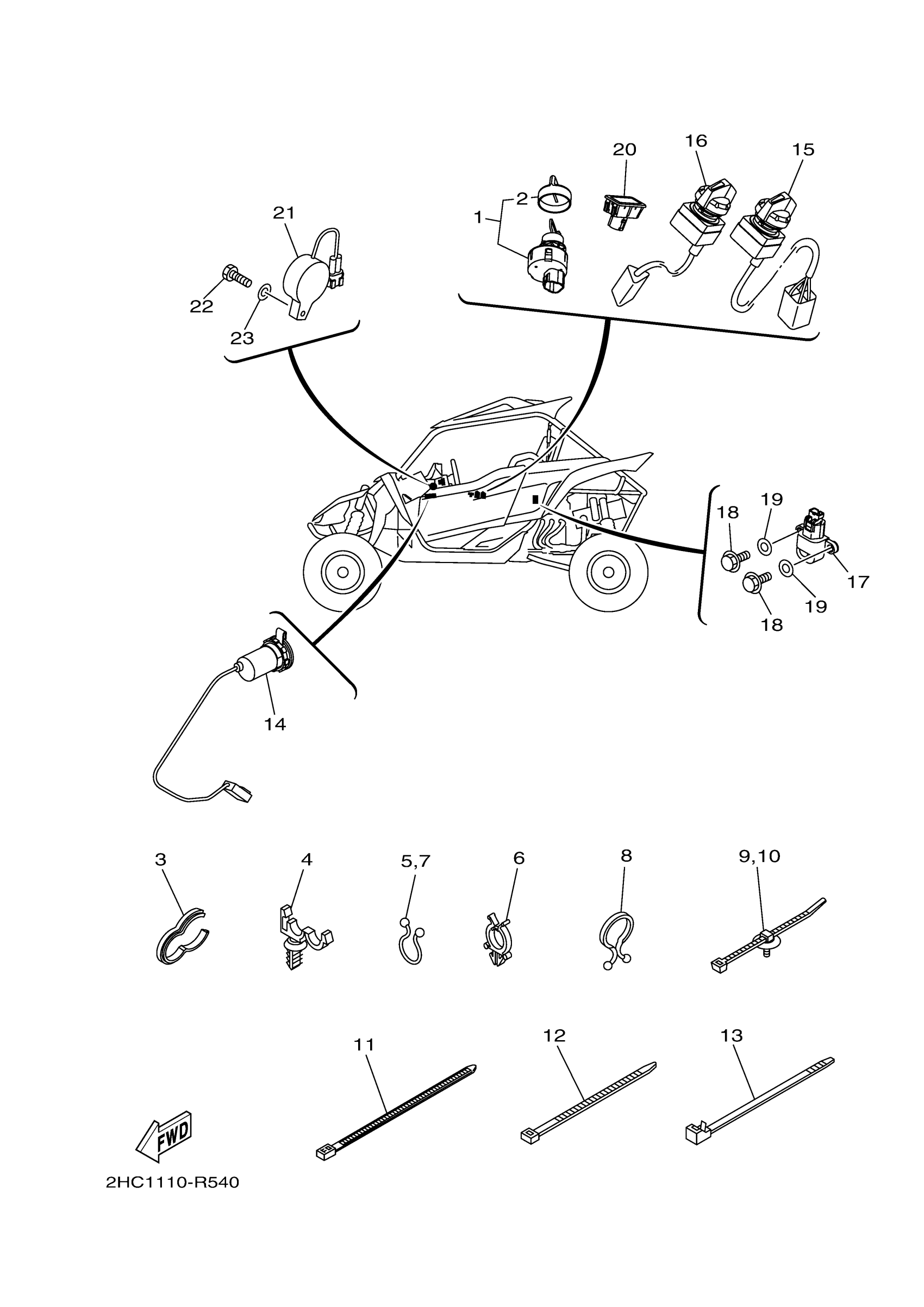

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 ELECTRICAL 3 Diagram

MAIN SWITCH ASSY

CAP, KEY

CLAMP(53Y)

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP (8M1)

CLAMP

CLAMP

CLAMP(JN6)

CLAMP

CLAMP

TERMINAL COMP.

SWITCH, LAMP

SWITCH, SELECT

LEAN ANGLE SENSOR

BOLT(6A1)

WASHER, PLAIN (646)

PILOT LIGHT ASSY

BUZZER

BOLT(3JK)

WASHER, PLAIN (646)
