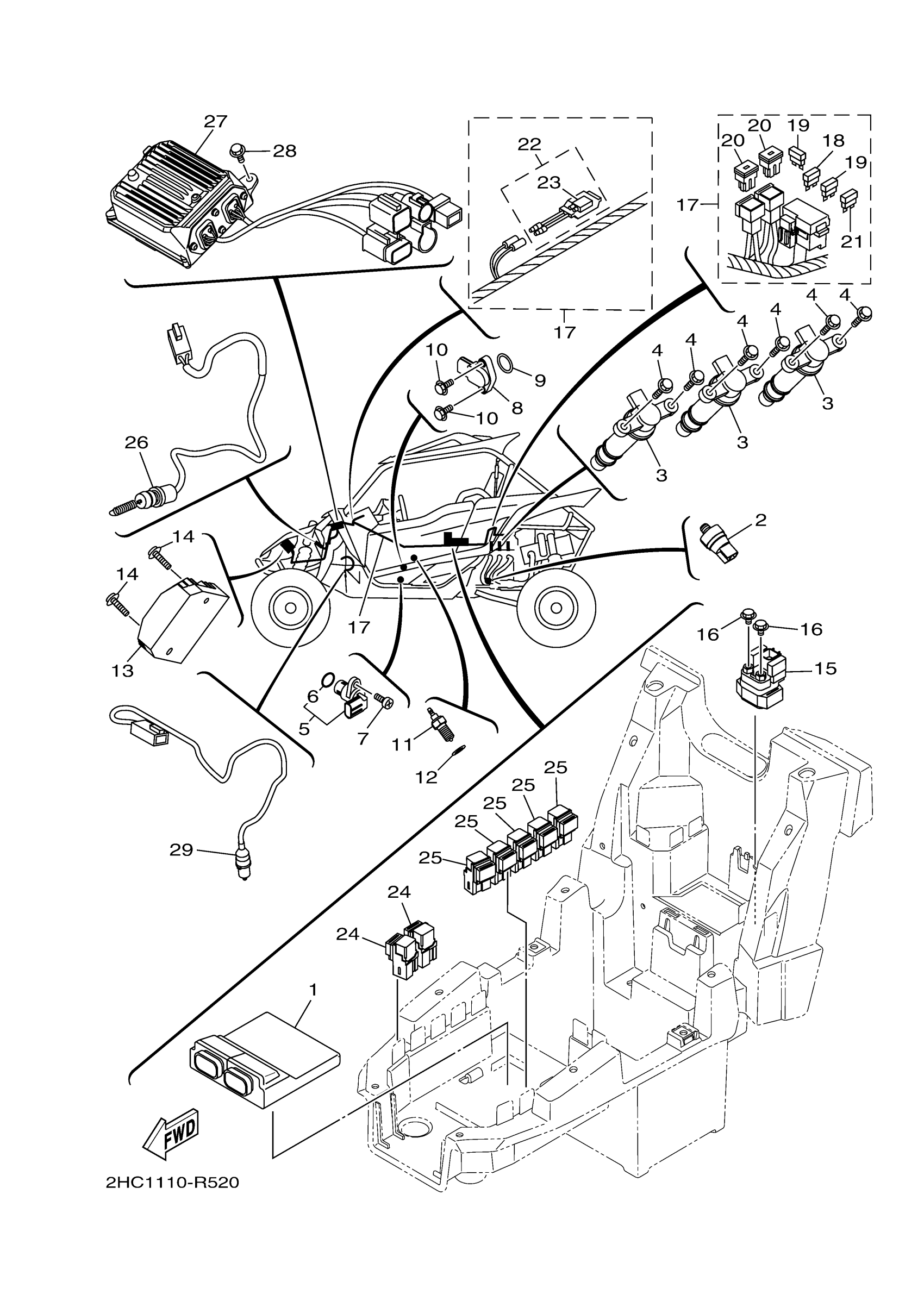

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

2HC-8591A-01-00

Unavailable

2

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

3

IGNITION COIL ASSY

2HC-82310-00-00

$94.84

4

BOLT, FLANGE

95817-06025-00

Unavailable

5

SENSOR, SPEED

1TP-83755-00-00

$62.98

6

O-RING

4D9-81168-00-00

$4.04

7

BOLT,SOCKET

91317-06016-00

$1.15

8

SENSOR, GEAR POSITION

2HC-85899-10-00

$71.13

9

O-RING

93210-17008-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$5.86

11

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

12

GASKET (1KH,1.0T)

90430-10148-00

$4.44

13

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$262.67

14

BOLT, FLANGE

90105-06833-00

$1.63

15

STARTER RELAY ASSY (RC19-077A)

4D3-81940-00-00

$85.95

16

BOLT, FLANGE

95022-06008-00

Unavailable

17

WIRE HARNESS ASSY

2HC-82590-00-00

Unavailable

18

FUSE (15A)

67F-82151-50-00

$3.48

19

. FUSE (10A)

67F-82151-40-00

$6.07

20

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

21

FUSE

5JJ-82151-60-00

Unavailable

22

CIRCUIT BREAKER ASSY

5B4-82180-00-00

Unavailable

23

THERMO SWITCH ASSY

5B4-82560-00-00

Unavailable

24

RELAY ASSY

5DM-81950-01-00

Unavailable

25

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

26

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

27

POWER STRG. CONT. UNIT ASSY

2HC-859A0-00-00

Unavailable

28

BOLT, FLANGE

95817-06016-00

Unavailable

29

SWITCH

5KM-82917-00-00

Unavailable
