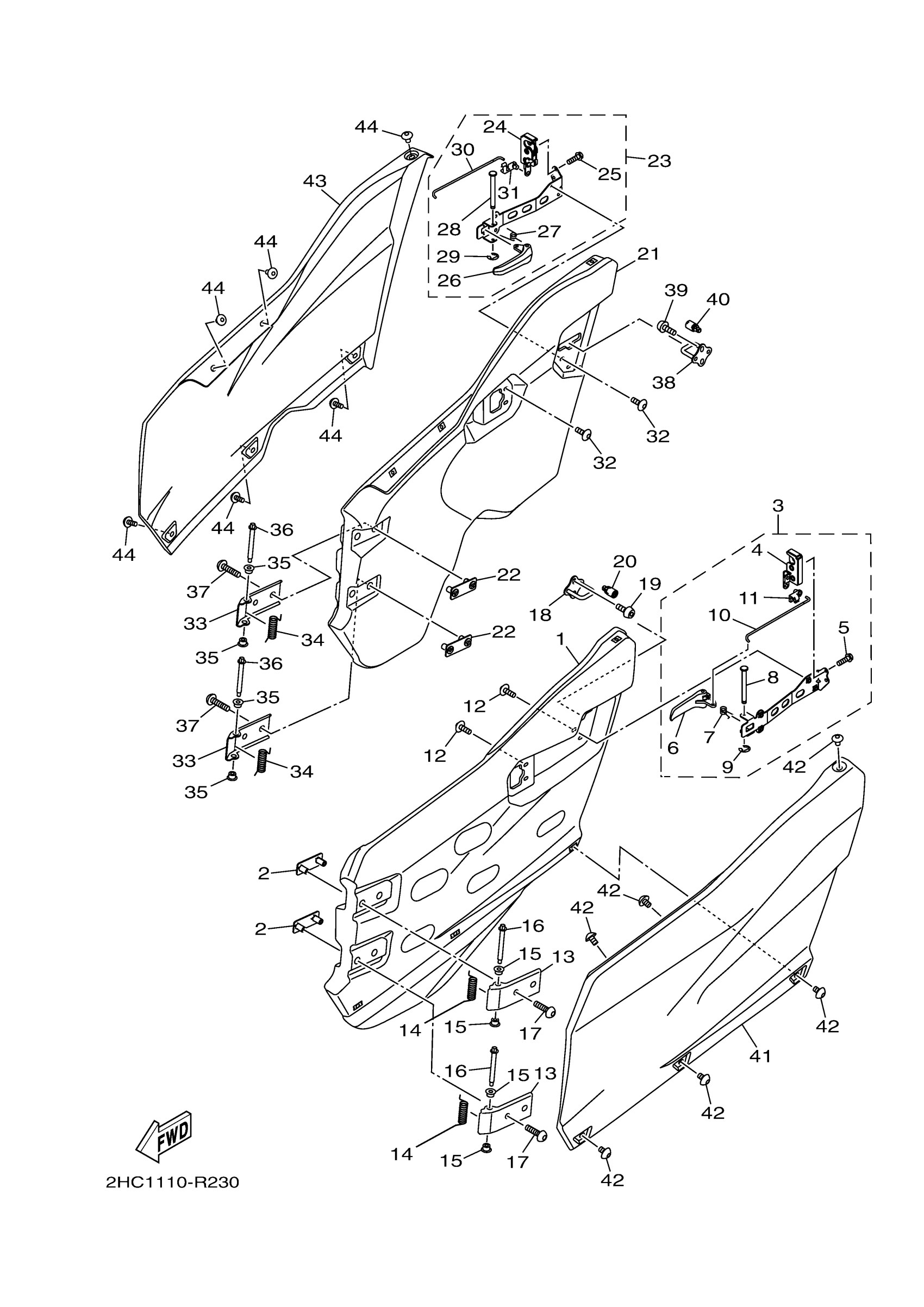

Yamaha YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016 SIDE COVER 3 Diagram

#

Description
Price

1

PNL., DOOR FR. LH

2HC-K8557-01-00

$299.23

2

NUT,PLATE

2HC-F1736-00-00

$7.33

3

BODY, LATCH 1

2HC-K7171-00-00

$46.68

4

LOCK ASSY

2HC-F16A0-00-00

Unavailable

5

BOLT, FLANGE

95817-06020-00

$2.52

6

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

7

SPRING

2HC-F1742-00-00

$2.14

8

. PIN

90249-05801-00

$2.18

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. ROD 1

2HC-F7247-00-00

$2.00

11

. CLIP, CABLE

2HC-F2805-00-00

$0.68

12

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

13

STAY, FR. DOOR 1

2HC-K8554-00-00

$5.47

14

SPRG., HINGE

2HC-F463G-01-00

$3.76

15

COLLAR

2HC-F1748-00-00

$2.00

16

BOLT

90109-068A8-00

Unavailable

17

BOLT

90109-08856-00

Unavailable

18

LOCK

2HC-F178J-00-00

Unavailable

19

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

20

PAD

2MB-F8378-00-00

Unavailable

21

PNL., DOOR FR. RH

2HC-K8558-01-00

Unavailable

22

NUT,PLATE

2HC-F1736-00-00

$7.33

23

BODY, LATCH 2

2HC-K7172-00-00

Unavailable

24

LOCK ASSY 2

2HC-F16B0-00-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

$2.52

26

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

27

SPRING

2HC-F1742-00-00

$2.14

28

. PIN

90249-05801-00

$2.18

29

CIRCLIP (EU0)

99080-04600-00

$1.70

30

. ROD 2

2HC-F7248-00-00

$2.00

31

. CLIP, CABLE

2HC-F2805-00-00

$0.68

32

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

33

STAY, FR. DOOR 1

2HC-K8554-00-00

$5.47

34

SPRG., HINGE

2HC-F463G-01-00

$3.76

35

COLLAR

2HC-F1748-00-00

$2.00

36

BOLT

90109-068A8-00

Unavailable

37

BOLT

90109-08856-00

Unavailable

38

LOCK

2HC-F178J-00-00

Unavailable

39

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

40

PAD

2MB-F8378-00-00

Unavailable

41

SIDE COVER COMP. 1

2HC-F17E0-00-00

Unavailable

42

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable

43

SIDE COVER COMP. 2

2HC-F17F0-01-00

$299.42

44

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable
