Description

Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$42.99

2

INSULATOR 3

2HC-2172S-00-00

Unavailable

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

PANEL, CONSOLE 2

2HC-F837M-00-00

$41.99

8

INSULATOR 4

2HC-2173S-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

11

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

COVER,TOP

2HC-F171A-11-00

Unavailable

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

17

NUT, SPRING

90183-060A6-00

Unavailable

18

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

19

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

20

COVER,BATTERY

2HC-F124E-12-00

Unavailable

21

COVER

2HC-F117F-10-00

Unavailable

22

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

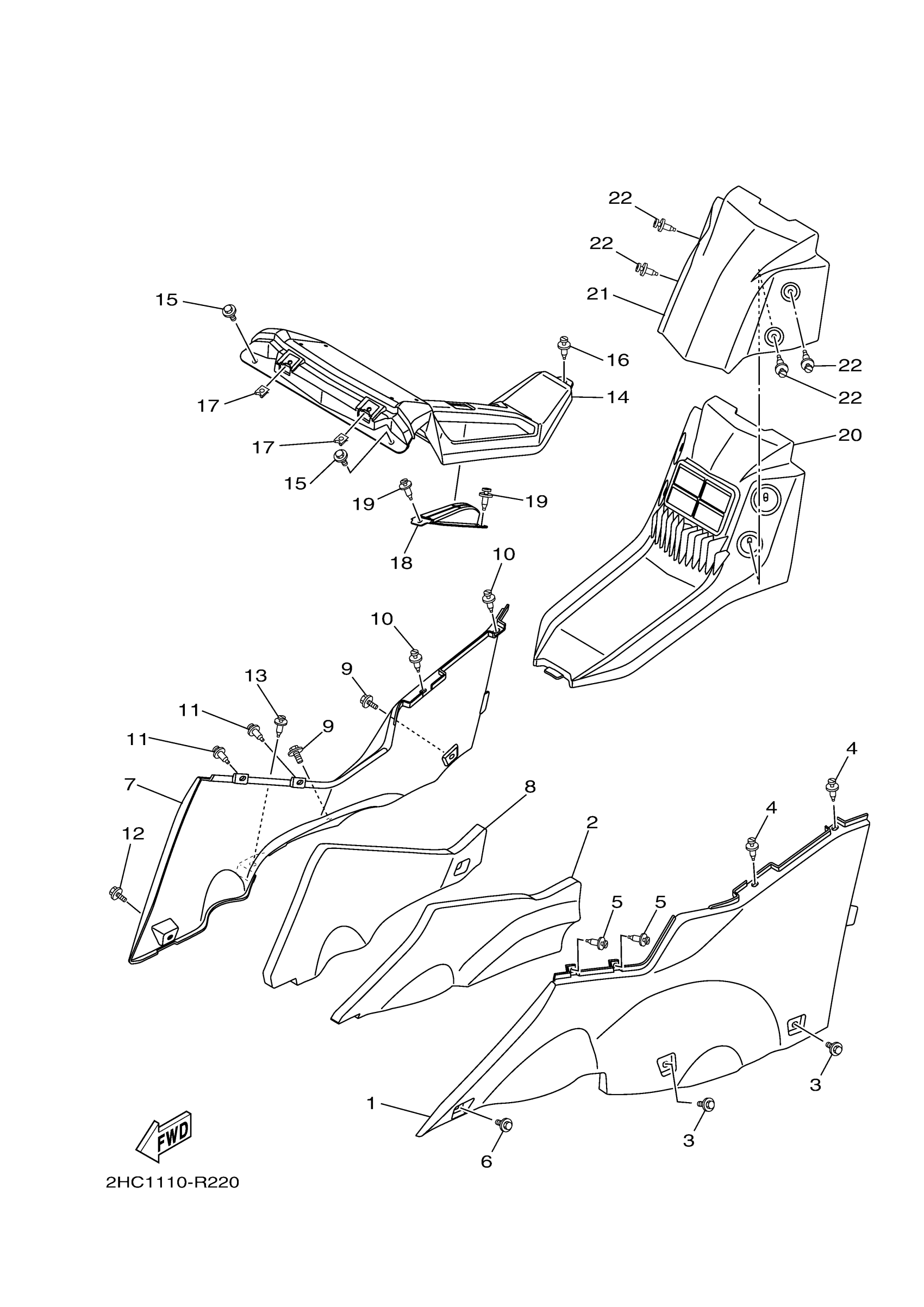

Yamaha YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016 SIDE COVER 2 Diagram

PANEL, CONSOLE 1

INSULATOR 3

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PANEL, CONSOLE 2

INSULATOR 4

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

COVER,TOP

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, HANDLE LEVE

RIVET,SPEC'L SHAPE

COVER,BATTERY

COVER

RIVET,SPEC'L SHAPE
