- YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016
REAR WHEEL

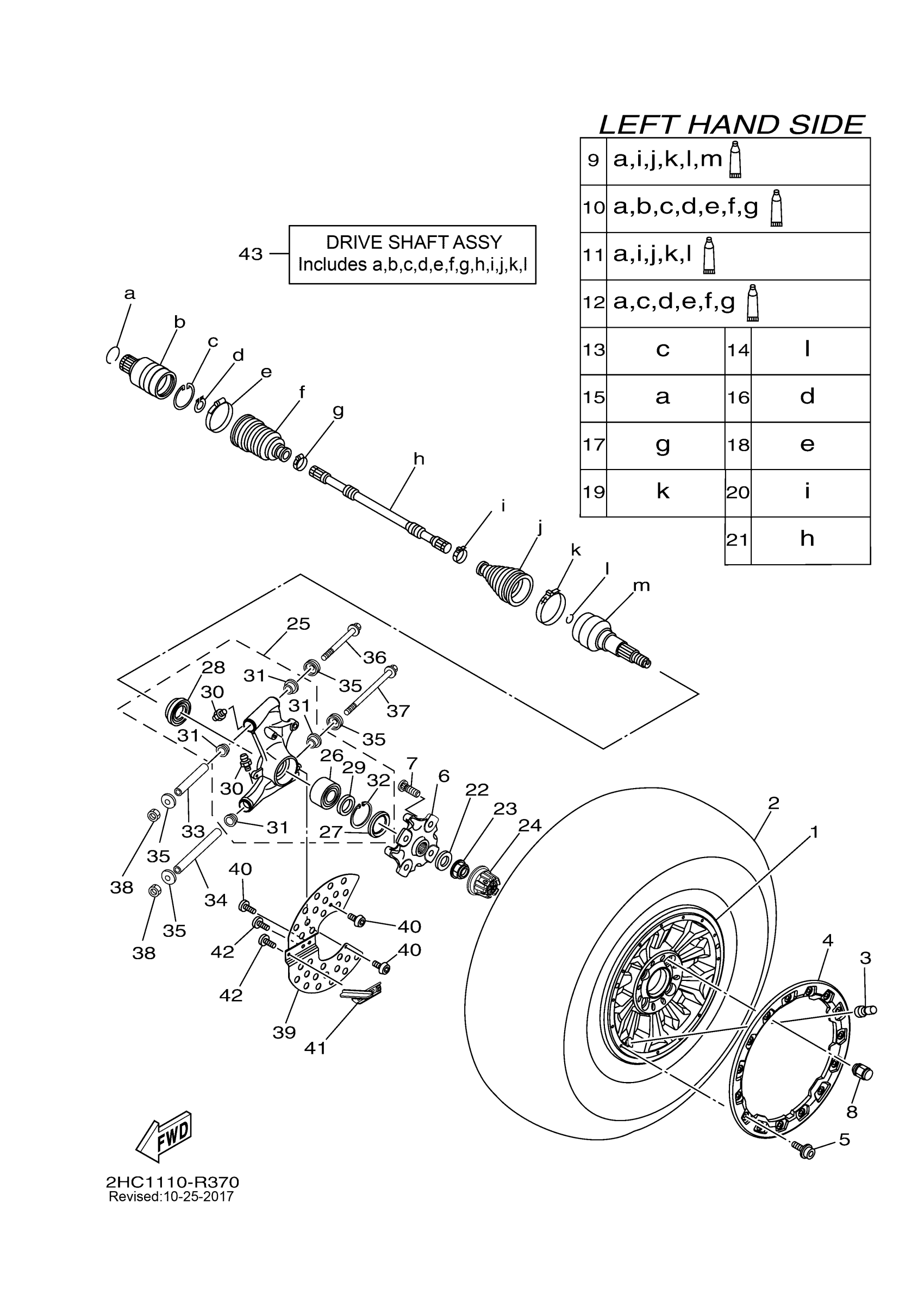

Yamaha YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016 REAR WHEEL Diagram
#
1
CAST WHEEL, REAR
2HC-F5307-51-00
$446.99
2
TIRE (27X11.00R14 MU10 6PR TL)
94111-14802-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
PLATE, LOCK
2HC-F4658-50-00
Unavailable
5
BOLT, FLANGE
90105-068C3-00
$2.92
6
HUB, FRONT
2HC-F5111-02-00
Unavailable
7
BOLT, SERRATION
90114-12005-00
$2.97
8
NUT, CROWN
90176-12800-00
$7.49
9
BALL JOINT SET
2HC-2530T-12-00
Unavailable
10
DOUBLE OFF SET JOINT
2HC-2530V-00-00
$426.99
11
BOOT SET (BALL JOINT)
2HC-2530X-13-00
$49.99
12
BOOT SET(DOUBLE OFFSET JOINT)
2HC-2530Y-01-00
$53.99
13
CLIP, SPRING
2HC-2536E-00-00
$4.99
14
RING 1
16B-25185-00-00
$4.94
15
CLIP, SPRING
16B-2536E-00-00
$4.63
16
SNAP RING
2HC-2512J-00-00
Unavailable
17
BAND
2HC-25719-00-00
Unavailable
18
BAND
2HC-26293-00-00
Unavailable
19
BOOT BAND (SMALL)
2HC-2512G-10-00
Unavailable
20
BAND
2HC-26397-00-00
Unavailable
21
SHAFT
2HC-259A2-00-00
Unavailable
22
WASHER, PLATE
90201-25023-00
Unavailable
23
NUT
90179-24006-00
Unavailable
24
CAP, WHEEL
2HC-F512A-00-00
Unavailable
25
REAR KNUCKLE ASSY
2HC-F530F-02-00
Unavailable
26
BEARING
93305-00603-00
Unavailable
27
OIL SEAL
93106-42801-00
Unavailable
28
OIL SEAL
93106-38800-00
Unavailable
29
COLLAR
90387-30013-00
Unavailable
30
NIPPLE, GREASE
93700-06M03-00
Unavailable
31
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
32
CIRCLIP (70R)
93420-72065-00
Unavailable
33
COLLAR
90387-12060-00
Unavailable
34
COLLAR
90387-12061-00
Unavailable
35
COVER, THRUST 1
1XD-23517-01-00
Unavailable
36
BOLT, FLANGE
90105-12066-00
Unavailable
37
BOLT, FLANGE
90105-12097-00
Unavailable
38
NUT, SELF-LOCKING
90185-12007-00
Unavailable
39
RING, WHEEL RR. 1
2HC-F534C-00-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-06096-00
Unavailable
41
PLATE, GUIDE 1
2HC-F2341-00-00
Unavailable
42
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
43
REAR DRIVE SHAFT A
2HC-2531H-13-00
Unavailable
