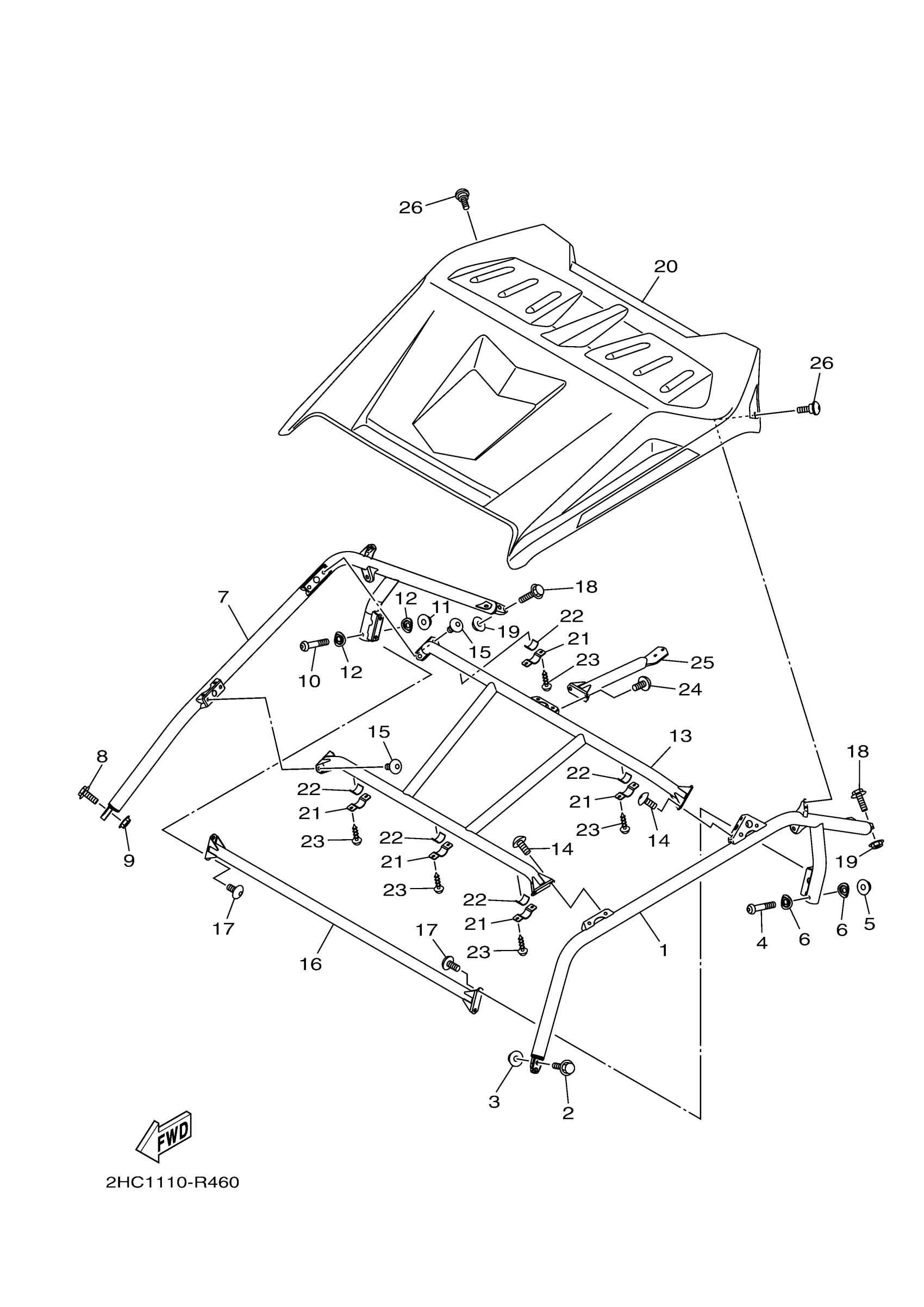

Yamaha YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2HC-K831A-00-00

$174.97

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10060-00

$2.91

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

2HC-K831E-00-00

$195.11

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10060-00

$2.91

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

2HC-K8392-00-00

$83.91

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

16

ROOF SUPPORT ASSY

2HC-K830A-00-00

Unavailable

17

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

18

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

19

NUT, SELF-LOCKING

90185-10011-00

$3.67

20

COVER, SUN ROOF

2HC-K8314-00-00

$389.99

21

CLAMP,SUPPORT

2HC-K8366-01-00

Unavailable

22

DAMPER

5UG-K7588-01-00

Unavailable

23

SCREW, TAPPING

90167-06800-00

Unavailable

24

ROOF SUPPORT ASSY

2HC-K830B-00-00

Unavailable

25

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

26

BOLT

90109-06307-00

Unavailable
