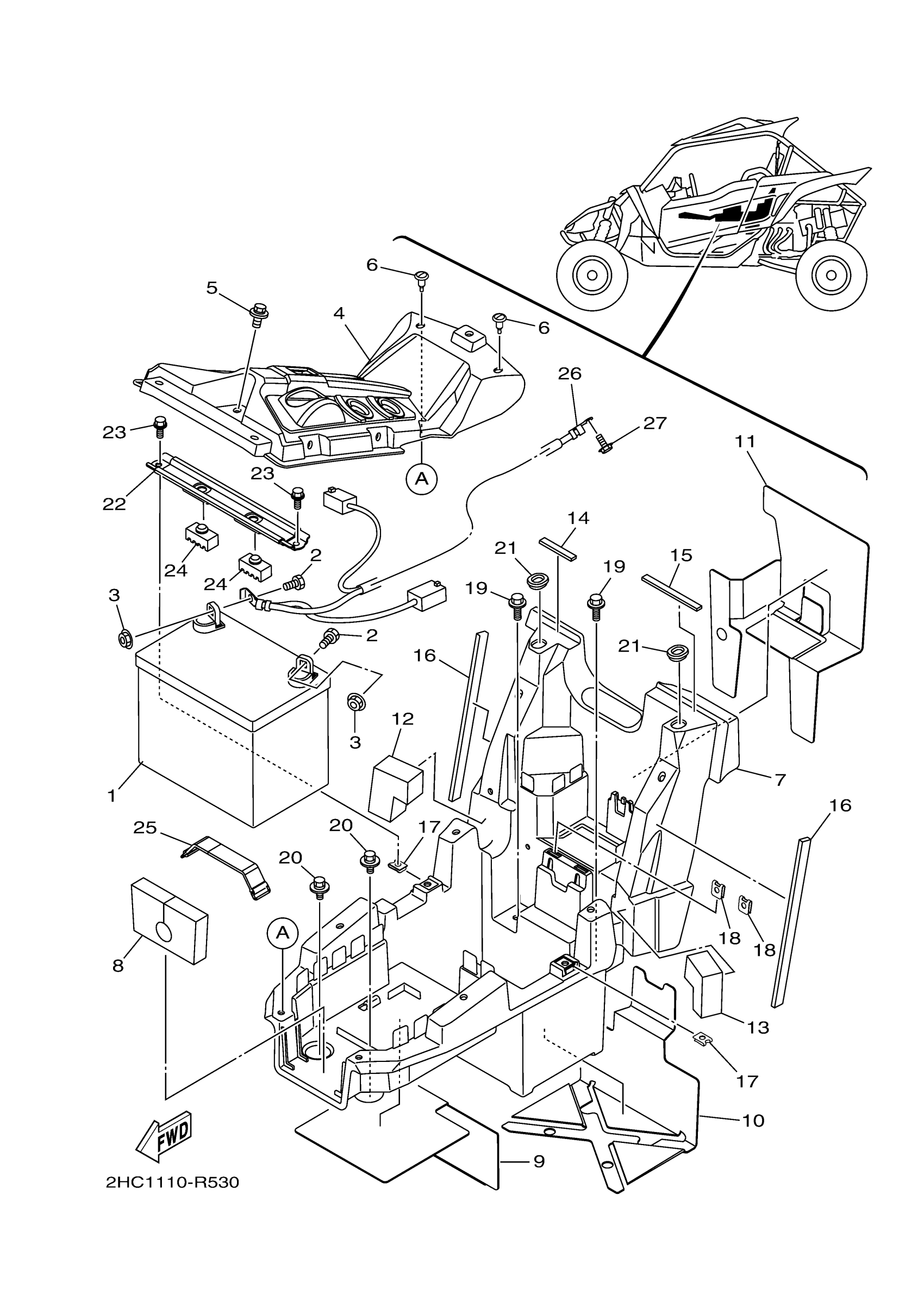

Yamaha YXZ10YPSGY (YXZ1000 EPS SPECIAL EDITION) 2HC1 2016 ELECTRICAL 2 Diagram

#

Description
Price

1

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

2

BOLT(6TD)

97080-08020-00

$2.28

3

NUT

90179-08015-00

Unavailable

4

PANEL, SWITCH

2HC-H2565-00-00

$34.83

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

7

BOX, BATTERY 1

2HC-H212B-01-00

$25.62

8

INSU.

2HC-8233W-00-00

$4.29

9

INSULATOR 1

2HC-8253E-00-00

Unavailable

10

INSULATOR 2

2HC-8253F-00-00

$25.45

11

INSULATOR

2HC-8254E-00-00

$25.20

12

SEAL 3

2HC-2173M-00-00

Unavailable

13

SEAL 4

2HC-2173N-00-00

$4.02

14

DAMPER, PLATE

90520-05020-00

$1.15

15

DAMPER, PLATE

90520-05021-00

Unavailable

16

DAMPER, PLATE

90520-05022-00

Unavailable

17

NUT, SPRING

90183-060A6-00

Unavailable

18

NUT, SPRING

90183-05008-00

Unavailable

19

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

20

BOLT, WITH WASHER

90119-06152-00

$2.56

21

GROMMET(4DN)

90480-01558-00

Unavailable

22

BRACKET, BATTERY

2HC-H2128-00-00

Unavailable

23

BOLT, FLANGE

95022-06014-00

Unavailable

24

PAD, SEAT

3C3-24741-00-00

Unavailable

25

BAND, BATTERY

2T4-82131-00-00

Unavailable

26

WIRE, MINUS LEAD

2HC-82116-00-00

Unavailable

27

BOLT, FLANGE

95812-06014-00

Unavailable
