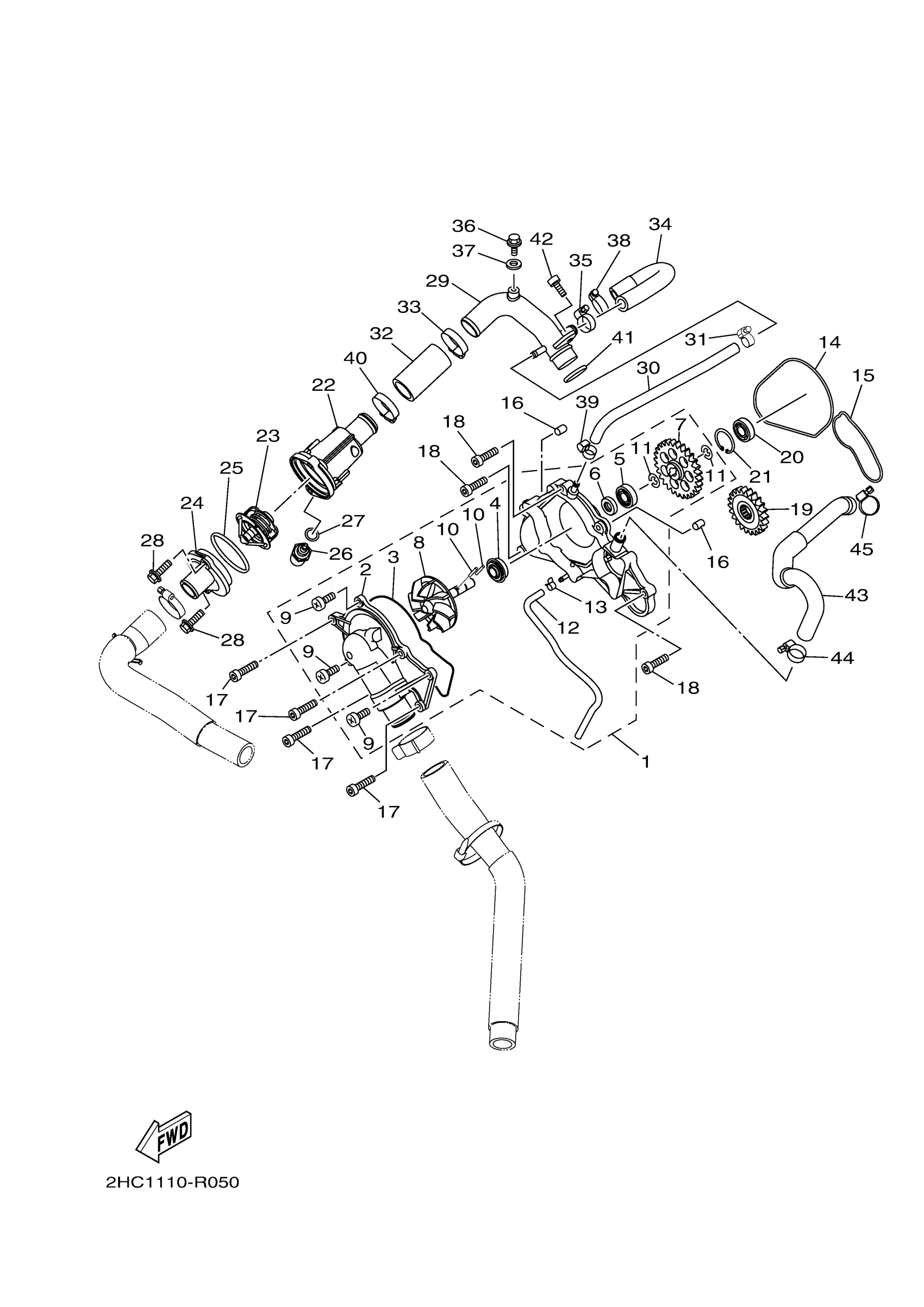

Yamaha YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2HC-12420-00-00

$215.99

2

. COVER, HOUSING

2HC-12422-00-00

Unavailable

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

$17.49

4

SEAL, MECHANICAL

8ES-12438-00-00

$45.99

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$11.49

7

GEAR, IMPELLER SHAFT

8ES-12459-01-00

Unavailable

8

IMPELLER SHAFT ASSY

8ES-12450-01-00

$37.99

9

SCREW, PAN HEAD

98580-06016-00

Unavailable

10

PIN, DOWEL (409)

93604-16092-00

$3.18

11

CIRCLIP(2R6)

99001-08600-00

$8.49

12

HOSE 1

2HC-1243A-00-00

$4.94

13

CLIP(42X)

90467-07093-00

$3.35

14

GASKET

8ES-12435-00-00

$15.49

15

GASKET

8ES-12434-00-00

$4.63

16

PIN, DOWEL

99530-08012-00

Unavailable

17

TORNILLO ALLEN

91312-06040-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

GEAR, DRIVE

8ES-12436-00-00

Unavailable

20

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

21

CIRCLIP(2FL)

93420-26077-00

Unavailable

22

HOUSING, THERMOSTAT

2HC-12417-00-00

Unavailable

23

THERMOSTAT

5LP-12411-01-00

Unavailable

24

COVER, THERMOSTAT

4NX-12413-00-00

Unavailable

25

O-RING (620)

93210-49046-00

Unavailable

26

THERMOSENSOR ASSY

5YP-85790-00-00

Unavailable

27

WASHER, PLATE

90201-12790-00

Unavailable

28

BOLT, FLANGE

95022-06020-00

Unavailable

29

PIPE 2

B5H-12482-00-00

Unavailable

30

PIPE 5

8GL-12485-00-00

Unavailable

31

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

32

HOSE 7

8FA-12551-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-35001-00

Unavailable

34

HOSE 6

2HC-12589-01-00

Unavailable

35

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

36

BOLT, FLANGE

95022-06012-00

Unavailable

37

GASKET 256113960000

90430-06014-00

Unavailable

38

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

39

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

40

HOSE CLAMP ASSY

90450-35001-00

Unavailable

41

O-RING

93210-235A1-00

Unavailable

42

BOLT, HEXAGON SOCKET HEAD

90110-06310-00

Unavailable

43

HOSE 5

2HC-12588-01-00

Unavailable

44

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

45

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable
