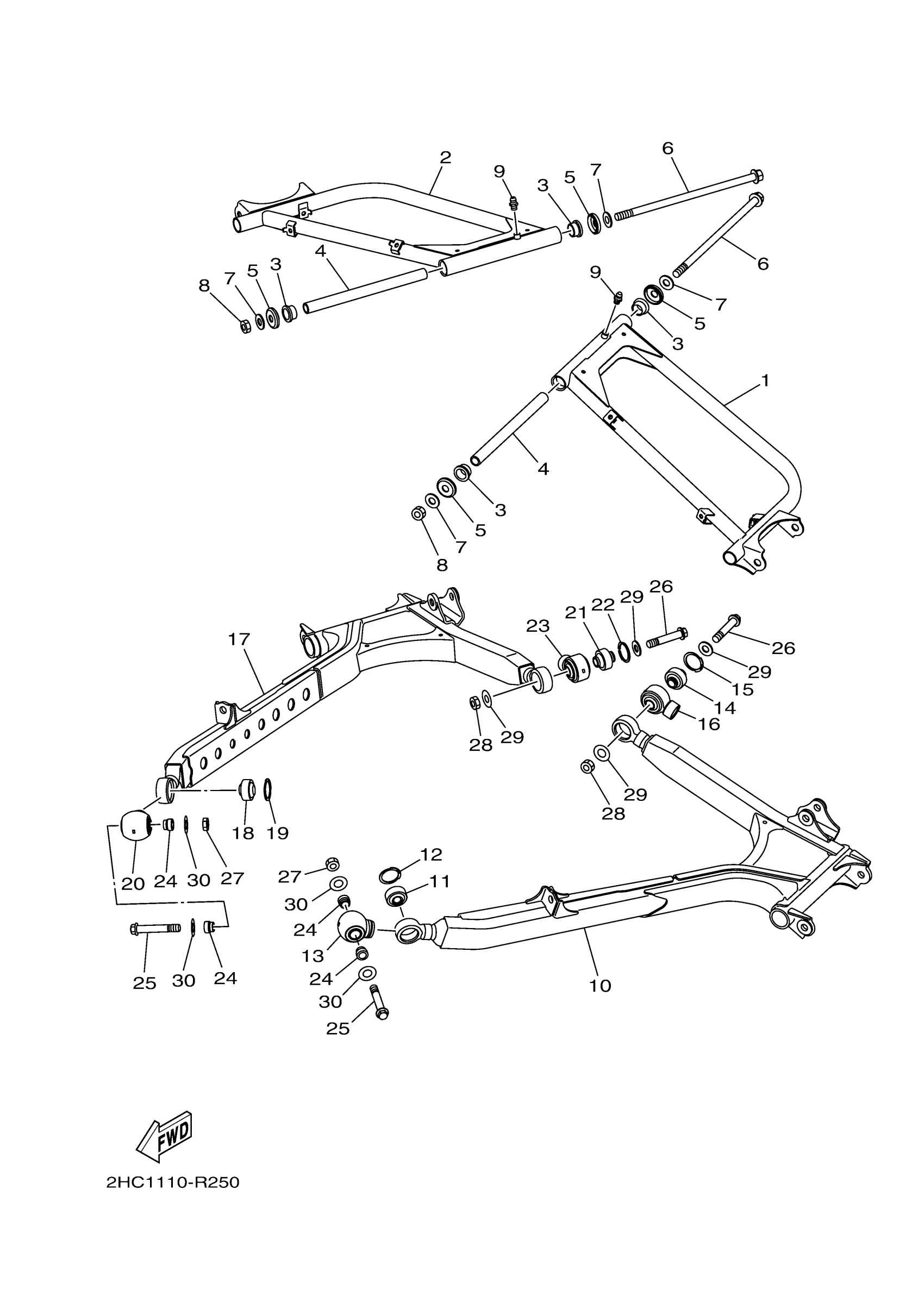

Yamaha YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP., 1

2HC-F2104-30-00

$73.05

2

RR. UPR. ARM COMP. 2

2HC-F2105-30-00

$73.05

3

BUSH, SOLID

90381-18003-00

$5.59

4

COLLAR

90387-12062-00

$27.72

5

COVER, THRUST 1

1XD-23517-01-00

$7.66

6

BOLT, FLANGE

90105-12098-00

$17.73

7

WASHER, PLATE

90201-12045-00

$4.81

8

NUT, SELF-LOCKING

90185-12007-00

$8.33

9

NIPPLE, GREASE

93700-06M03-00

$7.40

10

RR. LWR. ARM COMP., 1

2HC-F2106-31-00

Unavailable

11

BALL JOINT 1

2HC-23549-00-00

$112.62

12

CIRCLIP(47Y)

99009-35500-00

$5.75

13

SEAL, DUST 1

2HC-23527-01-00

$25.23

14

JOINT, UNIVERSAL 2

2HC-23845-00-00

$74.73

15

CIRCLIP(47Y)

99009-35500-00

$5.75

16

SEAL, DUST 2

2HC-23528-00-00

Unavailable

17

RR. LWR. ARM COMP., 2

2HC-F2107-31-00

Unavailable

18

BALL JOINT 1

2HC-23549-00-00

$112.62

19

CIRCLIP(47Y)

99009-35500-00

$5.75

20

SEAL, DUST 1

2HC-23527-01-00

$25.23

21

JOINT, UNIVERSAL 2

2HC-23845-00-00

$74.73

22

CIRCLIP(47Y)

99009-35500-00

$5.75

23

SEAL, DUST 2

2HC-23528-00-00

Unavailable

24

COLLAR 1

2HC-23754-00-00

Unavailable

25

BOLT, FLANGE

90105-12095-00

Unavailable

26

BOLT, FLANGE

90105-12100-00

Unavailable

27

NUT, SELF-LOCKING

90185-12007-00

$8.33

28

NUT, SELF-LOCKING

90185-12007-00

$8.33

29

WASHER, PLATE

90201-12045-00

$4.81

30

WASHER, PLATE

90201-12045-00

$4.81
