- YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016
INTAKE

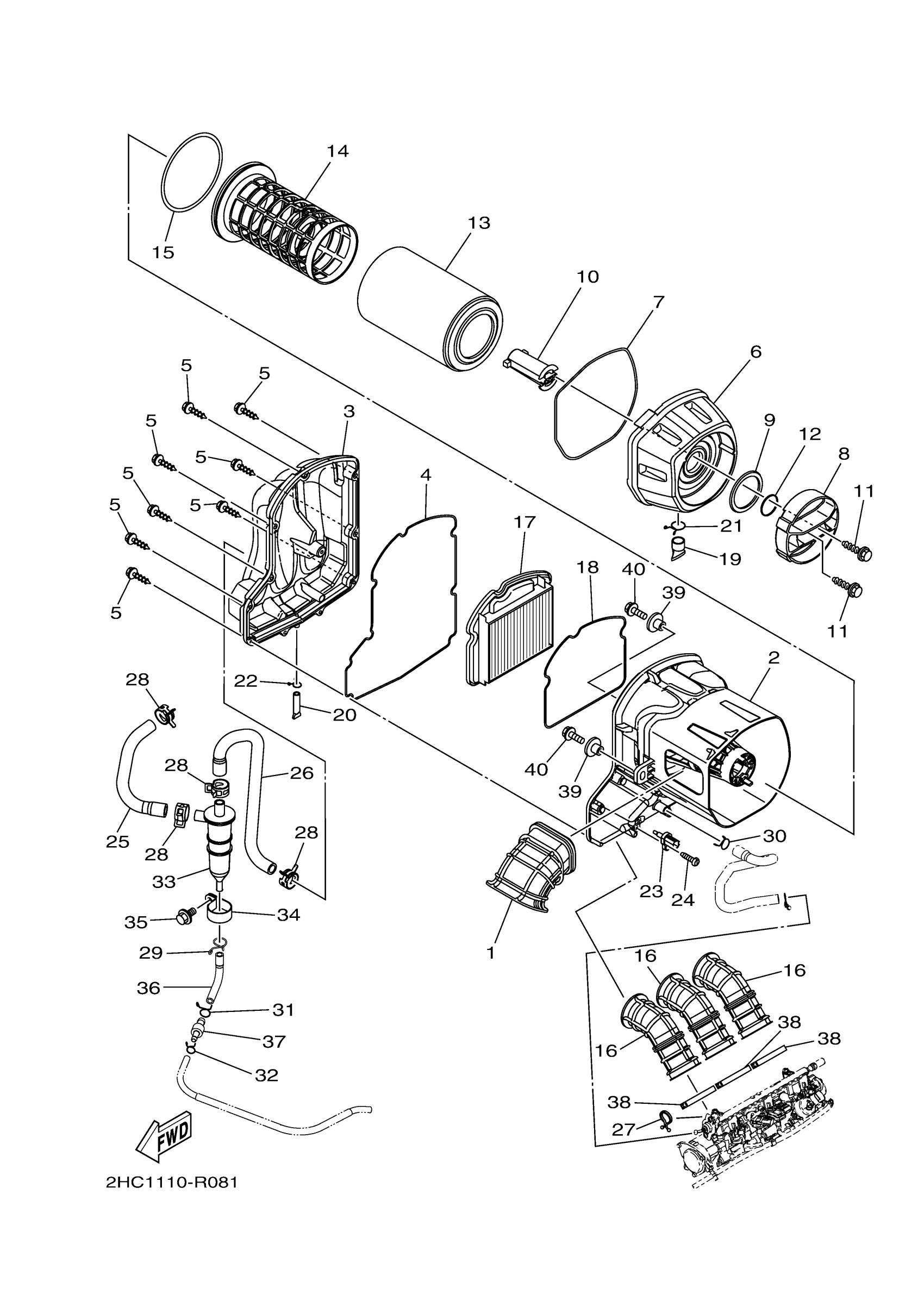

Yamaha YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016 INTAKE Diagram
#
1
DUCT
2HC-E4437-01-00
$62.99
2
CASE,AIR CLEANER 1
2HC-E4411-01-00
$141.99
3
CASE, AIR CLEANER
2HC-E4421-00-00
$16.99
4
SEAL
2HC-E4452-00-00
$4.32
5
SCREW
2HC-E4429-00-00
$1.92
6
CAP, CLEANER CASE
2HC-E4412-00-00
$10.99
7
SEAL
2HC-E4457-01-00
$4.58
8
CAP, CLEANER CASE
2HC-E4422-00-00
$7.49
9
GASKET
2HC-E4126-00-00
$3.07
10
LEVER 1
2HC-E445B-00-00
$4.32
11
SCREW
2HC-E4429-00-00
$1.92
12
SEAL
2HC-E4476-00-00
$2.44
13
ELEMENT, AIR CLEAN
2HC-E4451-00-00
$79.99
14
GUIDE
2HC-E4458-00-00
$8.99
15
SEAL
2HC-E4467-00-00
$2.50
16
JOINT, AIR CLEANER
2HC-E4453-00-00
Unavailable
17
ELEMENT, AIR CLEAN
2HC-E4461-00-00
Unavailable
18
SEAL
2HC-E4462-00-00
Unavailable
19
PIPE, DRAIN
B16-E443E-00-00
Unavailable
20
PIPE, DRAIN
4ST-E443E-00-00
Unavailable
21
CLIP
90467-220A1-00
Unavailable
22
CLIP
90467-110A3-00
Unavailable
23
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
24
SCREW, PAN TAP.2 SLIT
97707-50620-00
Unavailable
25
PIPE, OIL TANK BRE
2HC-F1745-00-00
Unavailable
26
PIPE, OIL TANK
2HC-F174N-00-00
Unavailable
27
CLAMP
90464-25267-00
Unavailable
28
CLIP(34X)
90467-22097-00
Unavailable
29
CLIP
90467-140A4-00
Unavailable
30
CLIP
90467-180A1-00
Unavailable
31
CLIP(6M6)
90467-13M13-00
Unavailable
32
CLIP
90467-110A3-00
Unavailable
33
BREATHER ASSY
6TA-15370-00-00
Unavailable
34
HOLDER
6TA-15378-00-00
Unavailable
35
BOLT, FLANGE
95814-08016-00
Unavailable
36
PIPE, BREATHER 2
2HC-11167-00-00
Unavailable
37
PIPE, JOINT 2
67F-24377-00-00
Unavailable
38
HOSE CLAMP ASSY
90450-56007-00
Unavailable
39
COLLAR
90387-07051-00
Unavailable
40
BOLT, FLANGE
95817-06020-00
Unavailable
