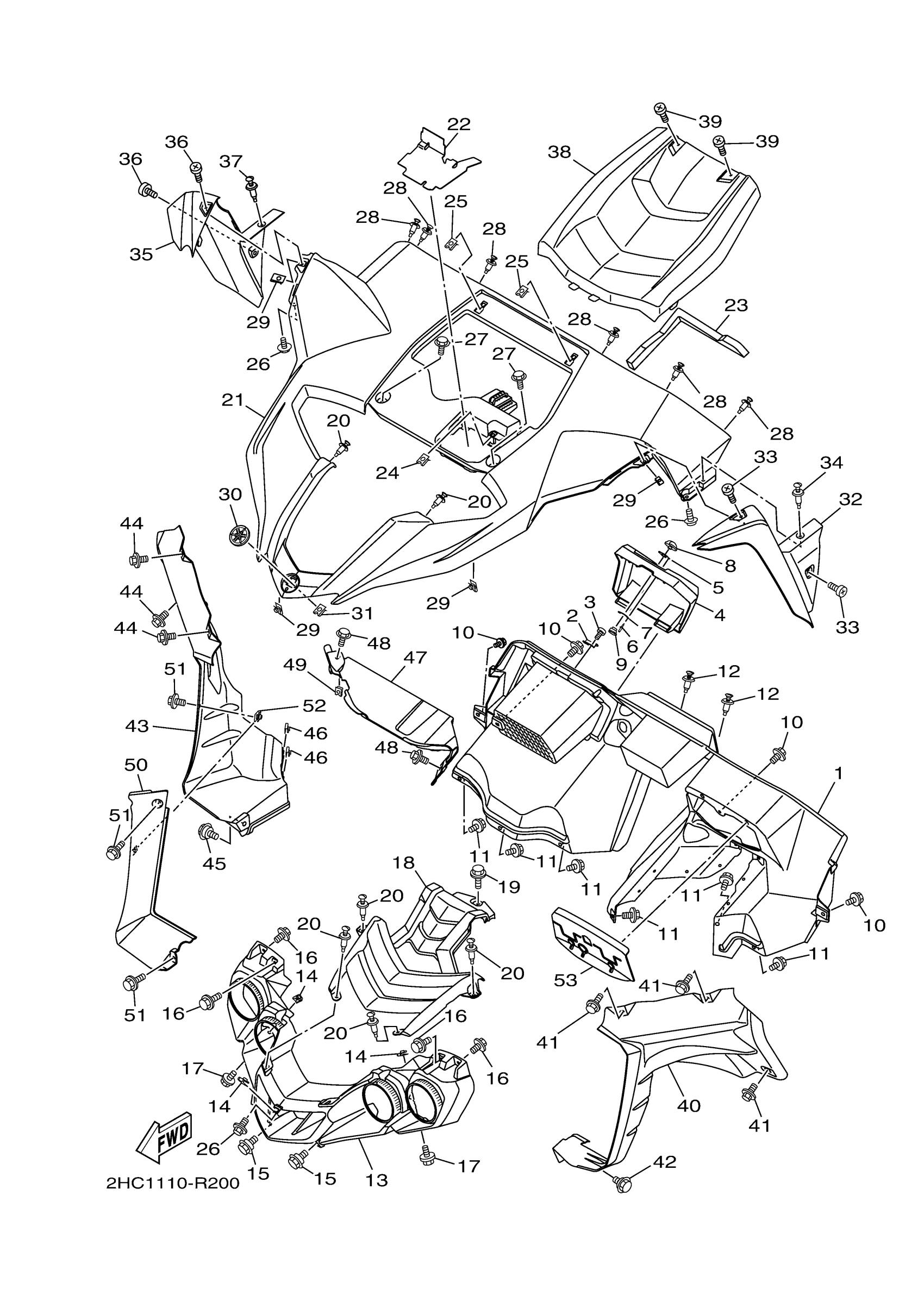

Yamaha YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2HC-K7711-01-00

$125.21

2

BRACKET, COVER

1XD-F139T-00-00

$2.26

3

SCREW, TAPPING

90164-04800-00

$0.44

4

LID

2HC-F160F-00-00

$53.99

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$6.17

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.77

8

LOCK 1

1XD-2837G-00-00

$3.26

9

LOCK 2

1XD-2837H-00-00

$2.30

10

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

GRILLE, FRONT

2HC-F8309-00-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$3.90

15

BOLT

90109-06202-00

$2.46

16

BOLT, WITH WASHER

90119-06226-00

$2.12

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

COVER, UPPER 2

2HC-F3131-00-00

$192.50

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

21

FRONT FENDER COMP.

2HC-F1510-10-00

$619.29

22

INSULATOR 1

2HC-8258K-00-00

Unavailable

23

INSULATOR 2

2HC-8259K-00-00

Unavailable

24

NUT, SPRING

90183-060A6-00

$3.90

25

NUT, SPRING

90183-060A6-00

$3.90

26

BOLT, WITH WASHER

90119-06226-00

$2.12

27

BOLT, WITH WASHER

90119-06226-00

$2.12

28

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

29

NUT, SPRING

90183-060A6-00

$3.90

30

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

31

NUT, SPRING

90183-06071-00

$0.50

32

FLAP, FRONT FENDER

2HC-K8187-10-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

34

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

35

FLAP, FRONT FENDER

2HC-K818K-10-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

37

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

38

HOOD 2

2HC-F1983-00-00

Unavailable

39

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

40

COVER 1

2HC-E246A-00-00

Unavailable

41

BOLT, WITH WASHER

90119-06226-00

$2.12

42

BOLT

90109-06202-00

$2.46

43

COVER 2

2HC-E246E-00-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

$2.12

45

BOLT

90109-06202-00

$2.46

46

NUT, SPRING

90183-060A6-00

$3.90

47

COVER, DUST SEAL 1

2HC-F3383-00-00

Unavailable

48

BOLT, WITH WASHER

90119-06226-00

$2.12

49

NUT, SPRING

90183-060A6-00

$3.90

50

COVER, DUST SEAL 2

2HC-F3384-00-00

Unavailable

51

BOLT, WITH WASHER

90119-06226-00

$2.12

52

NUT, SPRING

90183-060A6-00

$3.90

53

COVER, SEAL 3

2HC-F338G-00-00

$11.12
