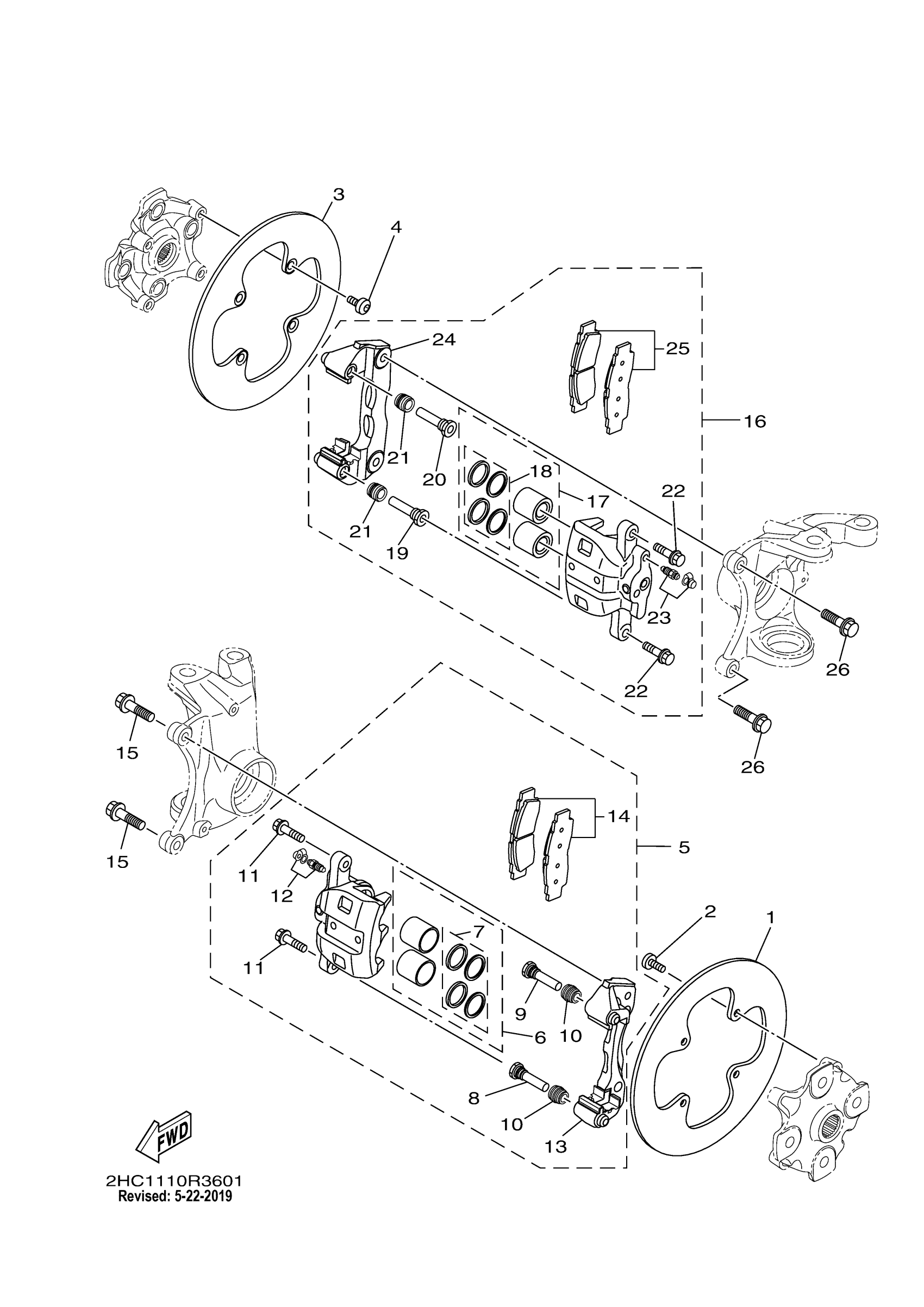

Yamaha YXZ10YPSGS (YXZ1000 EPS SPECIAL EDITION) 2HC8 2016 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$52.60

2

BOLT

90109-08077-00

$2.69

3

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$52.60

4

BOLT

90109-08077-00

$2.69

5

CALIPER ASSY (LEFT)

2HC-2580T-00-00

$509.36

6

PISTON ASSY, CALIPER

1XD-25802-00-00

$41.71

7

CALIPER SEAL KIT

1XD-25803-00-00

$39.53

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$3.63

11

BOLT, FITTING

2HC-25833-00-00

$1.78

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

BRACKET, CALIPER

2HC-25819-00-00

$89.65

14

BRAKE PAD KIT

2HC-25805-00-00

$35.88

15

BOLT, FLANGE

90105-10405-00

$4.40

16

CALIPER ASSY (RIGHT)

2HC-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

1XD-25802-00-00

$41.71

18

CALIPER SEAL KIT

1XD-25803-00-00

$39.53

19

BOLT

2HC-25926-00-00

Unavailable

20

BOLT

2HC-25926-10-00

Unavailable

21

BOOT, CALIPER

2HC-25917-00-00

$3.63

22

BOLT, FITTING

2HC-25833-00-00

$1.78

23

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

24

BRACKET, CALIPER

2HC-25819-00-00

$89.65

25

BRAKE PAD KIT

2HC-25805-00-00

$35.88

26

BOLT, FLANGE

90105-10405-00

$4.40
