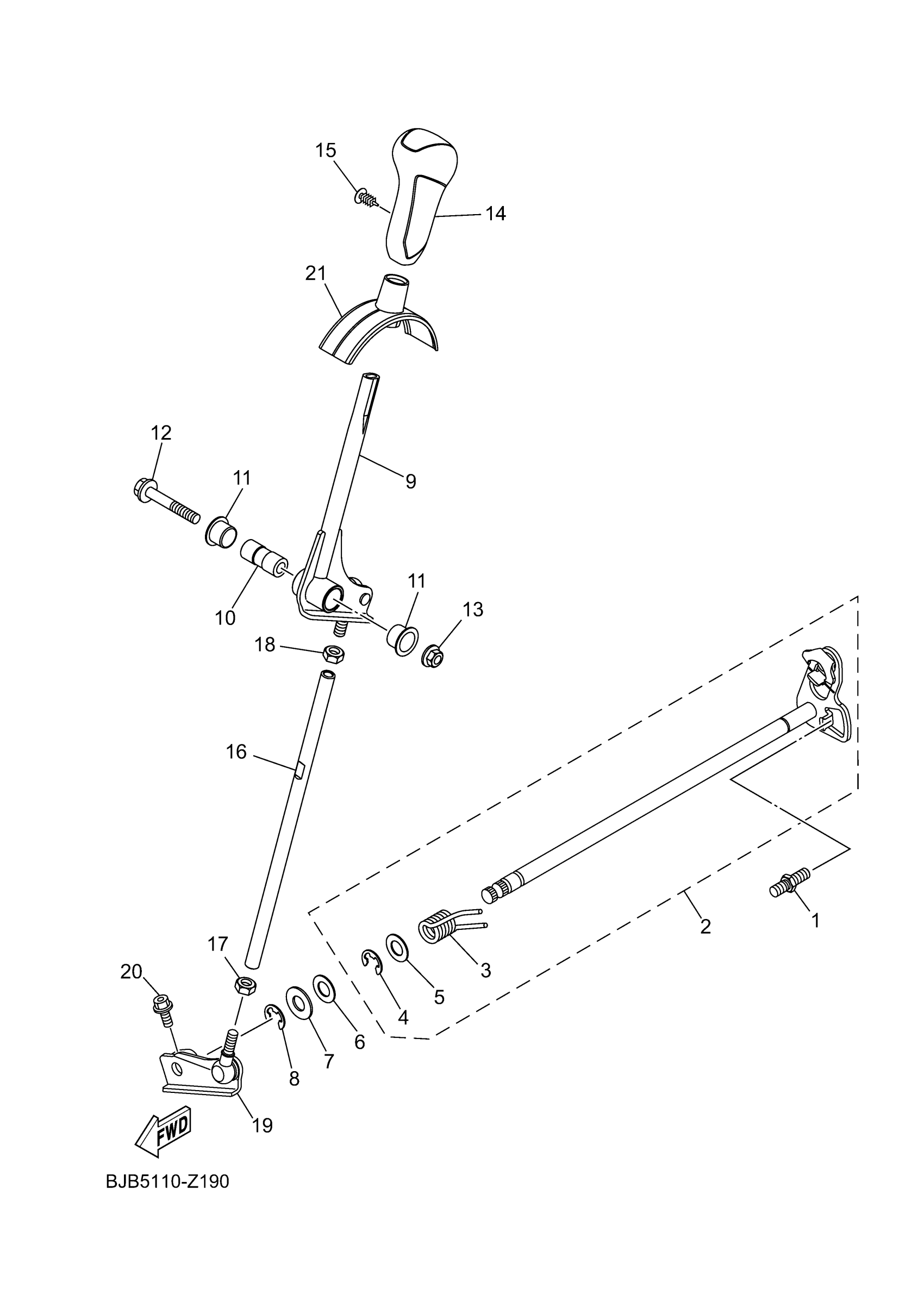

Yamaha YXZ10YMXSL (YXZ1000R) BJB9 2025 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SCREW

BDW-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

BDW-18101-00-00

Unavailable

3

SPRING, TORSION

90508-32144-00

$4.02

4

CIRCLIP

99002-10600-00

$5.86

5

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

6

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

7

WASHER, PLATE (353)

90201-12575-00

$5.75

8

CIRCLIP

99002-10600-00

$5.86

9

LEVER COMP. 1

2HC-18190-01-00

$82.00

10

COLLAR

90387-08107-00

$10.24

11

BUSH, SOLID

90381-15001-00

$3.82

12

BOLT, FLANGE

95817-08050-00

$2.93

13

NUT, SELF-LOCKING

95602-08200-00

$2.73

14

KNOB, SHIFT LEVER

2HC-E8174-00-00

Unavailable

15

RIVET(81E)

90269-05055-00

$6.54

16

ROD, SHIFT

2HC-18115-01-00

Unavailable

17

NUT(1KT)

90170-08358-00

Unavailable

18

. NUT

95380-08700-00

$3.05

19

ARM, SHIFT 2

BJB-18169-00-00

Unavailable

20

BOLT, FLANGE

90105-06142-00

Unavailable

21

GUIDE, SHIFT

2HC-E8172-00-00

Unavailable
