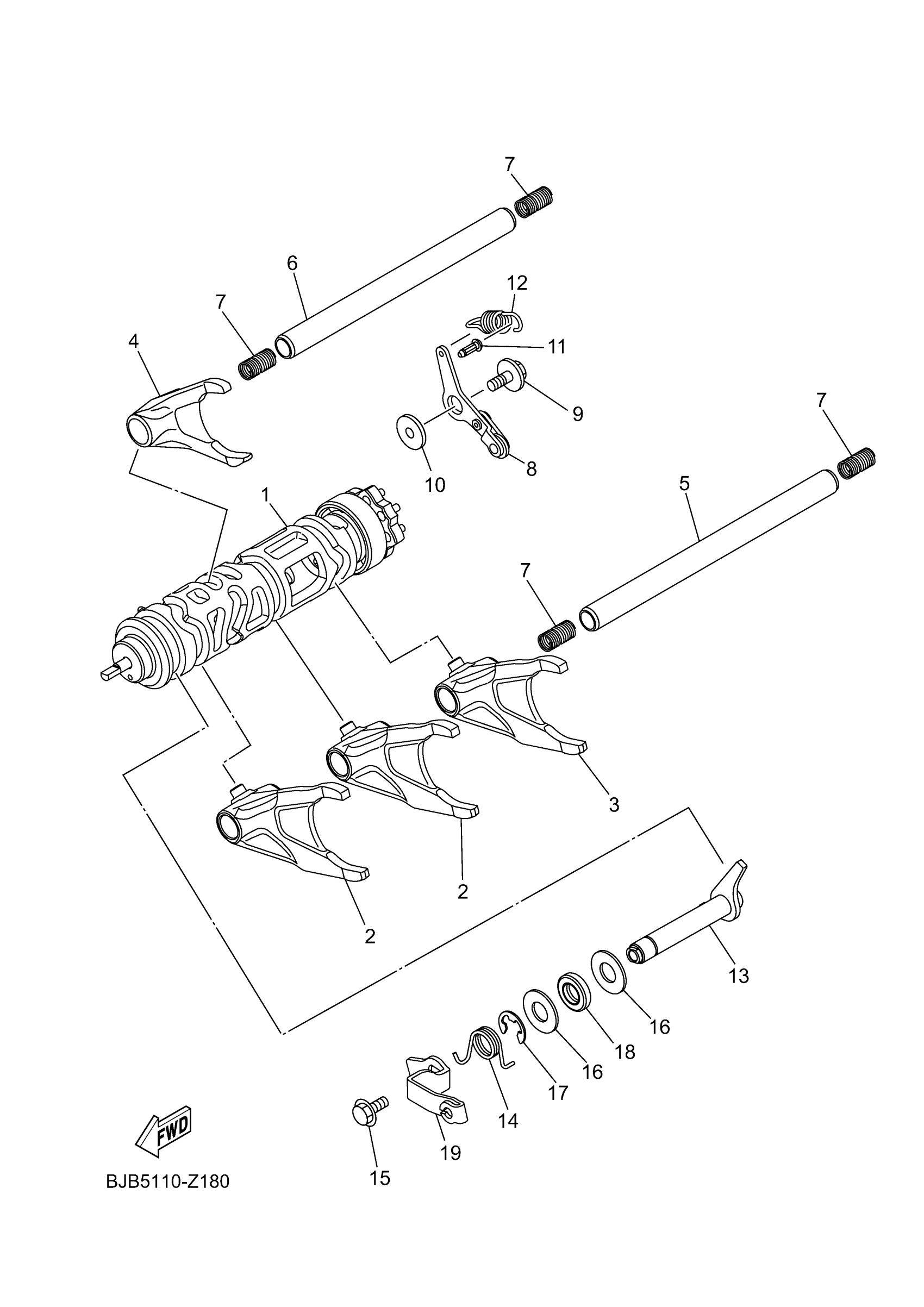

Yamaha YXZ10YMXSL (YXZ1000R) BJB9 2025 SHIFT CAM & FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

BJB-18540-00-00

Unavailable

2

FORK, SHIFT 1

BDW-18511-00-00

$134.99

3

FORK, SHIFT 2

BDW-18512-00-00

$141.99

4

FORK, SHIFT 3

BDW-18513-00-00

$139.99

5

BAR, SHIFT FORK GUIDE 1

BDW-18531-00-00

$85.99

6

BAR, SHIFT FORK GUIDE 2

BDW-18535-00-00

$85.99

7

SPRING, COMPRESSION

90501-080A2-00

$7.49

8

STOPPER LEVER ASSY

BDW-18140-00-00

Unavailable

9

SCREW, WITH WASHER

90159-06028-00

$7.49

10

SPACER

4NX-18175-00-00

Unavailable

11

HOOK, SPRING

132-16346-00-00

$9.99

12

HANGER, SPRING

BDW-18144-00-00

Unavailable

13

SHIFTER BRKT. ASSY

BJB-18380-00-00

Unavailable

14

SPRING

2HC-18337-00-00

Unavailable

15

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$8.49

16

WASHER, PLATE (353)

90201-12575-00

Unavailable

17

CIRCLIP

99002-10600-00

Unavailable

18

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

19

BRACKET, SHIFTER

BJB-18431-00-00

Unavailable
