- YXZ10YMXSL (YXZ1000R) BJB9 2025
REAR BRAKE CALIPER

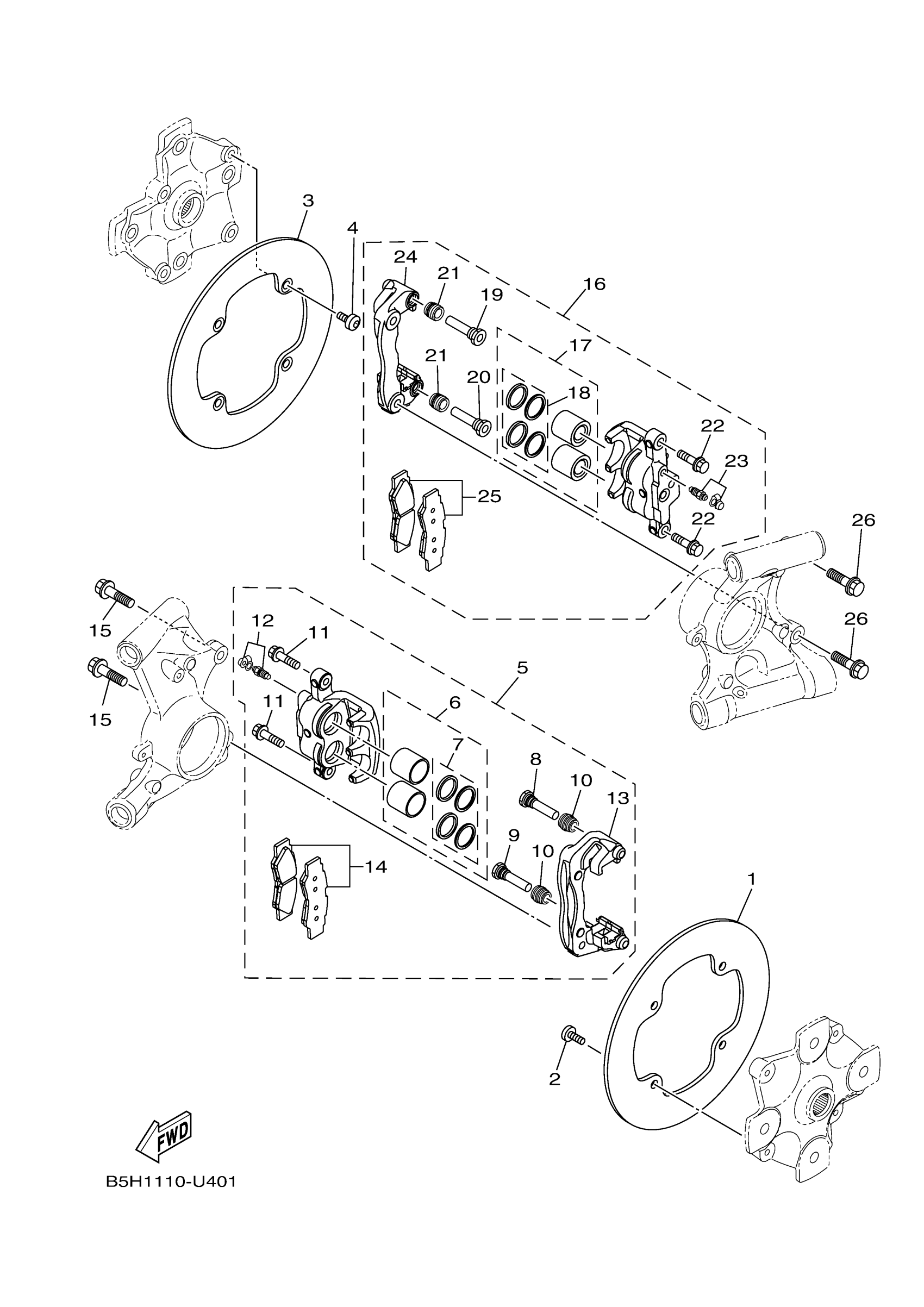

Yamaha YXZ10YMXSL (YXZ1000R) BJB9 2025 REAR BRAKE CALIPER Diagram
#
Description
Price
1
DISC, REAR BRAKE 1
B5H-F582V-00-00
Unavailable
2
BOLT
90109-08077-00
$8.49
3
DISC, REAR BRAKE 1
B5H-F582V-00-00
Unavailable
4
BOLT
90109-08077-00
$8.49
5
CALIPER ASSY, REAR
B5H-2580V-01-00
Unavailable
6
PISTON ASSY, CALIPER
B5H-25802-10-00
$42.99
7
CALIPER SEAL KIT
3FV-25803-10-00
$9.99
8
BOLT
2HC-25926-00-00
Unavailable
9
BOLT
2HC-25926-10-00
Unavailable
10
BOOT, CALIPER
2HC-25917-00-00
$4.52
11
BOLT, FITTING
2HC-25833-00-00
$1.98
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BRACKET, SUPPORT
2HC-25921-00-00
$96.99
14
BRAKE PAD KIT 2
B5H-25806-01-00
$93.99
15
BOLT, FLANGE
90105-10405-00
$5.60
16
CALIPER ASSY, REAR
B5H-2580W-01-00
Unavailable
17
PISTON ASSY, CALIPER
B5H-25802-10-00
$42.99
18
CALIPER SEAL KIT
3FV-25803-10-00
$9.99
19
BOLT
2HC-25926-00-00
Unavailable
20
BOLT
2HC-25926-10-00
Unavailable
21
BOOT, CALIPER
2HC-25917-00-00
$4.52
22
BOLT, FITTING
2HC-25833-00-00
$1.98
23
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
24
BRACKET, SUPPORT
2HC-25921-00-00
$96.99
25
BRAKE PAD KIT 2
B5H-25806-01-00
$93.99
26
BOLT, FLANGE
90105-10405-00
$5.60
