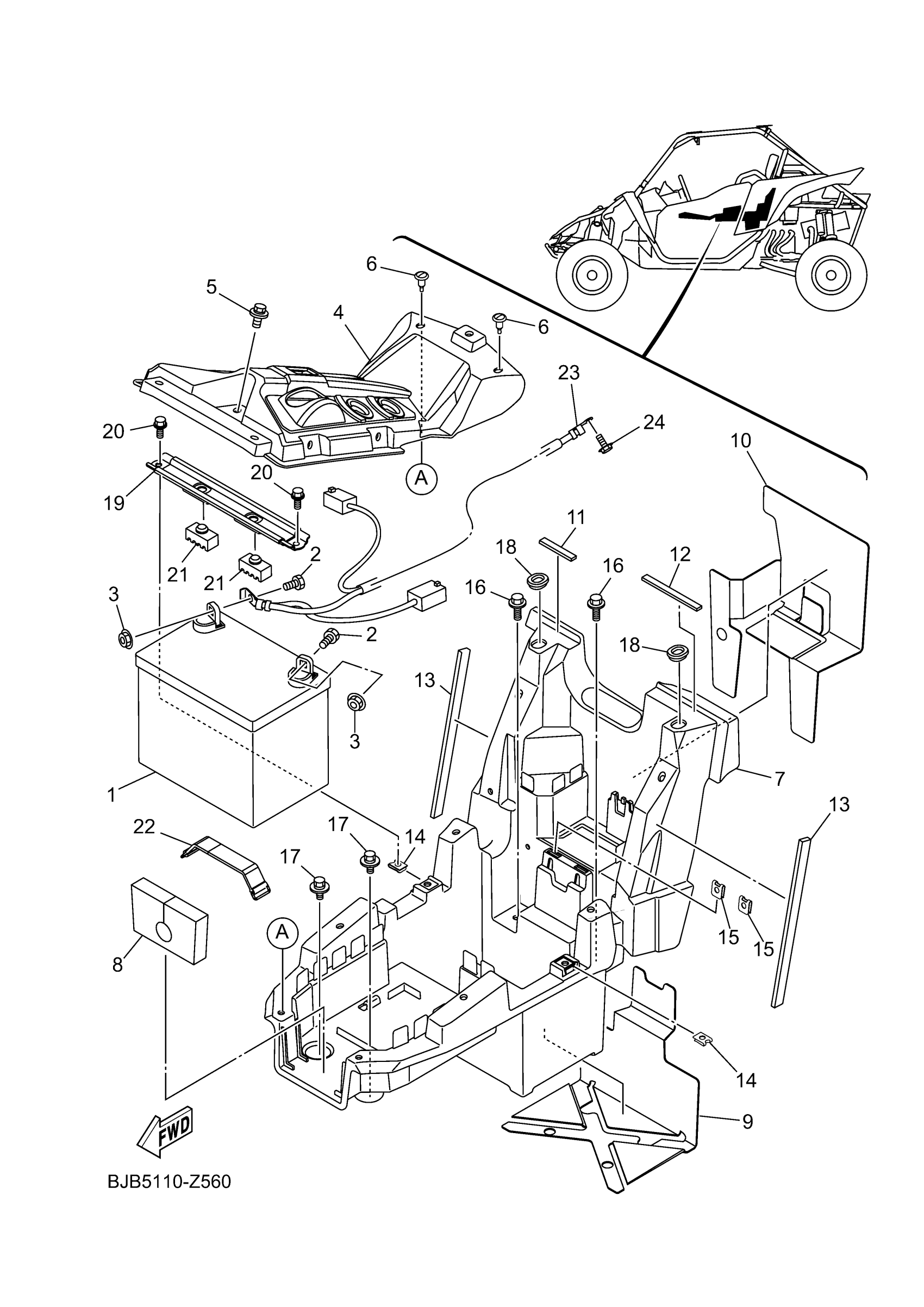

Yamaha YXZ10YMXSL (YXZ1000R) BJB9 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (GS U1-H11L)

5UG-H2100-11-00

Unavailable

2

BOLT(6TD)

97080-08020-00

$2.91

3

NUT

90179-08015-00

Unavailable

4

PANEL, SWITCH

2HC-H2565-10-00

$26.99

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

BOX, BATTERY 1

2HC-H212B-01-00

Unavailable

8

INSU.

2HC-8233W-00-00

$4.94

9

INSULATOR 2

2HC-8253F-00-00

Unavailable

10

INSULATOR

2HC-8254E-00-00

Unavailable

11

DAMPER, PLATE

90520-05020-00

$1.28

12

DAMPER, PLATE

90520-05021-00

Unavailable

13

DAMPER, PLATE

90520-05022-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$5.49

15

NUT, SPRING

90183-05008-00

$9.49

16

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

17

BOLT, WITH WASHER

90119-06152-00

$7.49

18

GROMMET(4DN)

90480-01558-00

Unavailable

19

BRACKET, BATTERY

2HC-H2128-00-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06014-00

Unavailable

21

PAD, SEAT

3C3-24741-00-00

Unavailable

22

BAND, BATTERY

2T4-82131-00-00

Unavailable

23

WIRE, MINUS LEAD

2HC-82116-01-00

Unavailable

24

BOLT, FLANGE

95812-06014-00

Unavailable
