Description

Price

1

STOPPER, SCREW

BDW-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

BDW-18101-00-00

Unavailable

3

SPRING, TORSION

90508-32144-00

$4.84

4

CIRCLIP

99002-10600-00

$8.49

5

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

6

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99002-10600-00

$8.49

9

LEVER COMP. 1

2HC-18190-01-00

$88.99

10

COLLAR

90387-08107-00

$13.99

11

BUSH, SOLID

90381-15001-00

$5.60

12

BOLT, FLANGE

95817-08050-00

$2.44

13

NUT, SELF-LOCKING

95602-08200-00

$3.20

14

KNOB, SHIFT LEVER

2HC-E8174-00-00

Unavailable

15

RIVET(81E)

90269-05055-00

$8.49

16

ROD, SHIFT

2HC-18115-01-00

Unavailable

17

NUT(1KT)

90170-08358-00

Unavailable

18

. NUT

95380-08700-00

Unavailable

19

ARM, SHIFT 2

BJB-18169-00-00

Unavailable

20

BOLT, FLANGE

90105-06142-00

Unavailable

21

GUIDE, SHIFT

2HC-E8172-00-00

Unavailable

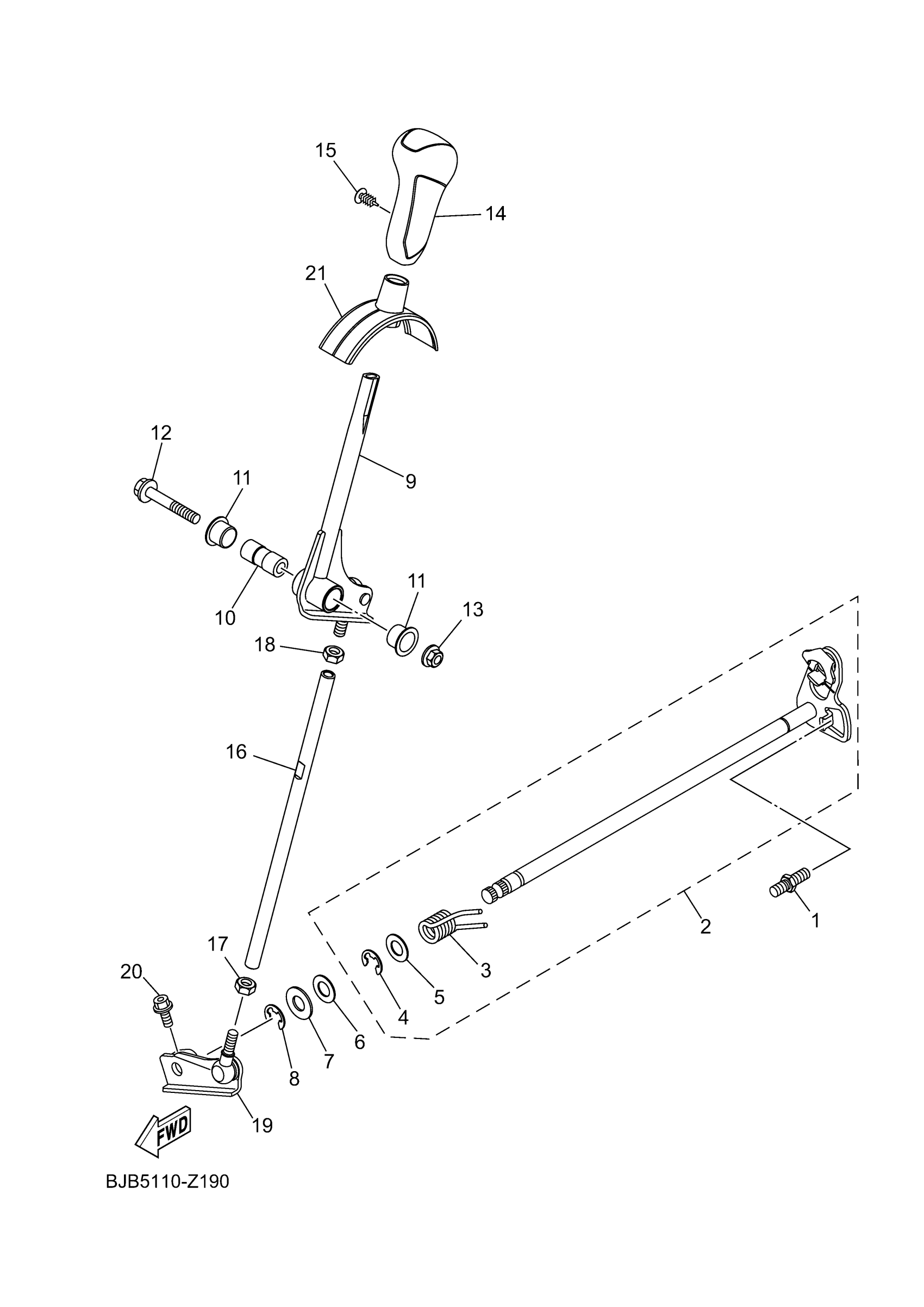

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 SHIFT SHAFT Diagram

STOPPER, SCREW

SHIFT SHAFT ASSY

SPRING, TORSION

CIRCLIP

WASHER, PLATE (5N6)

WASHER, PLATE (5N6)

WASHER, PLATE (353)

CIRCLIP

LEVER COMP. 1

COLLAR

BUSH, SOLID

BOLT, FLANGE

NUT, SELF-LOCKING

KNOB, SHIFT LEVER

RIVET(81E)

ROD, SHIFT

NUT(1KT)

. NUT

ARM, SHIFT 2

BOLT, FLANGE

GUIDE, SHIFT
