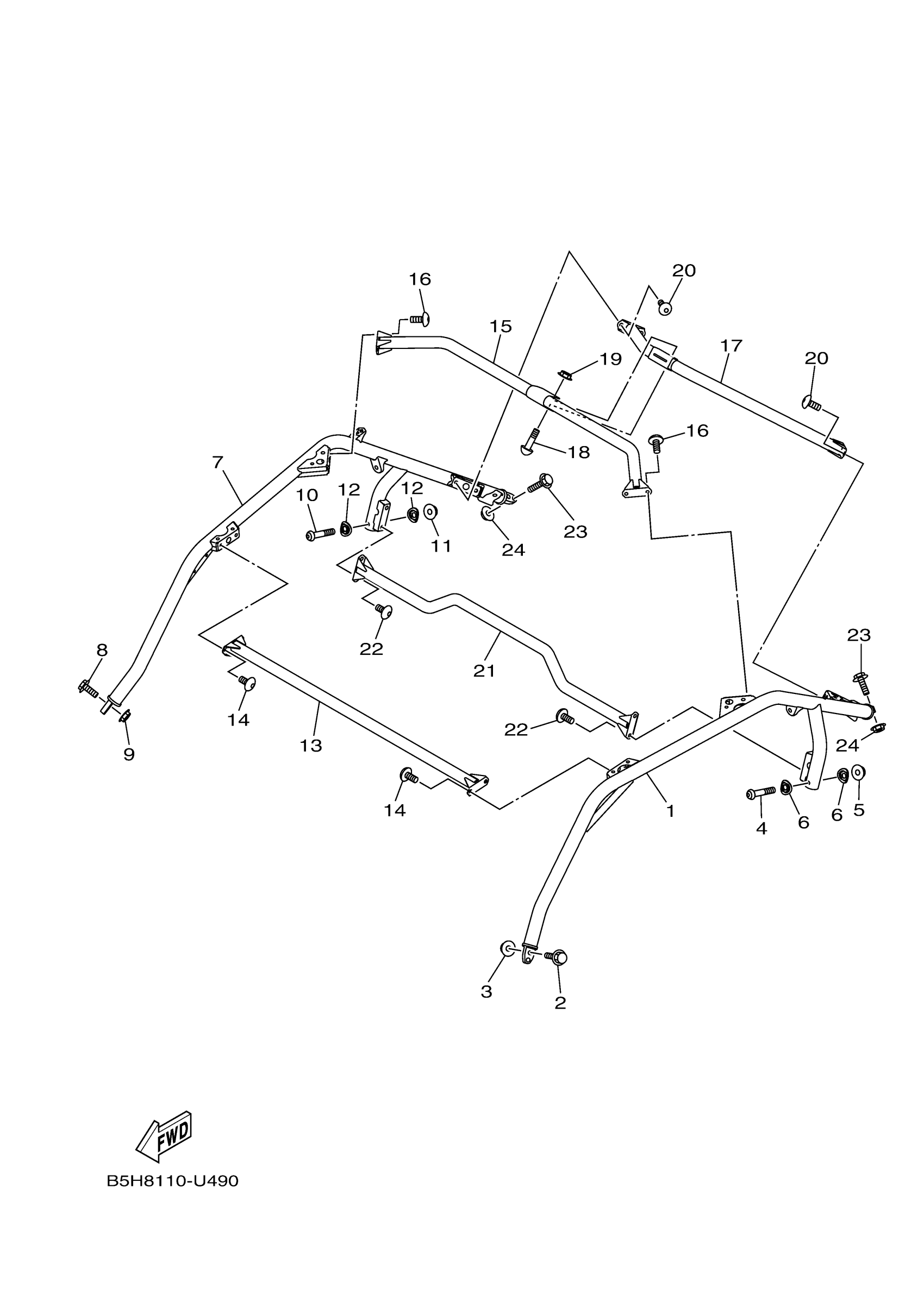

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
B5H-K831A-00-00
$296.99
2
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
3
NUT, SELF-LOCKING
90185-10819-00
$0.90
4
BOLT,BUTTON
92017-10060-00
$5.49
5
NUT, SELF-LOCKING
90185-10819-00
$0.90
6
WASHER 2
5UG-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
B5H-K831E-00-00
$296.99
8
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
9
NUT, SELF-LOCKING
90185-10819-00
$0.90
10
BOLT,BUTTON
92017-10060-00
$5.49
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
WASHER 2
5UG-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
BAS-K8392-00-00
$180.99
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
ROOF SUPPORT ASSY
B5H-K830A-00-00
$182.99
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
ROOF SUPPORT ASSY
B5H-K830B-00-00
Unavailable
18
BOLT,BUTTON
92017-10060-00
$5.49
19
NUT, SELF-LOCKING
90185-10819-00
$0.90
20
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
21
ROOF SUPPORT ASSY
B5H-K830C-00-00
Unavailable
22
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
23
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
24
NUT, SELF-LOCKING
90185-10819-00
$0.90
