- YXZ10YMXRL (YXZ1000R) BJB5 2024
FRONT SUSPENSION & WHEEL

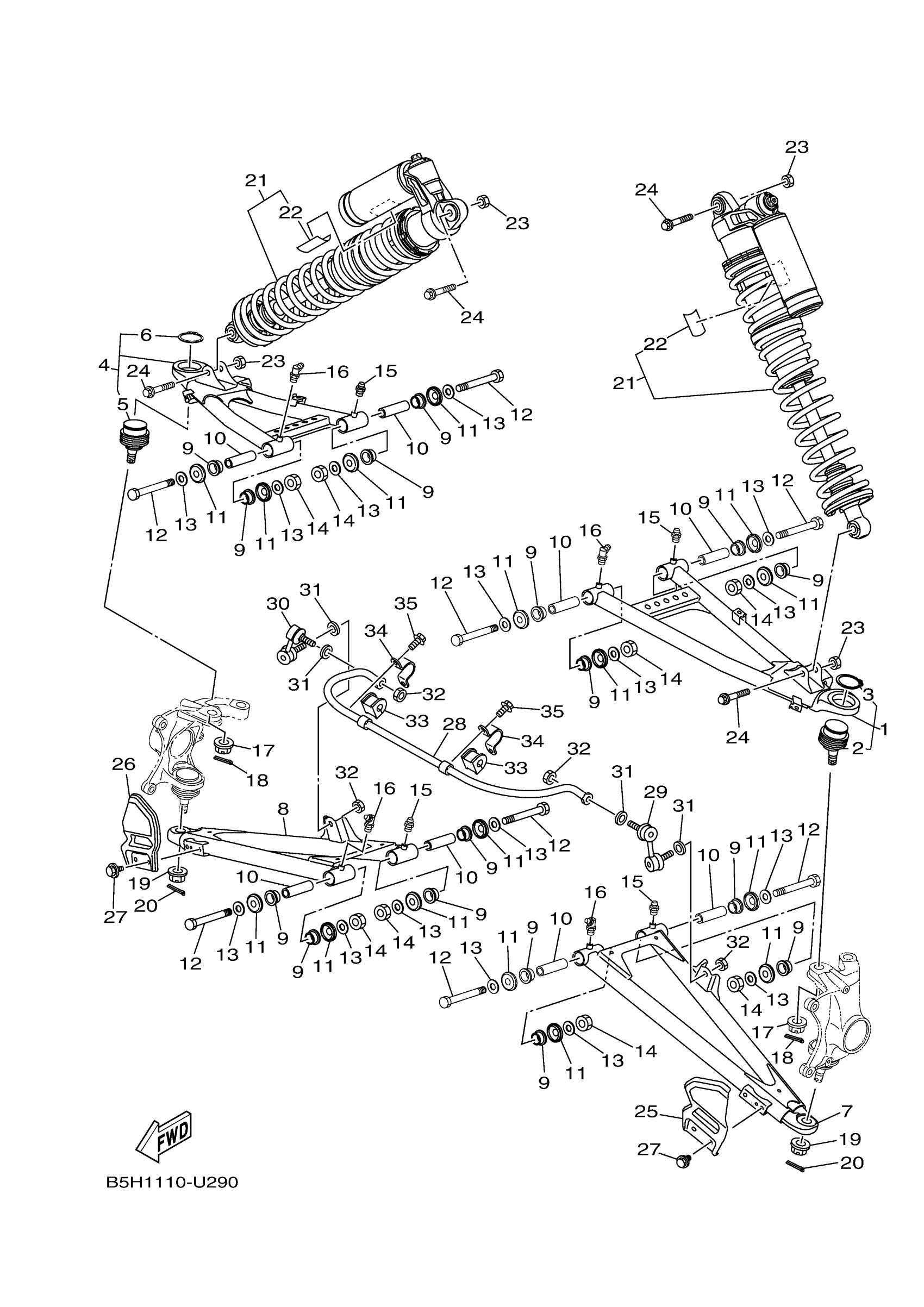

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 FRONT SUSPENSION & WHEEL Diagram
#
1
FRONT UPPER ARM SU
2HC-F3505-00-00
$177.99
2
BALL JOINT 2
2HC-23579-00-00
$96.99
3
CIRCLIP
93410-42096-00
$2.55
4
FRONT UPPER ARM SU
2HC-F3506-00-00
Unavailable
5
BALL JOINT 2
2HC-23579-00-00
$96.99
6
CIRCLIP
93410-42096-00
$2.55
7
FRONT LOWER ARM SU
2HC-F3507-00-00
$117.99
8
FRONT LOWER ARM SU
2HC-F3508-00-00
Unavailable
9
BUSH, SOLID
90381-18003-00
$7.49
10
COLLAR
90387-12063-00
$13.99
11
COVER, THRUST 1
1XD-23517-01-00
$9.99
12
BOLT
90101-12050-00
$11.49
13
WASHER, PLATE
90201-12045-00
$5.60
14
NUT, SELF-LOCKING
90185-12007-00
$10.49
15
NIPPLE, GREASE
93700-06M03-00
Unavailable
16
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
17
NUT, CASTLE
90171-14005-00
Unavailable
18
PIN, COTTER
91401-30025-00
Unavailable
19
NUT, CASTLE
90171-14005-00
Unavailable
20
PIN, COTTER
91401-30025-00
Unavailable
21
FR. SHOCK ABSORBER ASSY. ,2
BAS-F350B-31-00
Unavailable
22
LABEL, WARNING
B4J-F2259-00-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
Unavailable
24
BOLT, WASHER BASED
90105-10012-00
Unavailable
25
COVER, UNDER 1
2HC-F3123-01-00
Unavailable
26
COVER, UNDER 2
2HC-F3133-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06212-00
Unavailable
28
BAR, STABILIZER FRONT
8GN-2386E-00-00
Unavailable
29
JOINT, STABILIZER 1
16B-2385L-10-00
Unavailable
30
JOINT, STABILIZER 2
16B-2385M-10-00
Unavailable
31
WASHER, PLATE
90201-10035-00
Unavailable
32
NUT, SELF-LOCKING
90185-10012-00
Unavailable
33
BUSH
2HC-F3583-00-00
Unavailable
34
BRKT., STABILIZER
2HC-F386B-00-00
Unavailable
35
BOLT, FLANGE
95817-08014-00
Unavailable
