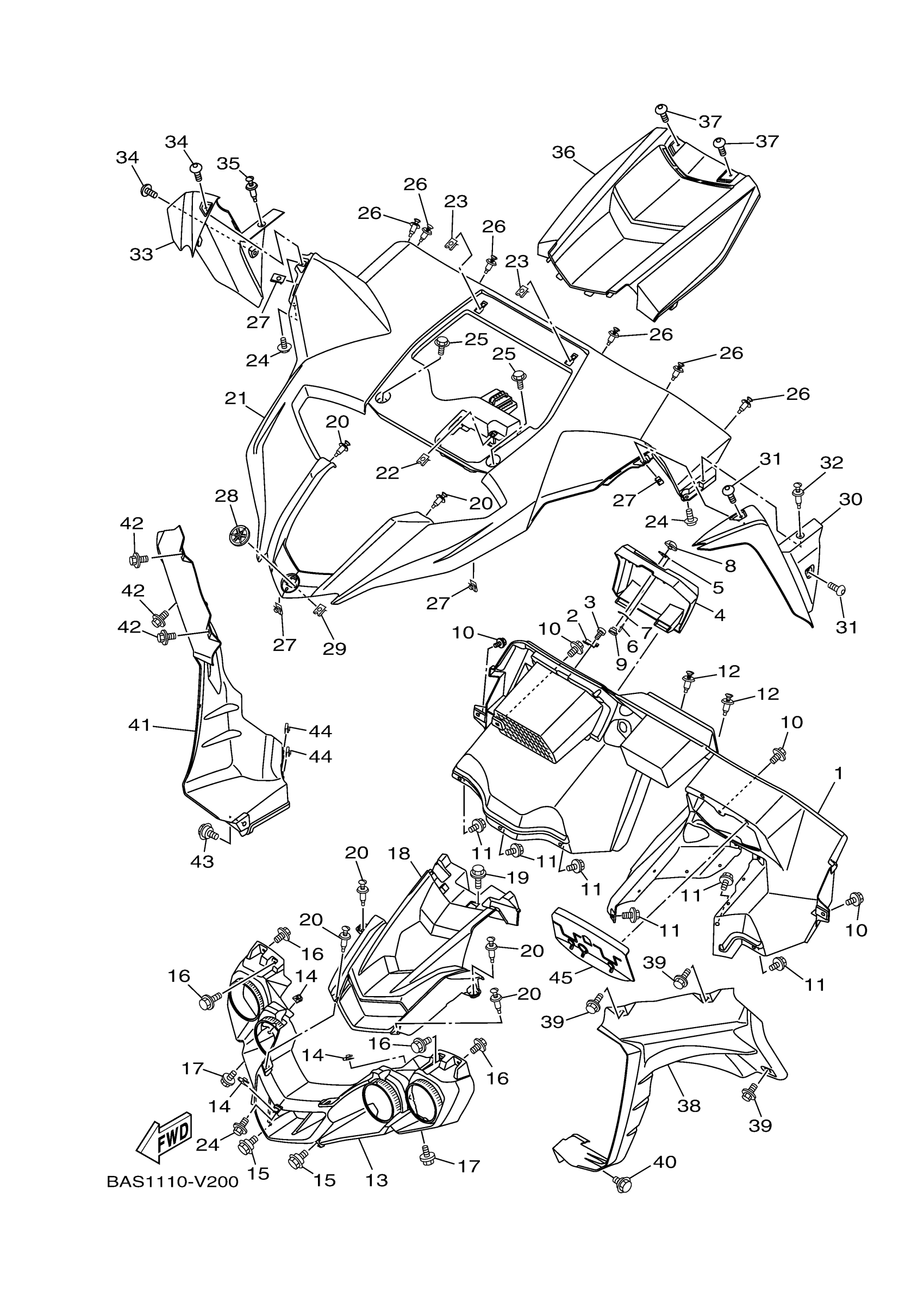

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2HC-K7711-21-00

$96.42

2

BRACKET, COVER

B5H-F139T-00-00

$3.27

3

SCREW, TAPPING

90164-04800-00

$0.44

4

LID

2HC-F160F-00-00

$53.99

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$6.17

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.77

8

LOCK 1

B5H-F837G-00-00

$1.74

9

LOCK 2

B5H-F837H-00-00

$1.67

10

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

GRILLE, FRONT

2HC-F8309-00-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$3.90

15

BOLT

90109-06202-00

$2.46

16

BOLT, WITH WASHER

90119-06226-00

$2.12

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

COVER, UPPER 1

B5H-F3121-60-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

21

FENDER, FRONT

2HC-F1511-51-00

$164.59

22

NUT, SPRING

90183-060A6-00

$3.90

23

NUT, SPRING

90183-060A6-00

$3.90

24

BOLT, WITH WASHER

90119-06226-00

$2.12

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

27

NUT, SPRING

90183-060A6-00

$3.90

28

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

29

NUT, SPRING

90183-06071-00

$0.50

30

EXTENSION, FRONT F

2HC-K8185-50-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

32

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

33

EXTENSION, FRONT F

2HC-K8186-50-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

35

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

36

HOOD 1

B5H-F1982-60-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

38

COVER 1

2HC-E246A-00-00

Unavailable

39

BOLT, WITH WASHER

90119-06226-00

$2.12

40

BOLT

90109-06202-00

$2.46

41

COVER 2

2HC-E246E-00-00

Unavailable

42

BOLT, WITH WASHER

90119-06226-00

$2.12

43

BOLT

90109-06202-00

$2.46

44

NUT, SPRING

90183-060A6-00

$3.90

45

COVER, SEAL 3

2HC-F338G-00-00

$11.12
