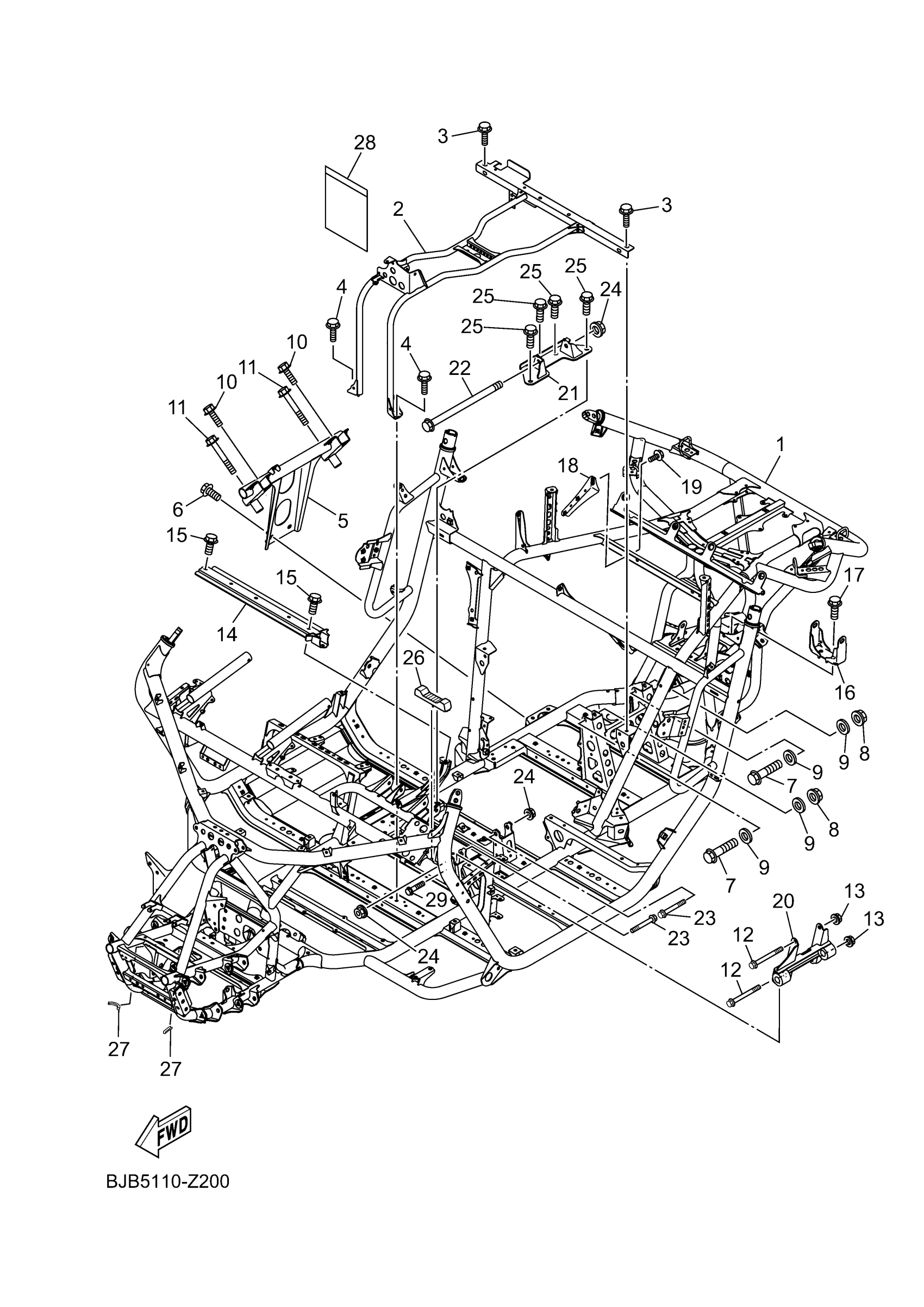

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 FRAME Diagram
#
Description
Price
1
FRAME COMP.
BDW-F1110-00-00
Unavailable
2
FRAME SUB COMP.
BJB-F111B-00-00
Unavailable
3
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
4
BOLT, FLANGE
90105-08867-00
$15.99
5
ENG. MOUNT COMP.
BDW-F110A-00-00
$125.99
6
BOLT, FLANGE
95812-10016-00
$9.49
7
BOLT, FLANGE
95812-12070-00
$4.99
8
NUT, SELF-LOCKING
90185-12002-00
$12.49
9
YBS66-12 WASHER,PLAIN
92990-12200-00
$8.49
10
BOLT, FLANGE
95812-08020-00
$2.80
11
BOLT, FLANGE
95817-08055-00
$4.21
12
BOLT, FLANGE
90105-10176-00
$12.49
13
NUT, S/L FLANGE
95602-10200-00
$4.82
14
BRACKET, SEAT
BDW-F1349-00-00
$73.99
15
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
16
STAY, MUFFLER
2HC-F194J-00-00
Unavailable
17
BOLT, FLANGE
95812-10016-00
$9.49
18
BRACKET
B5H-F115C-00-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
BRACKET 1
BJB-F148U-00-00
Unavailable
21
BRACKET 2
BJB-F148V-00-00
Unavailable
22
BOLT, FLANGE
90105-12087-00
Unavailable
23
BOLT, WASHER BASED (26H)
90105-12252-00
Unavailable
24
NUT, U FLANGE
95607-12200-00
Unavailable
25
BOLT, FLANGE
95812-10016-00
$9.49
26
DAMPER
BDW-F113B-00-00
Unavailable
27
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
28
POUCH
1P0-F8186-01-00
Unavailable
29
BOLT, FLANGE
90105-06833-00
Unavailable
