Description

Price

1

EXHAUST PIPE COMP.

2HC-14602-00-00

Unavailable

2

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

3

NUT (22U)

90179-08410-00

$9.49

4

MUFFLER ASSY 1

BDW-E4710-00-00

$791.99

5

SPARK ARRESTER ASS

2HC-14780-08-00

$69.99

6

GASKET, SILENCER

2HC-14755-00-00

$22.99

7

BOLT, FLANGE

95022-06012-00

$3.29

8

GASKET, MUFFLER

1SL-14714-00-00

$29.99

9

BAND, MUFFLER

1SL-14715-00-00

$30.99

10

BOLT, FLANGE

95022-08035-00

$3.81

11

CAP

B5H-14799-00-00

Unavailable

12

SCREW(3XV)

90149-06298-00

$5.60

13

SEAT

2HC-1475P-00-00

$29.99

14

BOLT

90101-10038-00

$7.49

15

WASHER, PLATE

90201-10034-00

$7.49

16

HOSE, BEND 1

2HC-E4881-00-00

Unavailable

17

CLIP(3TB)

90467-17128-00

Unavailable

18

AIR CUT VALVE ASSY

2HC-14840-00-00

Unavailable

19

HOSE, BEND 2

2HC-E4882-00-00

Unavailable

20

CLIP(3TB)

90467-17128-00

Unavailable

21

CLIP (4V3)

90467-20050-00

Unavailable

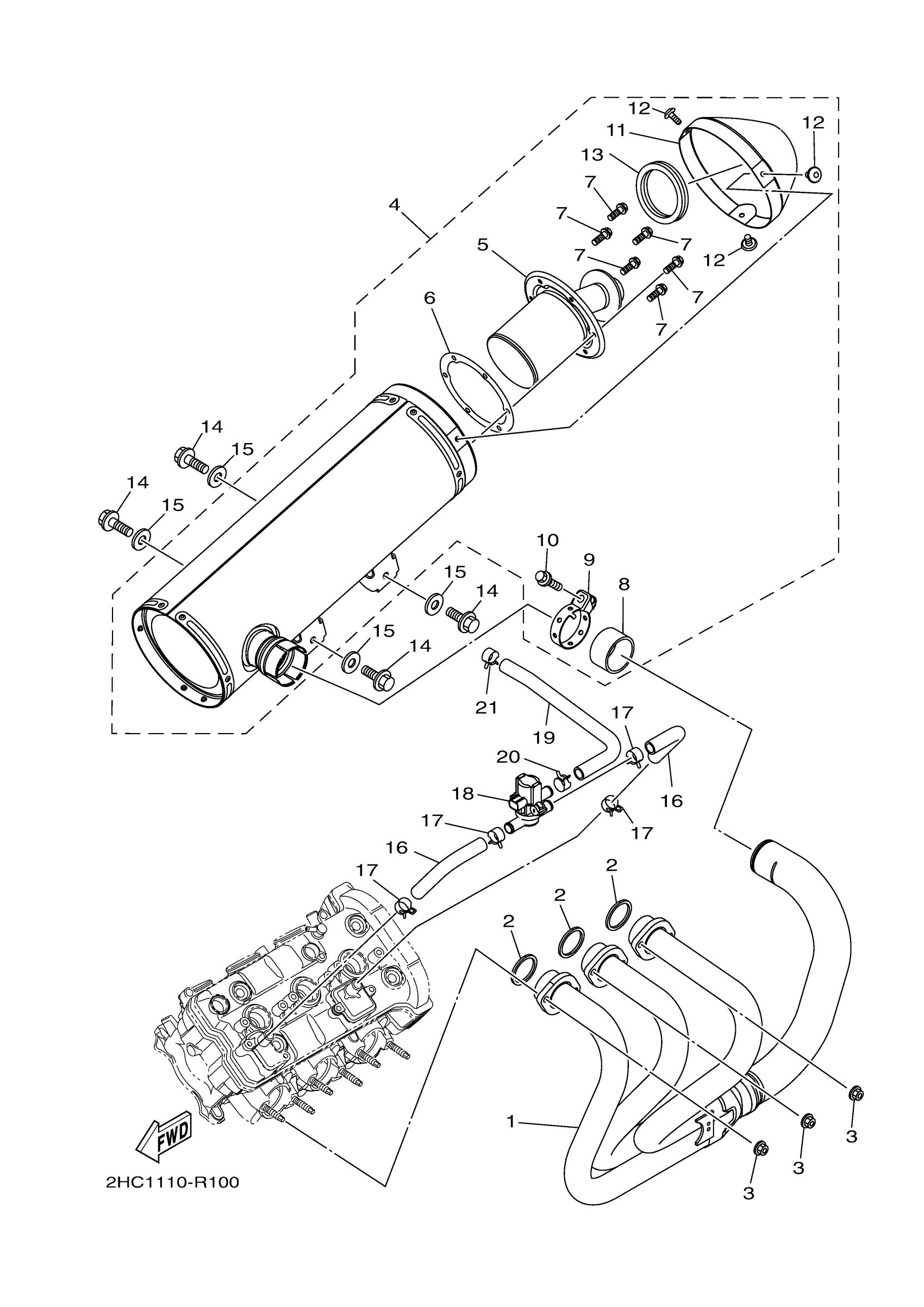

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 EXHAUST Diagram

EXHAUST PIPE COMP.

GASKET, EXHAUST PIPE

NUT (22U)

MUFFLER ASSY 1

SPARK ARRESTER ASS

GASKET, SILENCER

BOLT, FLANGE

GASKET, MUFFLER

BAND, MUFFLER

BOLT, FLANGE

CAP

SCREW(3XV)

SEAT

BOLT

WASHER, PLATE

HOSE, BEND 1

CLIP(3TB)

AIR CUT VALVE ASSY

HOSE, BEND 2

CLIP(3TB)

CLIP (4V3)
