- YXZ10YMXRL (YXZ1000R) BJB5 2024
ELECTRICAL 1

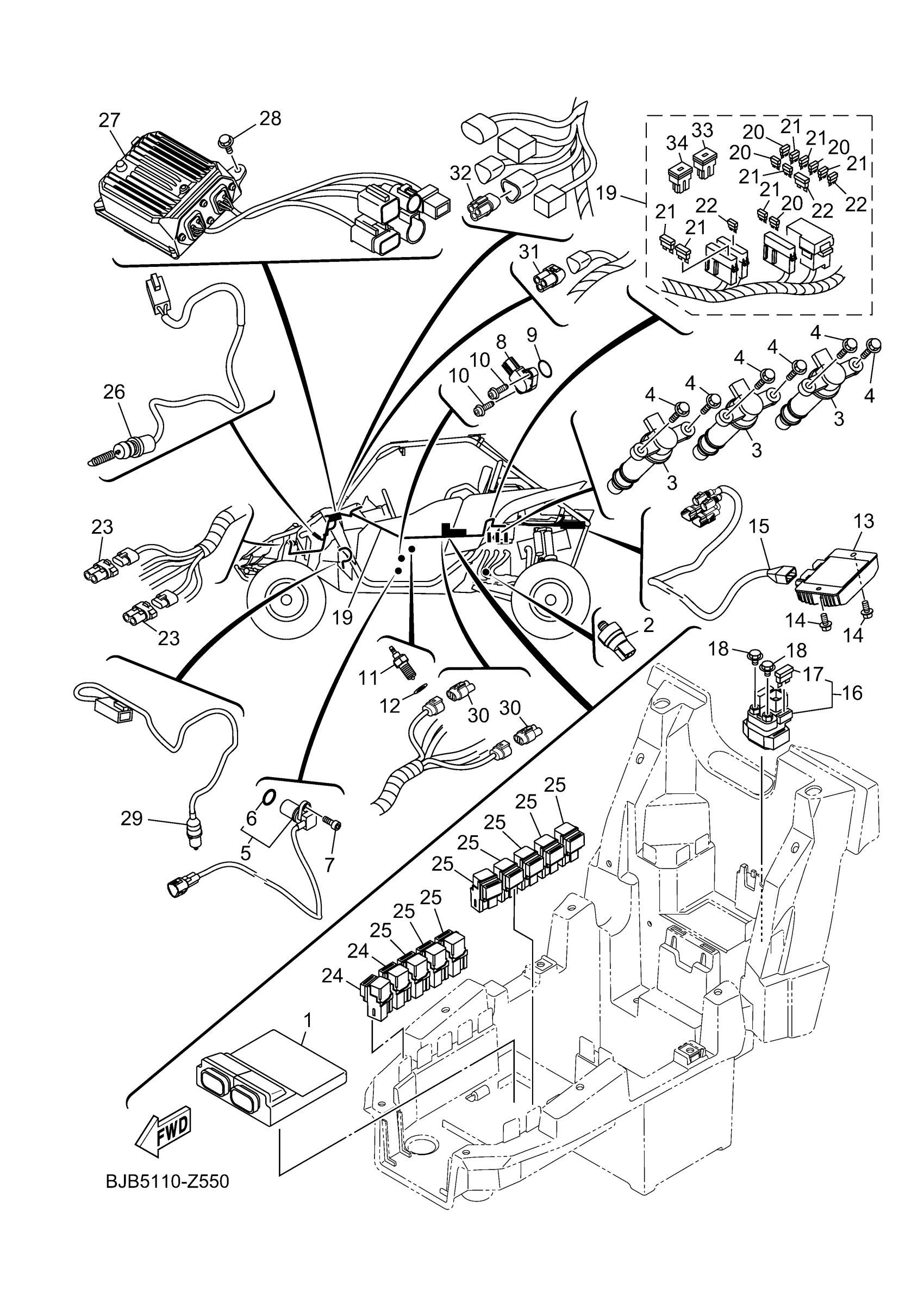

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNI
BJB-8591A-00-00
$1,461.99
2
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
3
IGNITION COIL ASSY
2HC-82310-00-00
$117.99
4
BLOT, FLANGE DEEP RECESS
95D32-06025-00
$1.07
5
Sensor Speed
3D8-83755-01-00
Unavailable
6
O-RING
4D9-81168-00-00
$6.99
7
BOLT,SOCKET
91317-06016-00
$1.25
8
SENSOR, GEAR POSITION
BDW-85899-00-00
Unavailable
9
O-RING
93210-17008-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
$7.49
11
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
12
GASKET (1KH,1.0T)
90430-10148-00
$5.60
13
GENERATOR CONTROL UNIT
BDW-81963-00-00
$551.99
14
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
15
WIRE, SUB LEAD
BDW-82583-00-00
Unavailable
16
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
Unavailable
17
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
18
BOLT, FLANGE
95022-06008-00
Unavailable
19
WIRE HARNESS ASSY
BJB-H2590-11-00
Unavailable
20
FUSE (15A)
67F-82151-50-00
Unavailable
21
. FUSE (10A)
67F-82151-40-00
Unavailable
22
FUSE
5JJ-82151-60-00
Unavailable
23
CONNECTOR
B5H-82378-00-00
Unavailable
24
RELAY ASSY
5DM-81950-01-00
Unavailable
25
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
26
STOP SWITCH ASSY
B90-82530-01-00
Unavailable
27
POWER STRG. CONT.
B5H-859A0-01-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
SWITCH
5KM-82917-00-00
Unavailable
30
CONNECTOR
B57-82378-00-00
Unavailable
31
CONNECTOR
8CR-82378-00-00
Unavailable
32
CONNECTOR
B5H-82529-00-00
Unavailable
33
FUSE
BDW-82151-A0-00
Unavailable
34
FUSE
BDW-82151-D0-00
Unavailable
