CRANKSHAFT & PISTON

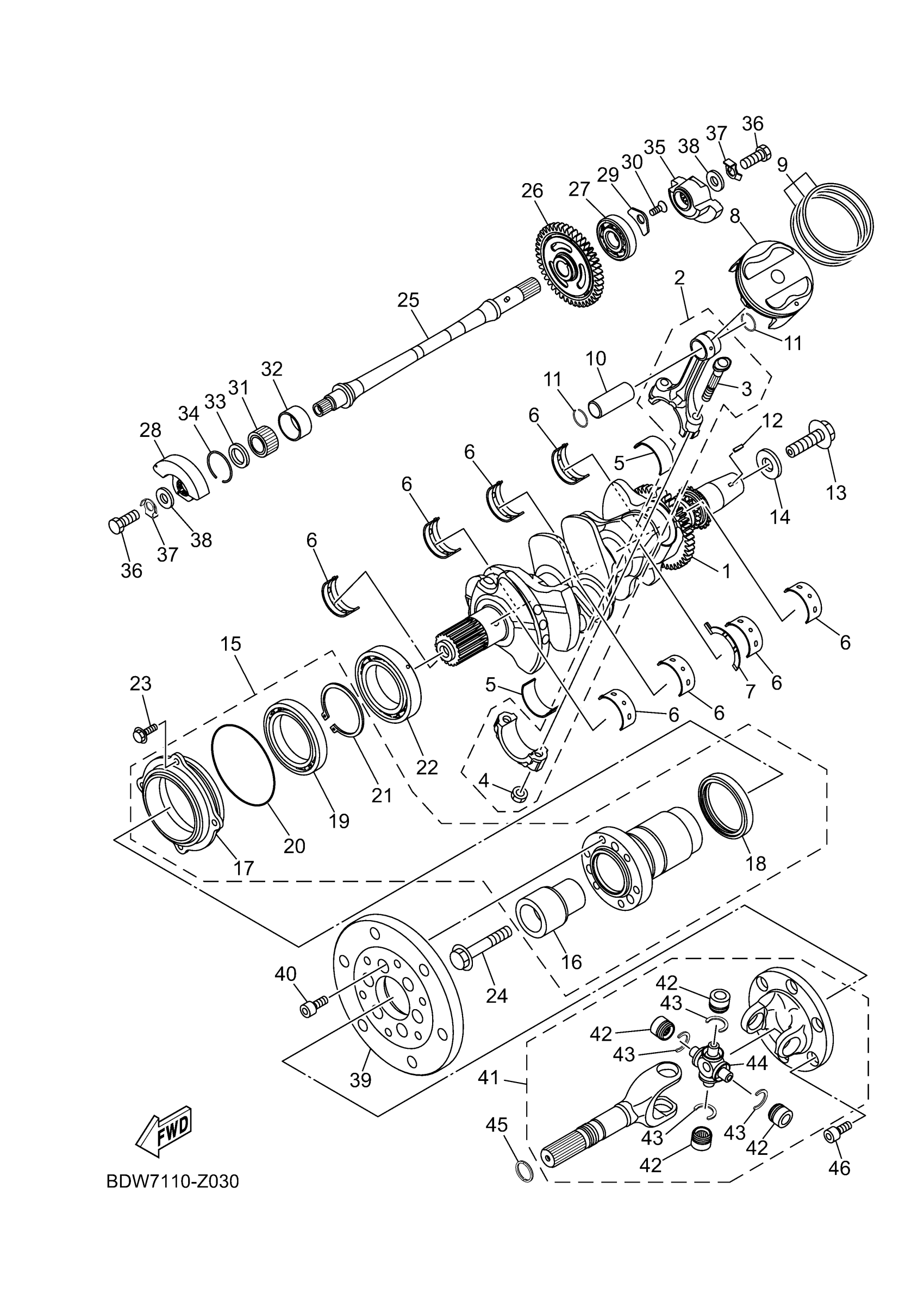

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT ASSY
2HC-11400-00-00
$659.99
2
CONNECTING ROD ASSY
B0F-11650-00-00
Unavailable
3
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
4
NUT (11H)
90179-08327-00
$9.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-50-00
$11.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-10-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-20-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-30-00
$25.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-40-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-50-00
$29.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-60-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-70-00
Unavailable
7
BEARING, THRUST 1
BW8-11426-00-00
Unavailable
8
PISTON (STD)
2HC-11631-00-00
Unavailable
9
PISTON RING SET (S
2HC-11603-01-00
Unavailable
10
PIN, PISTON
2HC-11633-00-00
Unavailable
11
CIRCLIP (26H)
93450-19095-00
Unavailable
12
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
13
BOLT, UNION
90401-12003-00
Unavailable
14
WASHER (838)
90201-12191-00
Unavailable
15
SHAFT ASSY
2HC-11406-00-00
Unavailable
16
COLLAR
2HC-11478-00-00
Unavailable
17
HOUSING, BEARING
2HC-16775-00-00
Unavailable
18
OIL SEAL
93105-57007-00
Unavailable
19
BEARING
93306-91102-00
Unavailable
20
O-RING(4ES)
93210-84724-00
Unavailable
21
CIRCLIP(4BB)
99009-55400-00
Unavailable
22
BEARING
93306-01005-00
Unavailable
23
BOLT, FLANGE
95817-06020-00
Unavailable
24
BOLT, FLANGE
90105-12099-00
Unavailable
25
SHAFT ASSY., 2
2HC-11407-00-00
Unavailable
26
BALANCER WEIGHT GE
2HC-11530-00-00
Unavailable
27
BEARING
93306-30323-00
Unavailable
28
WEIGHT 1
8ES-11454-00-00
Unavailable
29
PLATE, BEARING COVER
4JT-15381-01-00
Unavailable
30
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
31
BEARING
93310-42239-00
Unavailable
32
BEARING 1
8ES-11428-01-00
Unavailable
33
COLLAR
8ES-11478-00-00
Unavailable
34
CIRCLIP
93450-32152-00
Unavailable
35
WEIGHT 2
2HC-11464-00-00
Unavailable
36
BOLT(6TD)
97017-10025-00
Unavailable
37
WASHER, LOCK
90215-10003-00
Unavailable
38
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
39
FLYWHEEL
2HC-11571-00-00
Unavailable
40
BOLT,SOCKET
91314-08020-00
Unavailable
41
YOKE ASSEMBLY
2HC-43804-00-00
Unavailable
42
BEARING
93399-99948-00
Unavailable
43
CIRCLIP (4X7)
93440-20088-00
Unavailable
44
SPIDER
2HC-46187-00-00
Unavailable
45
O-RING
93210-192A6-00
Unavailable
46
BOLT,SOCKET
91314-08020-00
Unavailable
