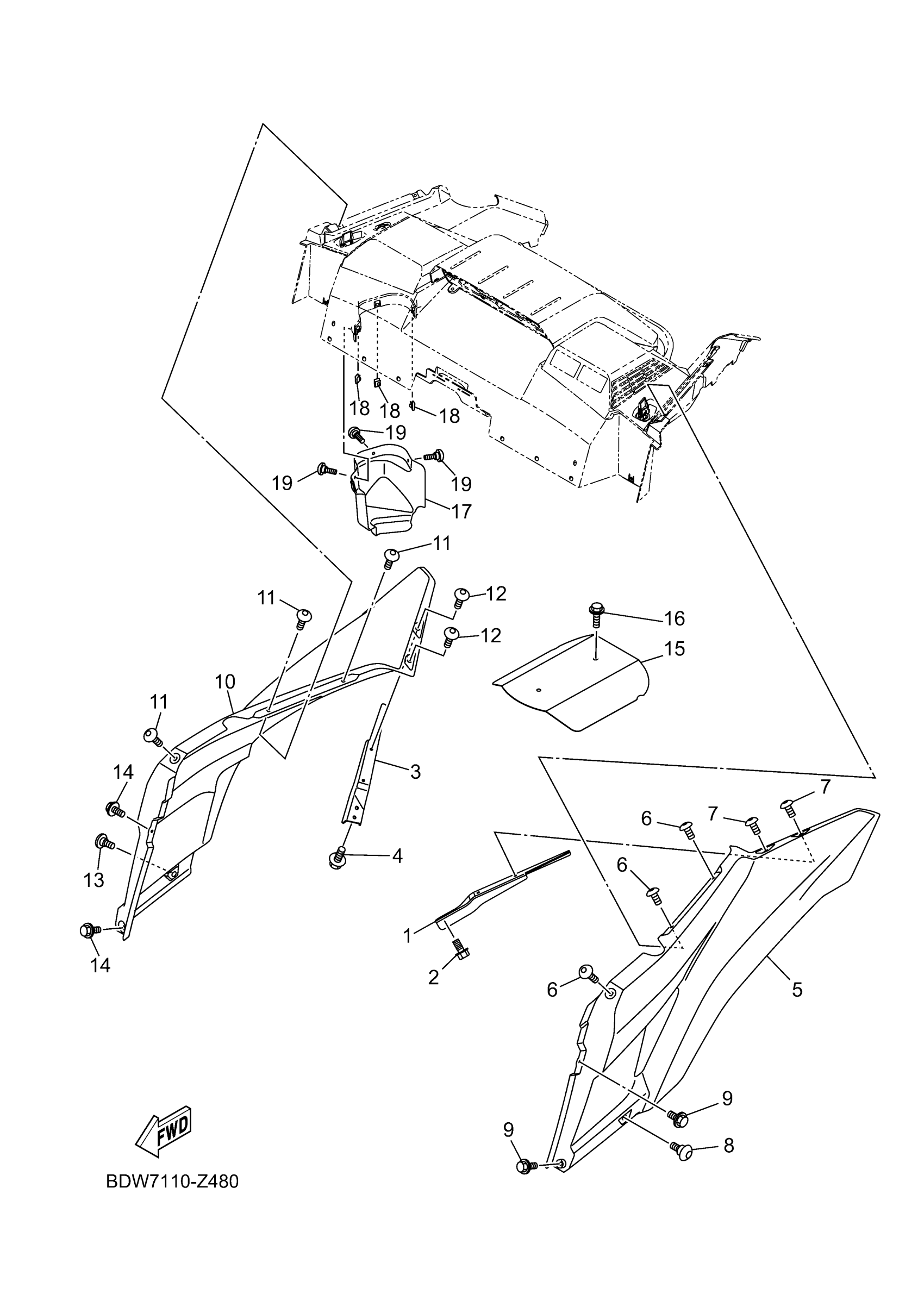

Yamaha YXZ10YMXRL (YXZ1000R) BJB5 2024 CARRIER 3 Diagram

#

Description
Price

1

STAY, FENDER 3

BDW-F1643-10-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

3

STAY, FENDER 4

BDW-F1644-10-00

Unavailable

4

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

5

FENDER, REAR

2HC-F1611-00-00

$68.90

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

8

BOLT

90109-06061-00

$8.02

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

FENDER 2

2HC-F162R-00-00

$68.90

11

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

13

BOLT

90109-06061-00

$8.02

14

BOLT, WITH WASHER

90119-06226-00

$2.12

15

INSULATOR, HEAT

B5H-F2898-00-00

$9.58

16

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

17

COVER 1

2HC-F842M-01-00

Unavailable

18

NUT, SPRING

90183-060A6-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$2.12
