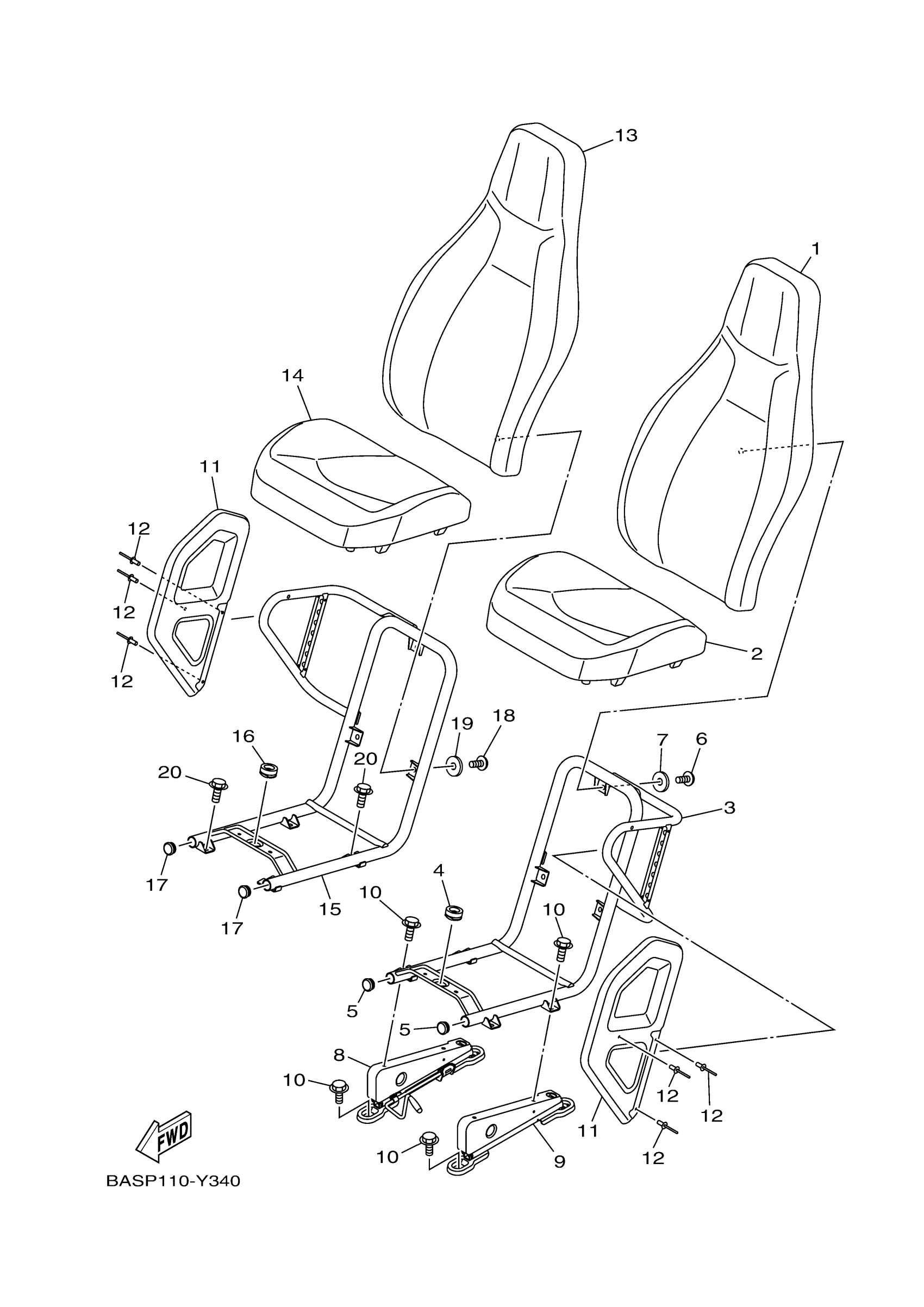

Yamaha YXZ10YMXPL (YXZ1000R) B5JE 2023 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAS-F4790-60-00

$623.04

2

SEAT ASSY

BAS-F4700-60-00

$649.56

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

Unavailable

5

PLUG

2HC-F2417-00-00

$1.91

6

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

7

WASHER, PLATE

90201-06095-00

$5.87

8

ADJUSTER ASSY

BAS-F7270-00-00

$334.01

9

ADJUSTER ASSY

BAS-F7260-00-00

$130.51

10

BOLT, FLANGE

95817-08012-00

$3.81

11

COVER,2

2HC-F475X-01-00

$131.41

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

SEAT BACK ASSY

BAS-F4790-60-00

$623.04

14

SEAT ASSY

BAS-F4700-60-00

$649.56

15

FRAME, SEAT 2

2HC-F473D-01-00

$241.99

16

GROMMET

1XD-F4742-00-00

Unavailable

17

PLUG

2HC-F2417-00-00

$1.91

18

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

19

WASHER, PLATE

90201-06095-00

$5.87

20

BOLT, FLANGE

95817-08012-00

$3.81
