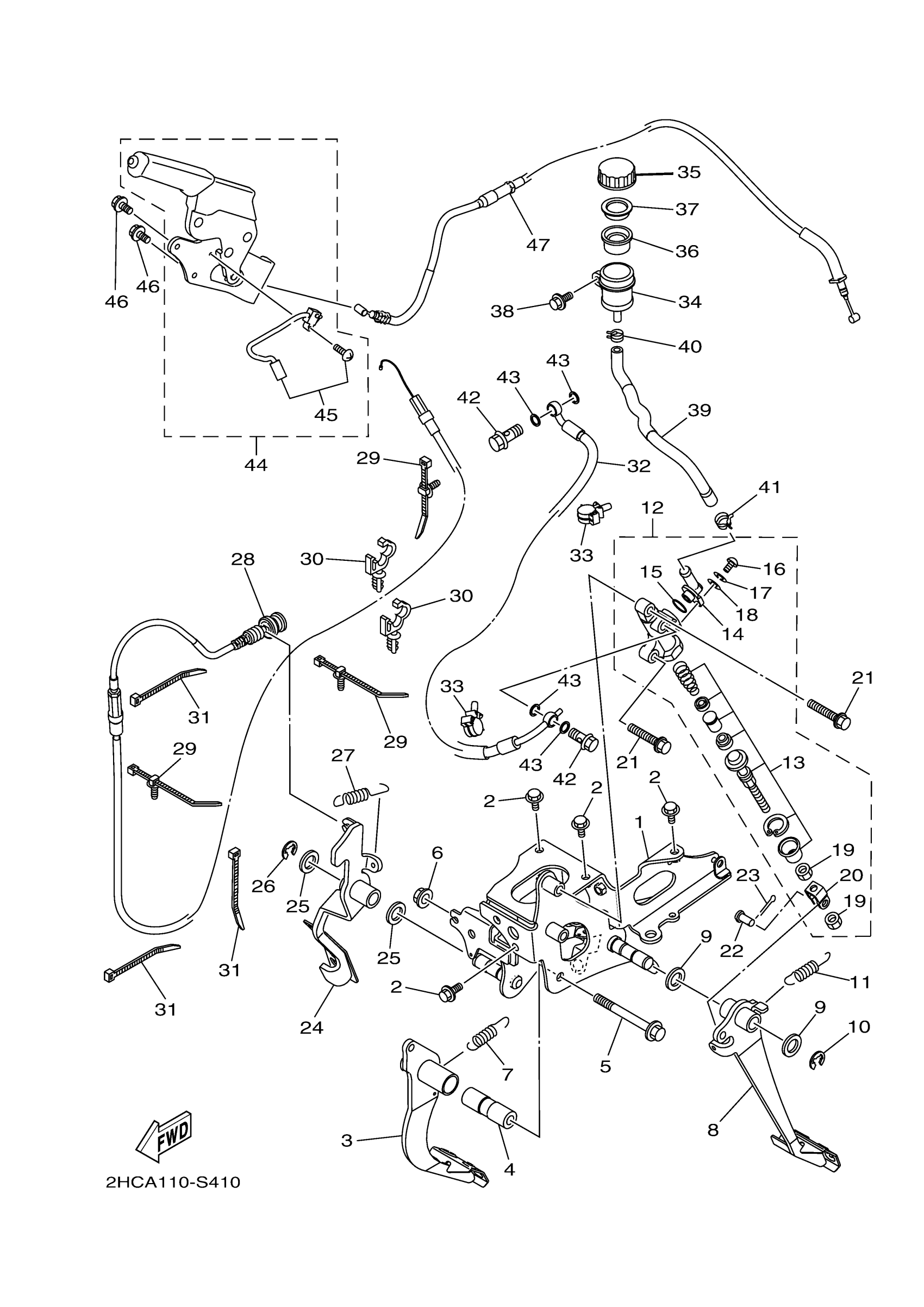

Yamaha YXZ10YMXPL (YXZ1000R) B5JE 2023 PEDAL WIRE Diagram
#
1
BRACKET,PEDL SUPRT
2HC-F2548-11-00
$100.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
PEDAL, BRAKE
2HC-F7200-00-00
Unavailable
4
COLLAR
90387-10843-00
Unavailable
5
95812-10090
95812-10090-00
$2.70
6
NUT, S/L FLANGE
95602-10200-00
$4.82
7
SPRING, TENSION
90506-23022-00
$5.49
8
SHIFT PEDAL ASSY
2HC-E8110-00-00
$28.99
9
WASHER, PLATE
90201-15018-00
$7.49
10
CIRCLIP (122)
93430-12008-00
$8.49
11
SPRING, TENSION
90506-23022-00
$5.49
12
MASTER CYLINDER ASSY (CLUTCH)
2HC-26450-00-00
Unavailable
13
CYLINDER KIT, MASTER
2HC-25808-00-00
Unavailable
14
JOINT
1AE-2582A-00-00
Unavailable
15
O-RING (22U)
93210-15566-00
$7.49
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
WASHER, PLAIN (646)
92990-04600-00
Unavailable
19
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
20
JOINT
2YK-27222-00-00
Unavailable
21
BOLT, FLANGE
95817-08050-00
Unavailable
22
PIN, CLEVIS
90240-08005-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
ACCEL PEDAL ASSY
2HC-F7801-01-00
Unavailable
25
WASHER, PLATE
90201-15018-00
$7.49
26
CIRCLIP (122)
93430-12008-00
$8.49
27
SPRING, TENSION
90506-23022-00
$5.49
28
WIRE, THROTTLE 1
2HC-26311-13-00
Unavailable
29
CLAMP
5B4-F1338-00-00
Unavailable
30
CLAMP
90464-12830-00
Unavailable
31
CLAMP
90464-48800-00
Unavailable
32
HOSE, CLUTCH 1
2HC-F6472-00-00
Unavailable
33
CLAMP
90464-16012-00
Unavailable
34
TANK, RESERVOIR
5JJ-25894-01-00
Unavailable
35
CAP, RESERVOIR
3XP-25852-50-00
Unavailable
36
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
Unavailable
37
BUSH,DIAPHRAGM
2VN-25855-00-00
Unavailable
38
BOLT, WITH WASHER
90119-06137-00
Unavailable
39
HOSE, RESERVOIR
2HC-F5895-00-00
Unavailable
40
CLIP (7K7)
90467-11044-00
Unavailable
41
CLIP (5K4)
90467-14057-00
Unavailable
42
BOLT, UNION
90401-10015-00
Unavailable
43
WASHER, PLATE(481)
90201-10118-00
Unavailable
44
PARKING LEVER ASSY
BDW-F5690-00-00
Unavailable
45
. SWITCH COMP
5UG-H251S-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
47
WIRE, BRAKE 1
2HC-26341-01-00
Unavailable
