ELECTRICAL 1

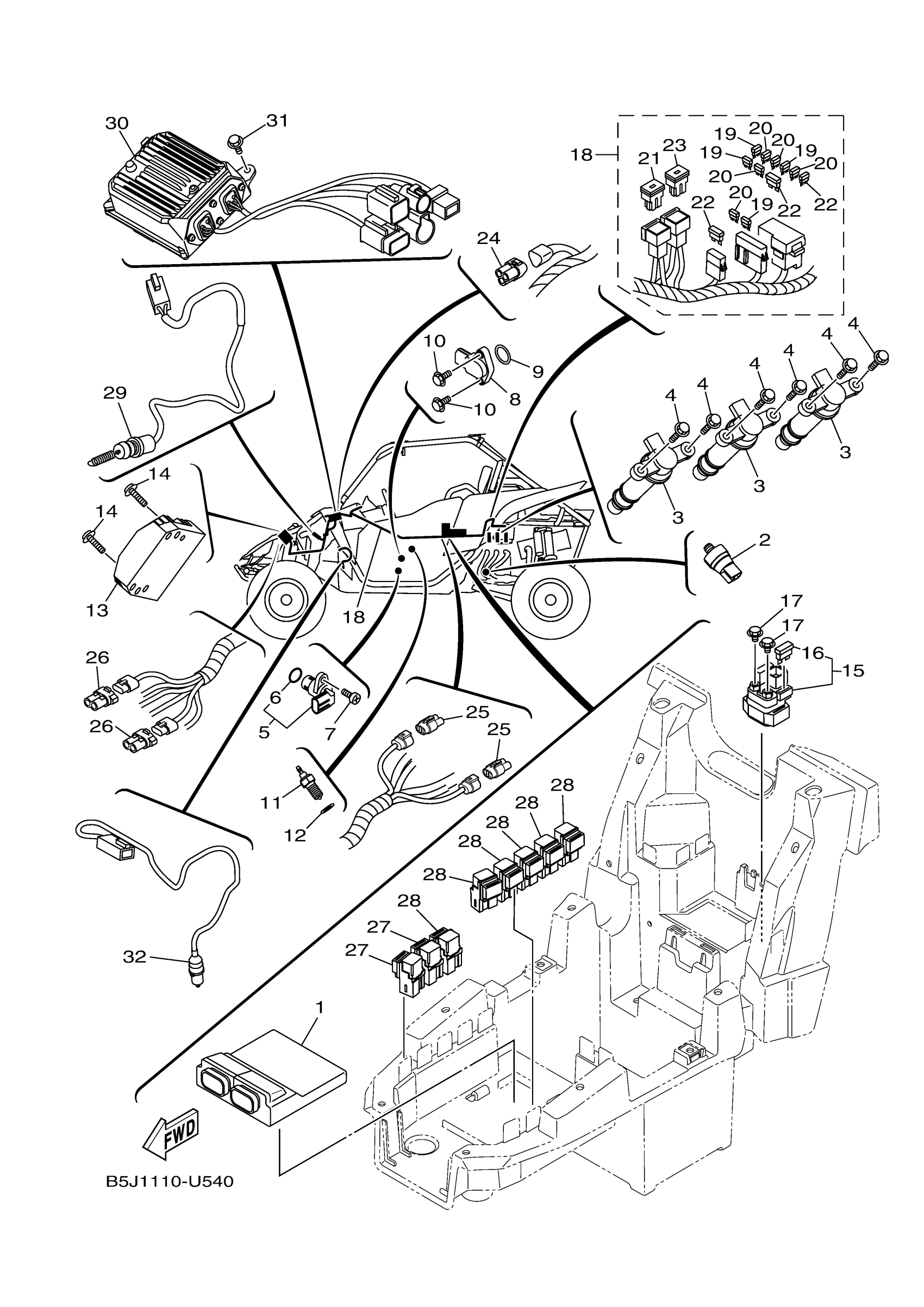

Yamaha YXZ10YMXPL (YXZ1000R) B5JE 2023 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
B5J-8591A-11-00
$1,180.99
2
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
3
IGNITION COIL ASSY
2HC-82310-00-00
$117.99
4
BOLT, FLANGE
95817-06025-00
Unavailable
5
SENSOR, SPEED
1TP-83755-00-00
$77.99
6
O-RING
4D9-81168-00-00
$6.99
7
BOLT,SOCKET
91317-06016-00
$1.25
8
SENSOR, GEAR POSITION
2HC-85899-10-00
$87.99
9
O-RING
93210-17008-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
$7.49
11
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
12
GASKET (1KH,1.0T)
90430-10148-00
$5.60
13
RECTIFIER & REGULATOR ASSY
B5H-81960-00-00
Unavailable
14
BOLT, FLANGE
90105-06833-00
$2.28
15
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
$106.99
16
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
17
BOLT, FLANGE
95022-06008-00
Unavailable
18
WIRE HARNESS ASSY
B5J-82590-11-00
Unavailable
19
FUSE (15A)
67F-82151-50-00
Unavailable
20
. FUSE (10A)
67F-82151-40-00
Unavailable
21
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
22
FUSE
5JJ-82151-60-00
Unavailable
23
FUSE (50A)
5JW-82151-10-00
Unavailable
24
CONNECTOR
8CR-82378-00-00
Unavailable
25
CONNECTOR
B57-82378-00-00
Unavailable
26
CONNECTOR
B5H-82378-00-00
Unavailable
27
RELAY ASSY
5DM-81950-01-00
Unavailable
28
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
29
STOP SWITCH ASSY
B90-82530-01-00
Unavailable
30
POWER STRG. CONT.
B5H-859A0-01-00
Unavailable
31
BOLT, FLANGE
95817-06016-00
Unavailable
32
SWITCH
5KM-82917-00-00
Unavailable
