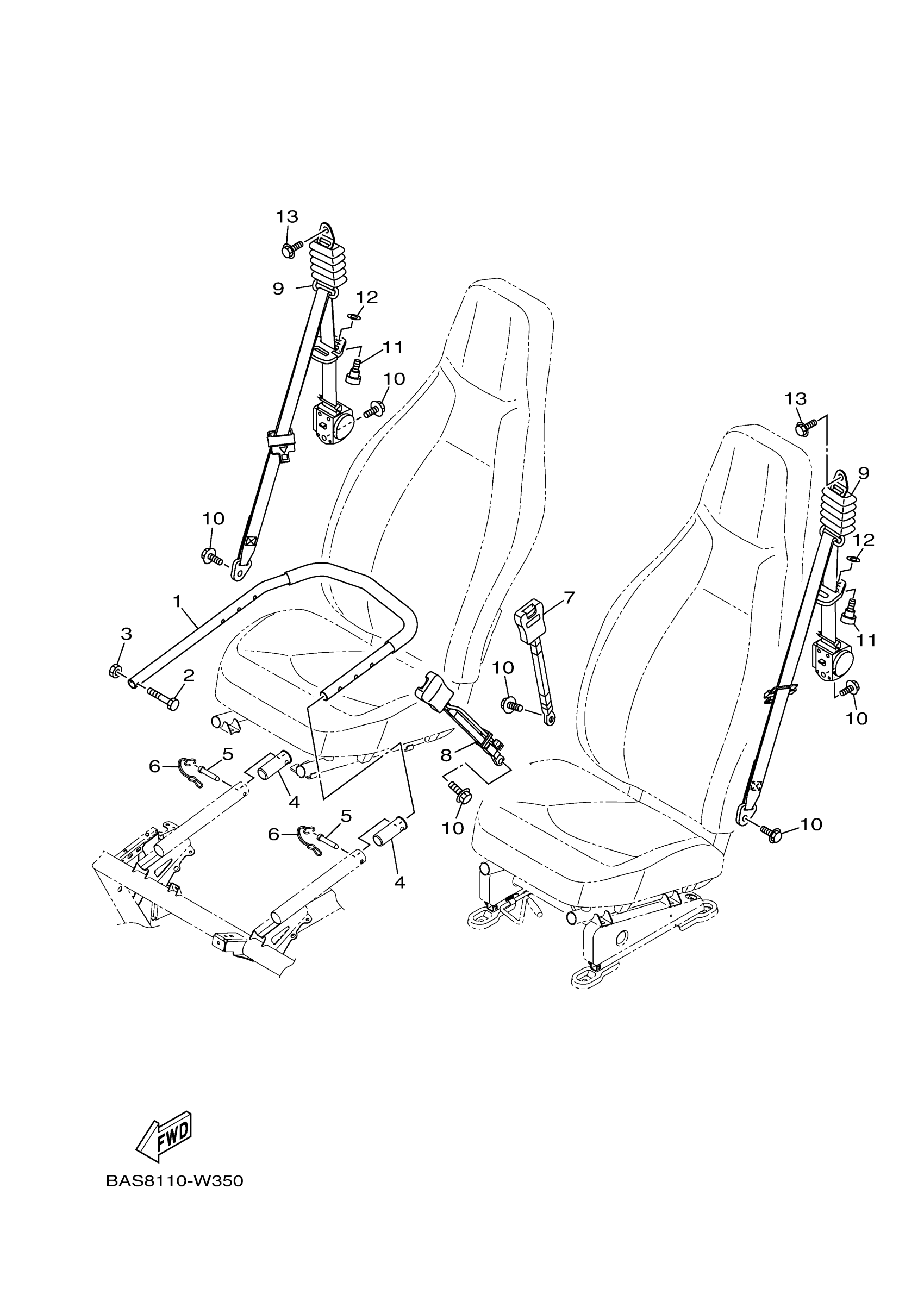

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 SEAT 2 Diagram

#

Description
Price

1

ASSIST GRIP ASSY.,

2HC-F470J-00-00

$136.99

2

BOLT(8BC)

97017-06040-00

$6.94

3

NUT, SELF-LOCKING

95617-06100-00

$2.17

4

BUSH, CAP

1XD-F467K-00-00

$2.21

5

PIN, LOCK

1XD-F5926-00-00

$2.40

6

SNAP, PIN

1XD-F311F-00-00

Unavailable

7

FR. BELT RECEIVER

BHF-F470R-00-00

$34.27

8

FR. BELT RECEIVER

BHF-F470R-10-00

$63.72

9

FR. SEAT BELT ASSY

BHF-F470L-01-00

Unavailable

10

BOLT, FLANGE

95812-12020-00

$6.06

11

BOLT, SPECIAL

16B-F3394-01-00

$2.42

12

WASHER, PLATE

90201-11801-00

$1.15

13

BOLT,HEX. SOCKET B

90111-12002-00

$3.19
