Description

Price

1

RR. UPR. ARM COMP.

2HC-F2104-00-00

$88.99

2

RR. UPR. ARM COMP.

2HC-F2105-00-00

$88.99

3

BUSH, SOLID

90381-18003-00

$7.49

4

COLLAR

90387-12062-00

$34.99

5

COVER, THRUST 1

1XD-23517-01-00

$9.99

6

BOLT, FLANGE

90105-12098-00

$21.99

7

WASHER, PLATE

90201-12045-00

$5.60

8

NUT, SELF-LOCKING

90185-12007-00

$10.49

9

NIPPLE, GREASE

93700-06M03-00

Unavailable

10

RR. LWR. ARM COMP., 1

2HC-F2106-51-00

$155.99

11

BALL JOINT 1

2HC-23549-00-00

$139.99

12

CIRCLIP(47Y)

99009-35500-00

$8.49

13

SEAL, DUST 1

2HC-23527-01-00

$29.99

14

JOINT, UNIVERSAL 2

2HC-23845-00-00

$99.99

15

CIRCLIP(47Y)

99009-35500-00

$8.49

16

SEAL, DUST 2

2HC-23528-00-00

Unavailable

17

RR. LWR. ARM COMP., 2

2HC-F2107-51-00

Unavailable

18

BALL JOINT 1

2HC-23549-00-00

$139.99

19

CIRCLIP(47Y)

99009-35500-00

$8.49

20

SEAL, DUST 1

2HC-23527-01-00

$29.99

21

JOINT, UNIVERSAL 2

2HC-23845-00-00

$99.99

22

CIRCLIP(47Y)

99009-35500-00

$8.49

23

SEAL, DUST 2

2HC-23528-00-00

Unavailable

24

COLLAR 1

2HC-23754-00-00

Unavailable

25

BOLT, FLANGE

90105-12095-00

Unavailable

26

BOLT, FLANGE

90105-12100-00

Unavailable

27

NUT, SELF-LOCKING

90185-12007-00

$10.49

28

NUT, SELF-LOCKING

90185-12007-00

$10.49

29

WASHER, PLATE

90201-12045-00

$5.60

30

WASHER, PLATE

90201-12045-00

$5.60

31

COVER, THRUST 1

2HC-F2128-10-00

Unavailable

32

BOLT, WITH WASHER

90119-06226-00

Unavailable

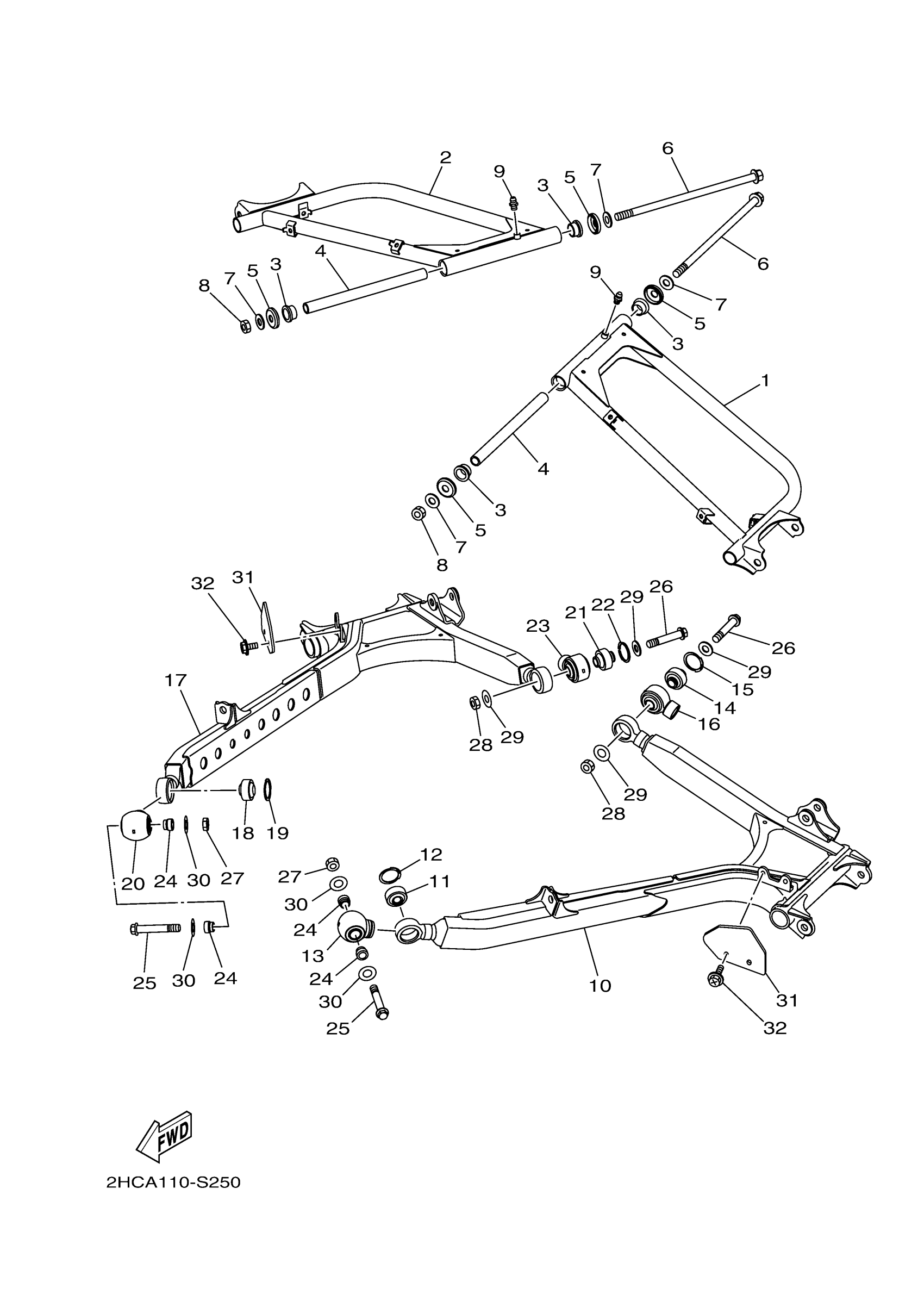

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 REAR ARM Diagram

RR. UPR. ARM COMP.

RR. UPR. ARM COMP.

BUSH, SOLID

COLLAR

COVER, THRUST 1

BOLT, FLANGE

WASHER, PLATE

NUT, SELF-LOCKING

NIPPLE, GREASE

RR. LWR. ARM COMP., 1

BALL JOINT 1

CIRCLIP(47Y)

SEAL, DUST 1

JOINT, UNIVERSAL 2

CIRCLIP(47Y)

SEAL, DUST 2

RR. LWR. ARM COMP., 2

BALL JOINT 1

CIRCLIP(47Y)

SEAL, DUST 1

JOINT, UNIVERSAL 2

CIRCLIP(47Y)

SEAL, DUST 2

COLLAR 1

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING

NUT, SELF-LOCKING

WASHER, PLATE

WASHER, PLATE

COVER, THRUST 1

BOLT, WITH WASHER
