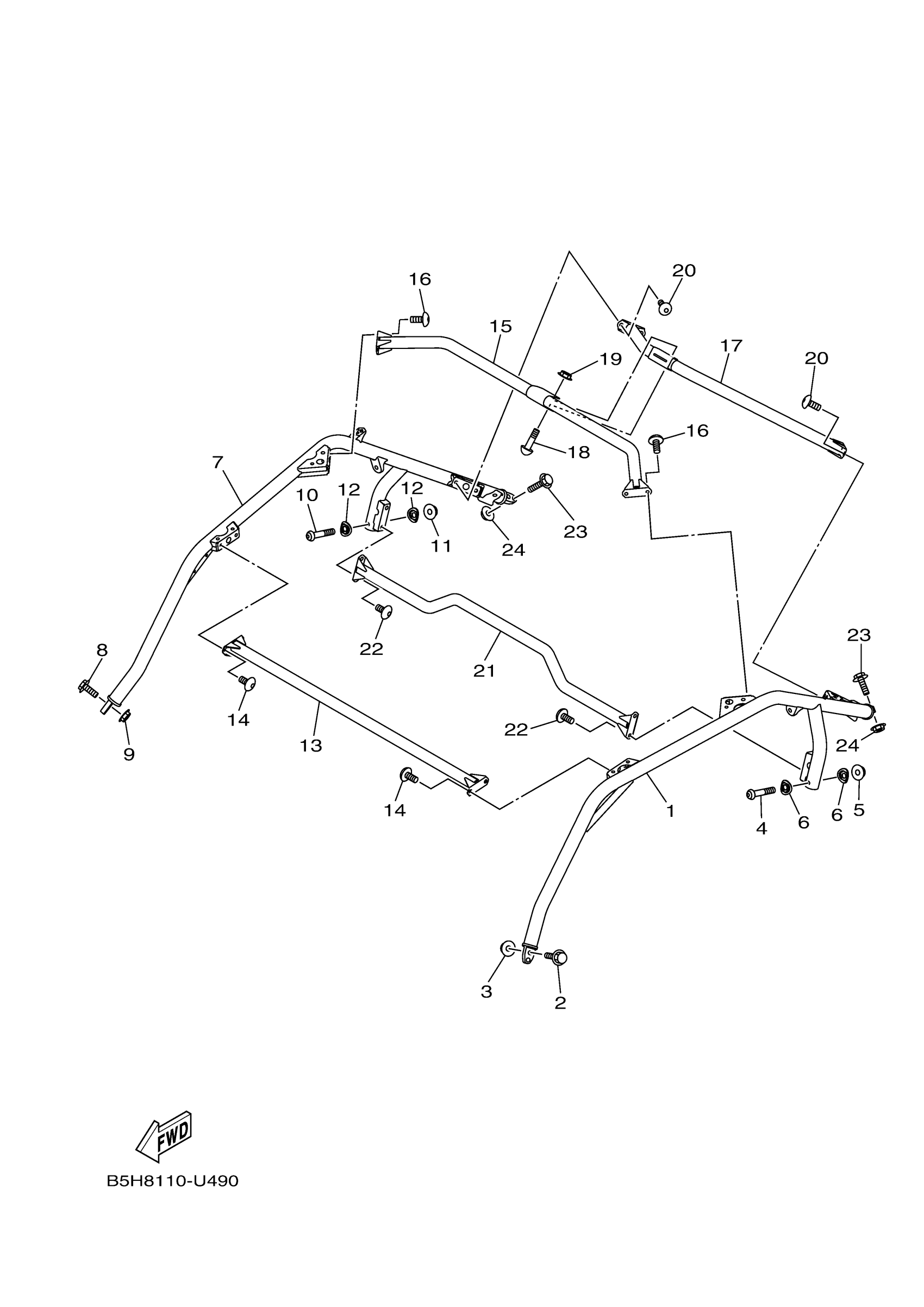

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$296.99

2

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

3

NUT, SELF-LOCKING

90185-10819-00

$0.90

4

BOLT, BUTTON HEAD

92012-10060-00

$3.13

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

5UG-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$296.99

8

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

9

NUT, SELF-LOCKING

90185-10819-00

$0.90

10

BOLT, BUTTON HEAD

92012-10060-00

$3.13

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

5UG-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

BAS-K8392-00-00

$180.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$182.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-10060-00

$3.13

19

NUT, SELF-LOCKING

90185-10011-00

$5.60

20

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

23

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

24

NUT, SELF-LOCKING

90185-10819-00

$0.90
