Description

Price

1

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

2

BOLT(6TD)

97080-08020-00

$2.91

3

NUT

90179-08015-00

Unavailable

4

PANEL, SWITCH

2HC-H2565-00-00

$43.99

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

BOX, BATTERY 1

2HC-H212B-01-00

Unavailable

8

INSU.

2HC-8233W-00-00

$4.94

9

INSULATOR 2

2HC-8253F-00-00

Unavailable

10

INSULATOR

2HC-8254E-00-00

Unavailable

11

SEAL 3

2HC-2173M-00-00

Unavailable

12

SEAL 4

2HC-2173N-00-00

$4.37

13

DAMPER, PLATE

90520-05020-00

$1.28

14

DAMPER, PLATE

90520-05021-00

Unavailable

15

DAMPER, PLATE

90520-05022-00

Unavailable

16

NUT, SPRING

90183-060A6-00

Unavailable

17

NUT, SPRING

90183-05008-00

Unavailable

18

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

19

BOLT, WITH WASHER

90119-06152-00

$7.49

20

GROMMET(4DN)

90480-01558-00

Unavailable

21

BRACKET, BATTERY

2HC-H2128-00-00

Unavailable

22

BOLT, FLANGE

95022-06014-00

Unavailable

23

PAD, SEAT

3C3-24741-00-00

Unavailable

24

BAND, BATTERY

2T4-82131-00-00

Unavailable

25

WIRE, MINUS LEAD

2HC-82116-01-00

Unavailable

26

BOLT, FLANGE

95812-06014-00

Unavailable

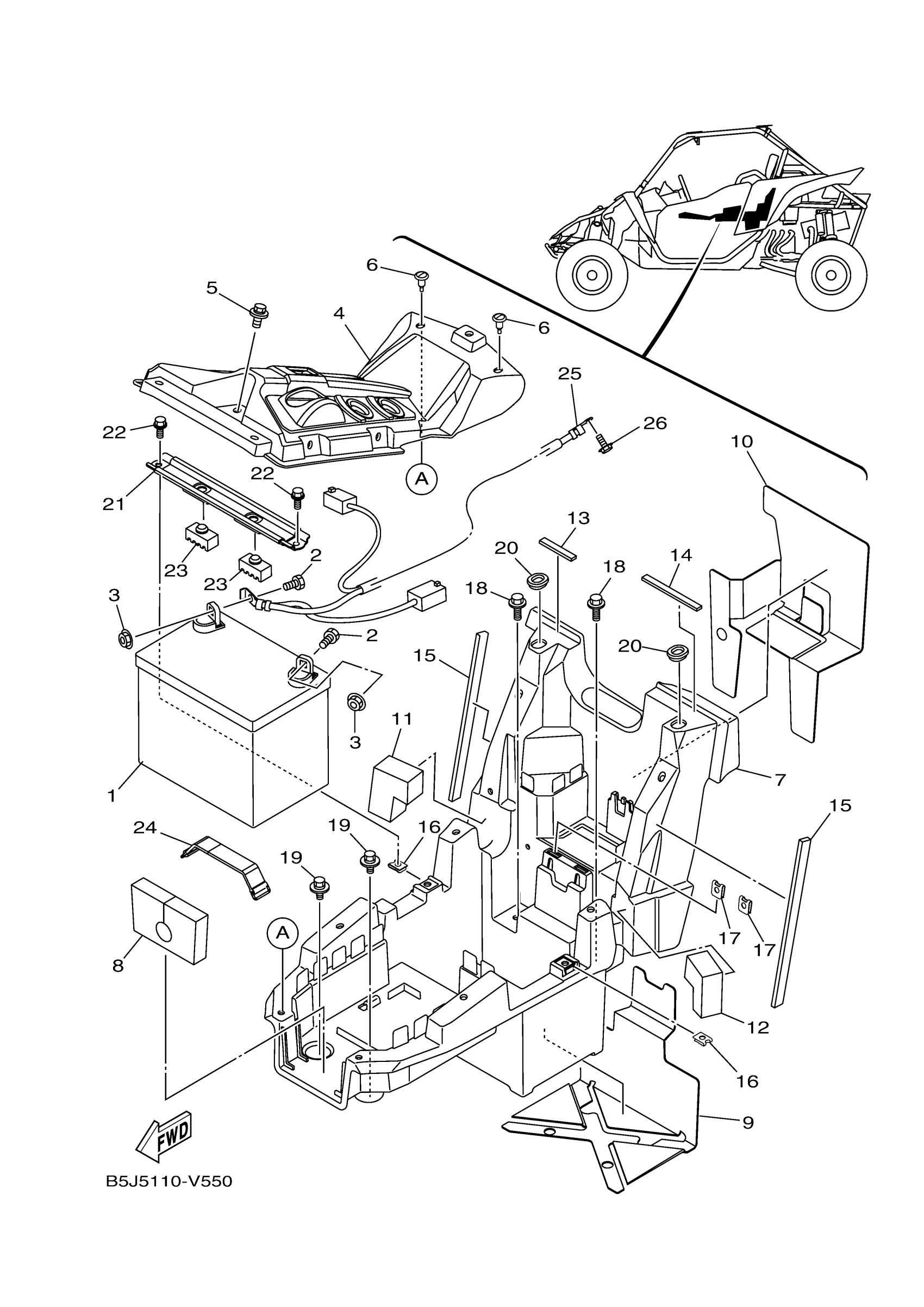

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 ELECTRICAL 2 Diagram

11-U1LD GS BATTERY

BOLT(6TD)

NUT

PANEL, SWITCH

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

BOX, BATTERY 1

INSU.

INSULATOR 2

INSULATOR

SEAL 3

SEAL 4

DAMPER, PLATE

DAMPER, PLATE

DAMPER, PLATE

NUT, SPRING

NUT, SPRING

BOLT, SPECIAL 1

BOLT, WITH WASHER

GROMMET(4DN)

BRACKET, BATTERY

BOLT, FLANGE

PAD, SEAT

BAND, BATTERY

WIRE, MINUS LEAD

BOLT, FLANGE
