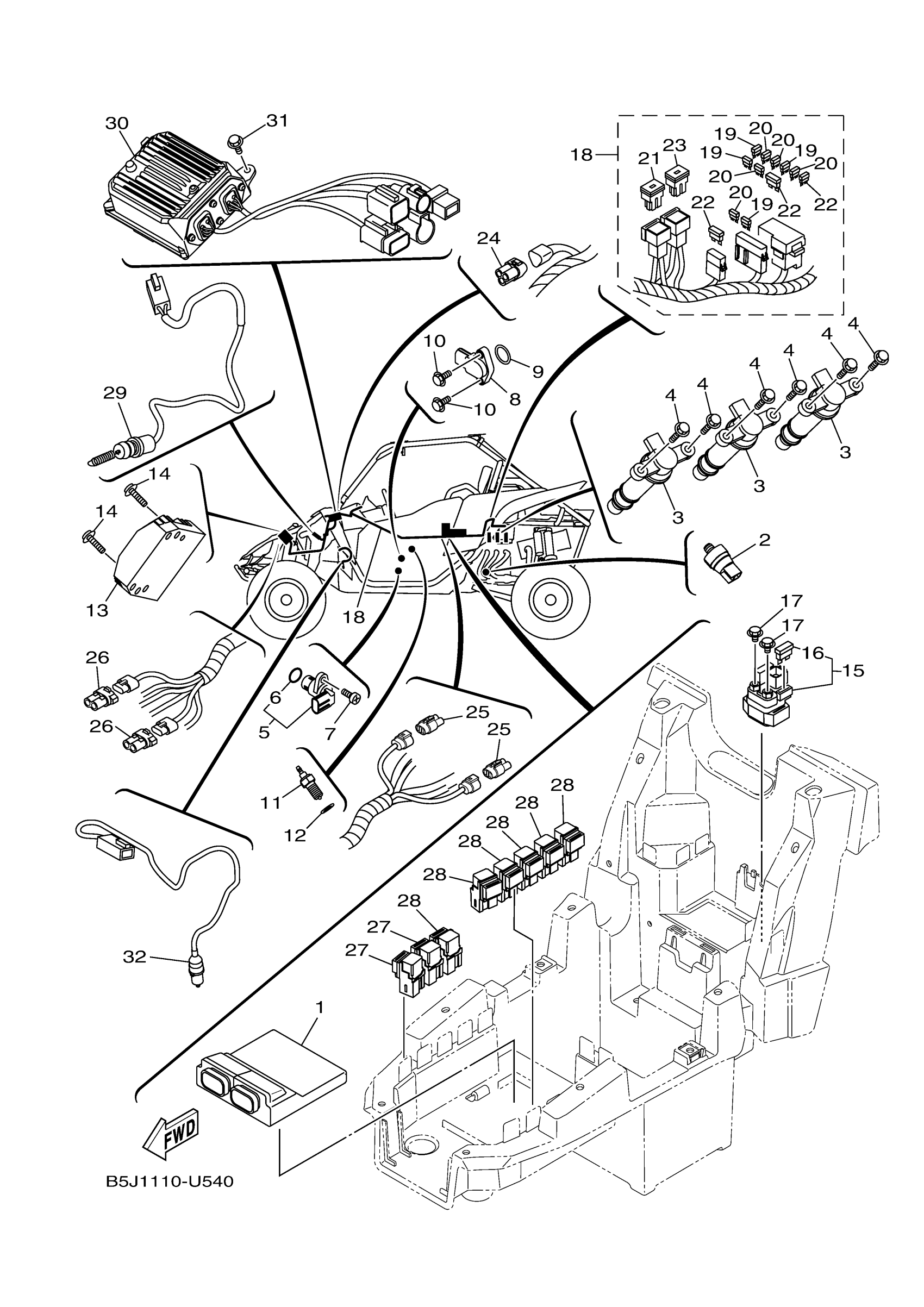

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

B5J-8591A-11-00

$1,275.99

2

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

3

IGNITION COIL ASSY

2HC-82310-00-00

$94.84

4

BOLT, FLANGE

95817-06025-00

Unavailable

5

SENSOR, SPEED

1TP-83755-00-00

$62.98

6

O-RING

4D9-81168-00-00

$4.04

7

BOLT,SOCKET

91317-06016-00

$1.15

8

SENSOR, GEAR POSITION

2HC-85899-10-00

$71.13

9

O-RING

93210-17008-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$5.86

11

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

12

GASKET (1KH,1.0T)

90430-10148-00

$4.44

13

RECTIFIER & REGULATOR ASSY

B5H-81960-00-00

Unavailable

14

BOLT, FLANGE

90105-06833-00

$1.63

15

STARTER RELAY ASSY (RC19-077A)

4D3-81940-00-00

$85.95

16

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

17

BOLT, FLANGE

95022-06008-00

Unavailable

18

WIRE HARNESS ASSY

B5J-82590-11-00

Unavailable

19

FUSE (15A)

67F-82151-50-00

$3.48

20

. FUSE (10A)

67F-82151-40-00

$6.07

21

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

22

FUSE

5JJ-82151-60-00

Unavailable

23

FUSE (50A)

5JW-82151-10-00

Unavailable

24

CONNECTOR

8CR-82378-00-00

Unavailable

25

CONNECTOR

B57-82378-00-00

Unavailable

26

CONNECTOR

B5H-82378-00-00

Unavailable

27

RELAY ASSY

5DM-81950-01-00

Unavailable

28

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

29

STOP SWITCH ASSY

B90-82530-01-00

Unavailable

30

POWER STRG. CONT.

B5H-859A0-01-00

Unavailable

31

BOLT, FLANGE

95817-06016-00

Unavailable

32

SWITCH

5KM-82917-00-00

Unavailable
