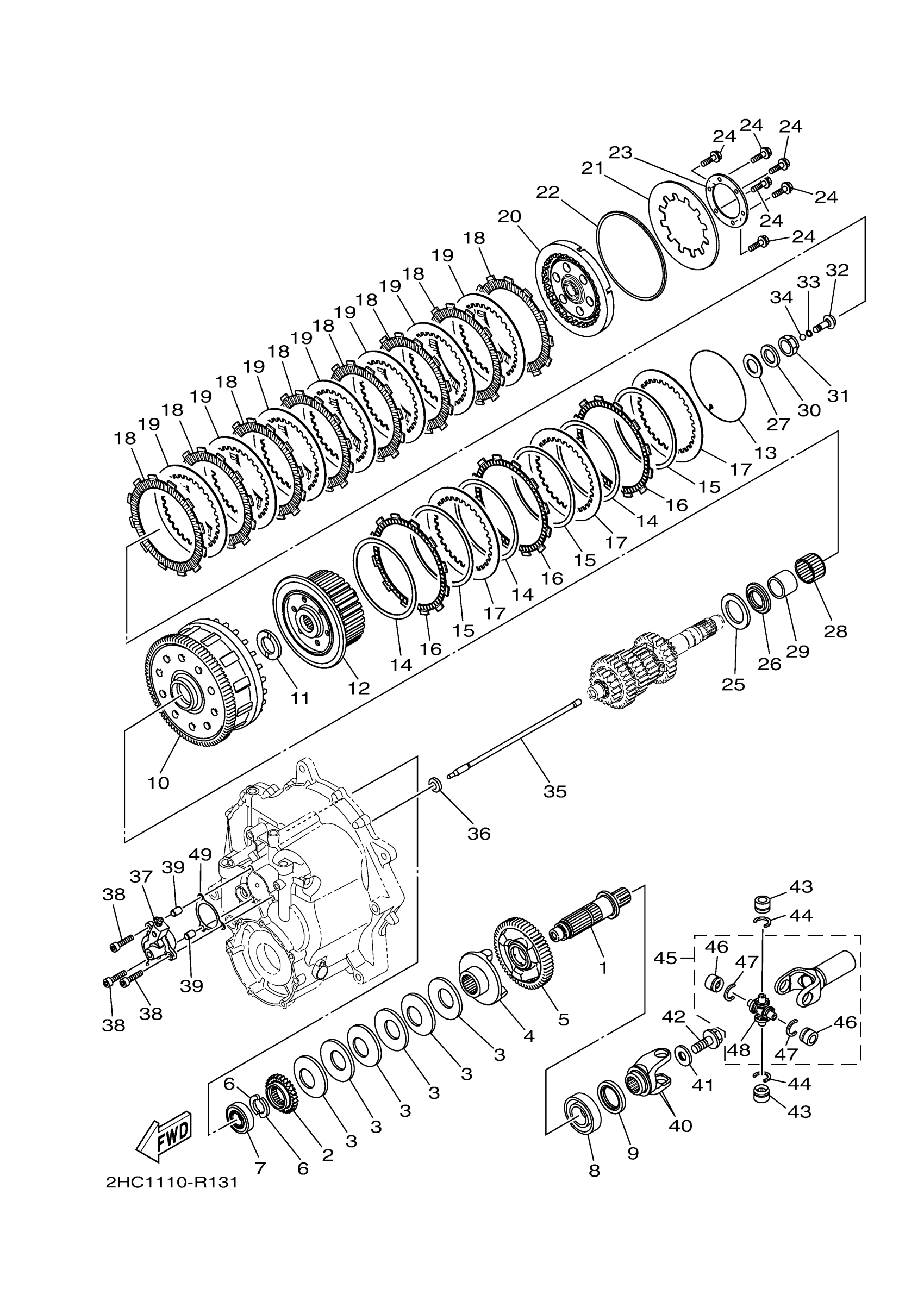

Yamaha YXZ10YMXNL (YXZ1000R) B5JC 2022 CLUTCH Diagram
#
1
SHAFT 2
2HC-11465-00-00
Unavailable
2
GEAR, PUMP DRIVE
2HC-13324-00-00
Unavailable
3
SPRING, DAMPER
2HC-16318-01-00
$21.99
4
CAM, DAMPER 1
2HC-16317-00-00
Unavailable
5
GEAR, PRIMARY DRIVE
2HC-16111-00-00
Unavailable
6
WASHER, THRUST
23P-17529-00-00
$33.99
7
BEARING
93306-20483-00
$44.99
8
BEARING (3Y1)
93306-30525-00
$63.99
9
OIL SEAL
93102-35039-00
$11.49
10
PRIMARY DRIVEN GEAR COMP.
2HC-16150-00-00
$493.99
11
PLATE, THRUST 1
1D7-16154-00-00
$36.99
12
BOSS, CLUTCH
2HC-16371-00-00
$118.99
13
RING, CLUTCH BOSS SPRING SET
2H7-16385-00-00
$27.99
14
PLATE, SEAT
36Y-16384-00-00
$28.99
15
SPRING, CLUTCH BOSS
36Y-16383-00-00
$68.99
16
PLATE, FRICTION 2
1PK-16331-00-00
Unavailable
17
PLATE, CLUTCH 2
2H7-16325-10-00
Unavailable
18
PLATE, FRICTION
5YU-16321-00-00
Unavailable
19
PLATE, CLUTCH 2
2H7-16325-10-00
Unavailable
20
PRESSURE PLATE ASS
2HC-16350-01-00
Unavailable
21
SPRING, CLUTCH 2
36Y-16334-00-00
Unavailable
22
HOUSING, SPRING
36Y-16335-00-00
Unavailable
23
PLATE, PRESSURE 2
1TX-16352-00-00
Unavailable
24
BOLT, FLANGE
95817-06025-00
Unavailable
25
SPRING.,ABSORBER
2HC-16587-00-00
Unavailable
26
SPACER 3
2HC-16183-00-00
Unavailable
27
WASHER, PLATE
90201-22013-00
Unavailable
28
BEARING
93310-33560-00
Unavailable
29
SPACER 1
2HC-16181-00-00
Unavailable
30
WASHER, CONICAL SPRING
90208-22003-00
Unavailable
31
NUT
90179-22010-00
Unavailable
32
ROD, PUSH 1
4KG-16356-00-00
Unavailable
33
O-RING (26H)
93210-06632-00
Unavailable
34
BALL (498)
93511-32027-00
Unavailable
35
ROD, PUSH 2
2HC-16357-00-00
Unavailable
36
OIL SEAL(12E)
93109-08061-00
Unavailable
37
PUSH LEVER COMP.
2HC-16381-00-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
39
PIN, DOWEL
99530-08012-00
Unavailable
40
YOKE, JOINT 2
2HC-46147-00-00
Unavailable
41
WASHER (838)
90201-12191-00
Unavailable
42
BOLT, FLANGE
90105-12094-00
Unavailable
43
BEARING
93399-99948-00
Unavailable
44
CIRCLIP (4X7)
93440-20088-00
Unavailable
45
CROSS JOINT COMP. 3
2HC-46108-00-00
Unavailable
46
BEARING
93399-99948-00
Unavailable
47
CIRCLIP (4X7)
93440-20088-00
Unavailable
48
SPIDER
2HC-46187-00-00
Unavailable
49
GASKET
2HC-17472-00-00
Unavailable
