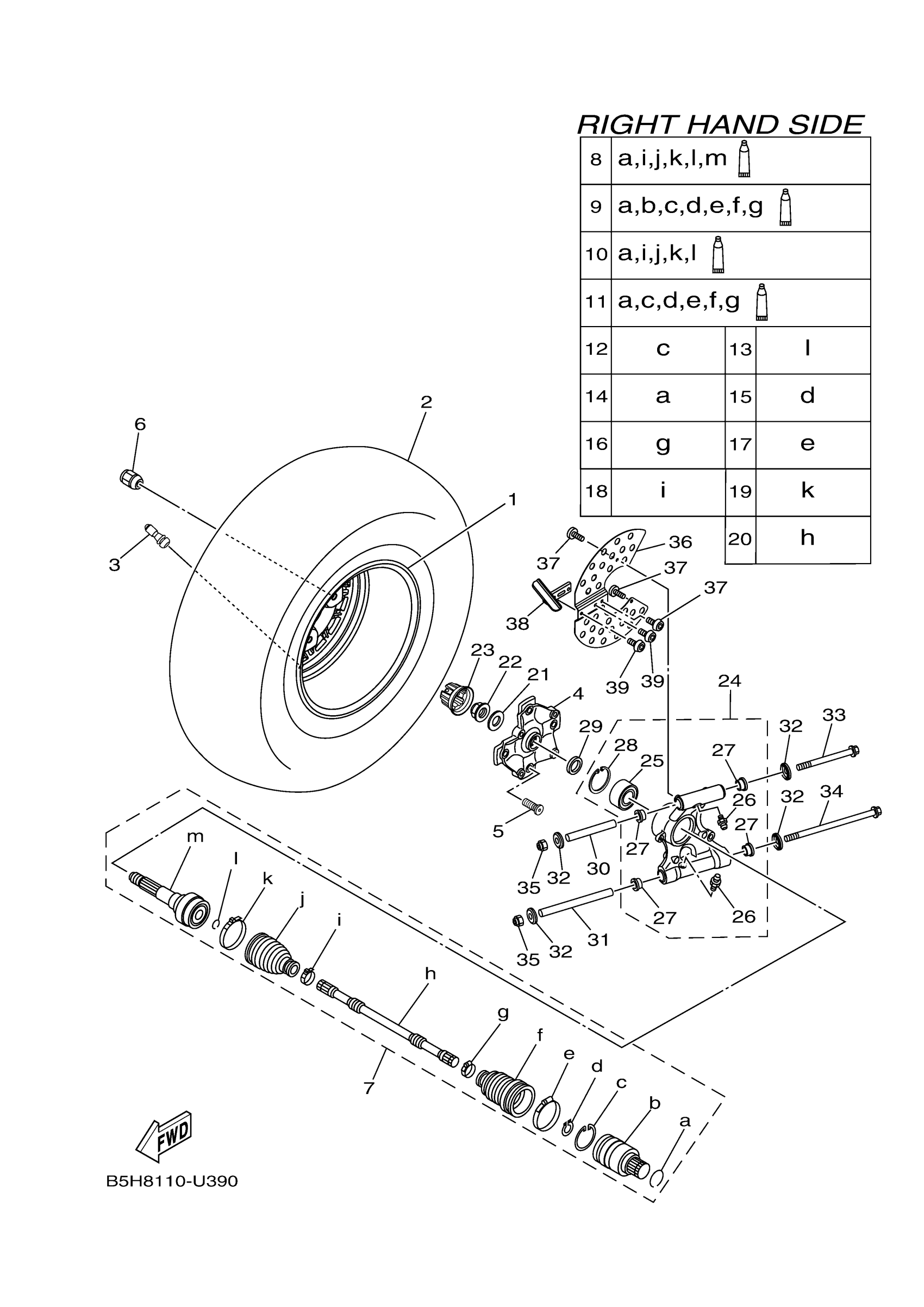

Yamaha YXZ10YMXKD (YXZ1000R EPS) B5J3 2019 REAR WHEEL 2 Diagram
#
1
WHEEL, CAST 2
B5H-F533P-01-00
$303.99
2
TIRE
94111-14812-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB, FRONT
B5H-F5111-02-00
$131.99
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12800-00
$7.49
7
REAR DRIVE SHAFT A
2HC-2531H-13-00
$275.99
8
BALL JOINT SET
2HC-2530T-12-00
Unavailable
9
DOUBLE OFF SET JOINT
BG4-2530V-01-00
$501.99
10
BOOT SET (BALL JOINT)
2HC-2530X-12-00
Unavailable
11
BOOT SET(DOUBLE OFFSET JOINT)
2HC-2530Y-01-00
$53.99
12
CLIP, SPRING
2HC-2536E-00-00
$4.99
13
RING 1
16B-25185-00-00
$4.94
14
CLIP, SPRING
16B-2536E-00-00
$4.63
15
SNAP RING
2HC-2512J-00-00
$4.58
16
BAND
2HC-25719-00-00
Unavailable
17
BAND
2HC-26293-00-00
Unavailable
18
BAND
2HC-26397-12-00
Unavailable
19
BOOT BAND (SMALL)
2HC-2512G-10-00
Unavailable
20
SHAFT
2HC-259A2-00-00
Unavailable
21
WASHER, PLATE
90201-25023-00
Unavailable
22
NUT
90179-24006-00
Unavailable
23
CAP, WHEEL
2HC-F512A-00-00
Unavailable
24
REAR KNUCKLE ASSY.
B5H-F532F-00-00
Unavailable
25
BEARING
93305-00603-00
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
28
CIRCLIP (70R)
93420-72065-00
Unavailable
29
WASHER, PLATE (2H7)
90201-30666-00
Unavailable
30
COLLAR
90387-12060-00
Unavailable
31
COLLAR
90387-12061-00
Unavailable
32
COVER, THRUST 1
1XD-23517-01-00
Unavailable
33
BOLT, FLANGE
90105-12066-00
Unavailable
34
BOLT, FLANGE
90105-12097-00
Unavailable
35
NUT, SELF-LOCKING
90185-12007-00
Unavailable
36
RING, WHEEL RR. 2
2HC-F535C-00-00
Unavailable
37
BOLT,HEX. SOCKET BUTTON
90111-06096-00
Unavailable
38
PLATE, GUIDE 2
2HC-F2342-00-00
Unavailable
39
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
