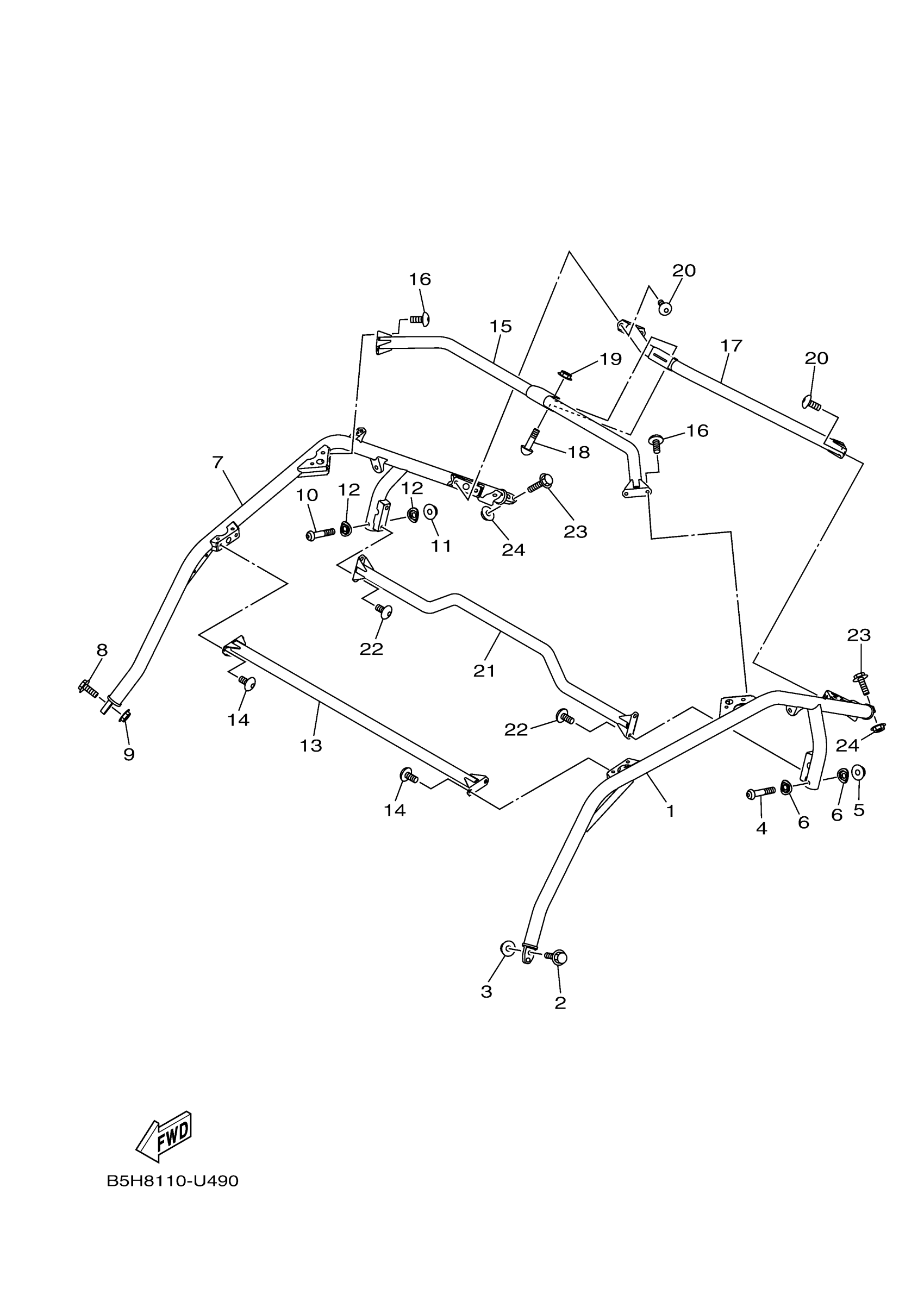

Yamaha YXZ10YMXKD (YXZ1000R EPS) B5J3 2019 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$294.52

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

3

NUT, SELF-LOCKING

90185-10011-00

$3.76

4

BOLT, BUTTON HEAD

92012-10060-00

$2.95

5

NUT, SELF-LOCKING

90185-10011-00

$3.76

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$294.52

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

9

NUT, SELF-LOCKING

90185-10011-00

$3.76

10

BOLT, BUTTON HEAD

92012-10060-00

$2.95

11

NUT, SELF-LOCKING

90185-10011-00

$3.76

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

B5H-K8392-00-00

$164.20

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$164.92

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-10060-00

$2.95

19

NUT, SELF-LOCKING

90185-10011-00

$3.76

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

23

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

24

NUT, SELF-LOCKING

90185-10011-00

$3.76
