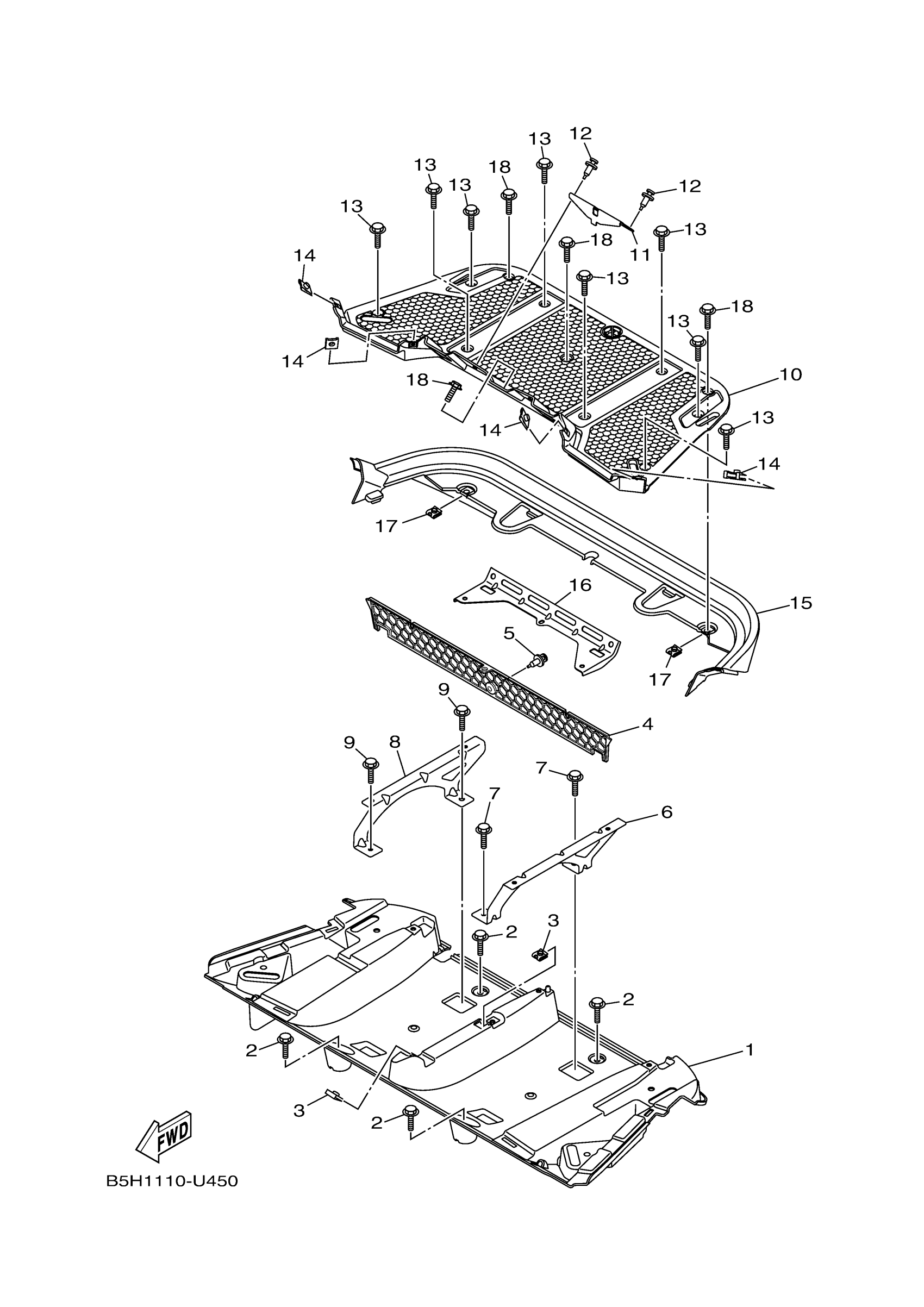

Yamaha YXZ10YMXKD (YXZ1000R EPS) B5J3 2019 CARRIER Diagram

BOX, CARRIER UNDER

B5H-F4852-01-00

$55.99

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

NUT, SPRING

90183-060A6-00

$5.49

GRILL, AIR INTAKE

B5H-F837R-00-00

$7.49

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

STAY, CARRIER

B5H-F1271-00-00

$13.99

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

STAY CARRIER 2

B5H-F137H-00-00

$13.99

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

CARRIER, FRONT

B5H-F4841-01-00

$43.99

BRACKET 1

B5H-F8426-00-00

$5.49

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

NUT, SPRING

90183-060A6-00

$5.49

PANEL, FRAME RR.

B5H-F1235-00-00

$26.99

STAY, SUPPORT 2

B5H-F832T-00-00

Unavailable

NUT, SPRING

90183-060A6-00

$5.49

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98
