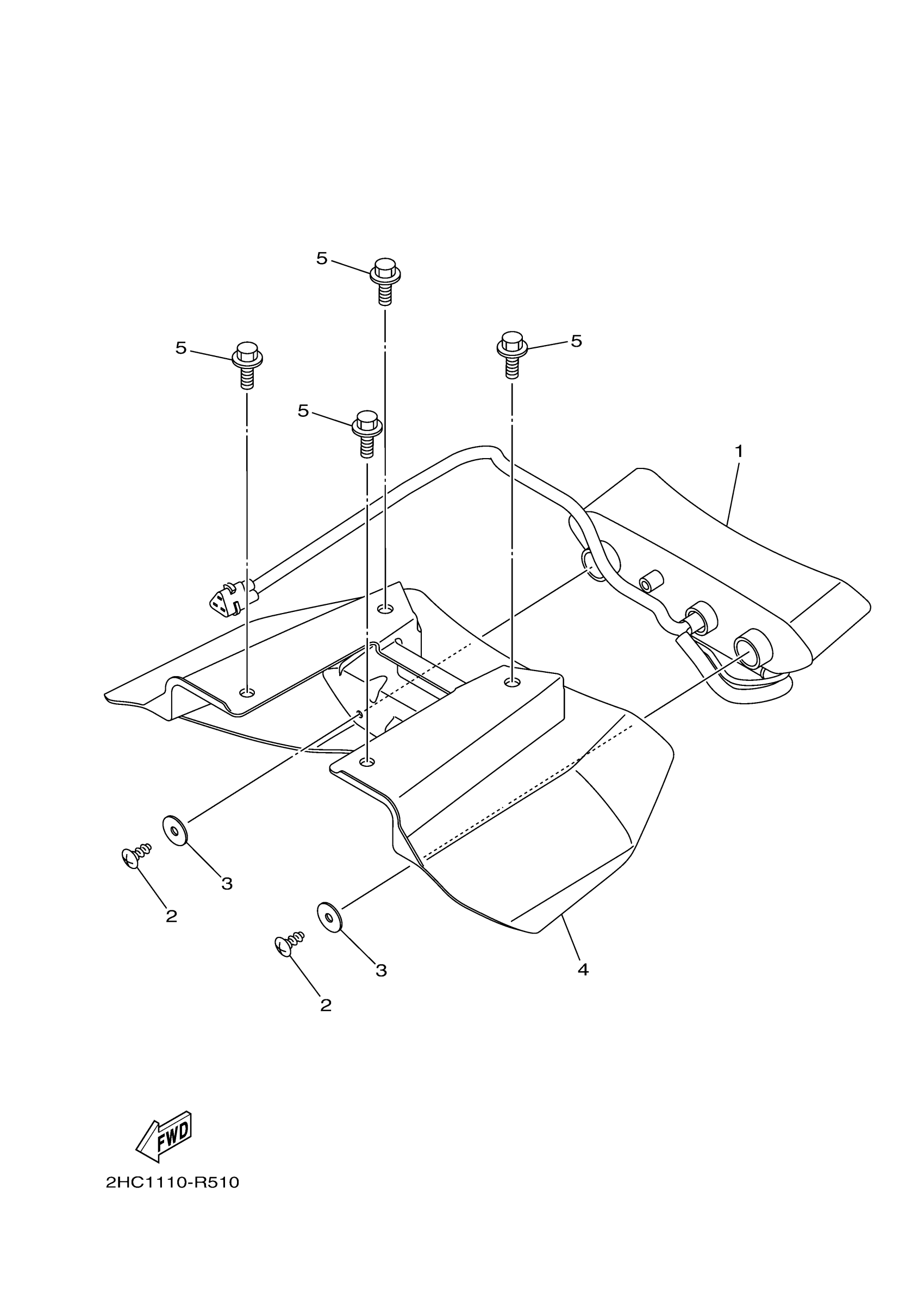

Yamaha YXZ10YMXJD (YXZ1000R EPS) 2HCP 2018 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASS

1S3-84710-10-00

$166.64

2

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

3

WASHER PLATE 829771780000

90201-05033-00

$6.62

4

COVER, TAILLIGHT

2HC-F172X-00-00

$44.71

5

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15
