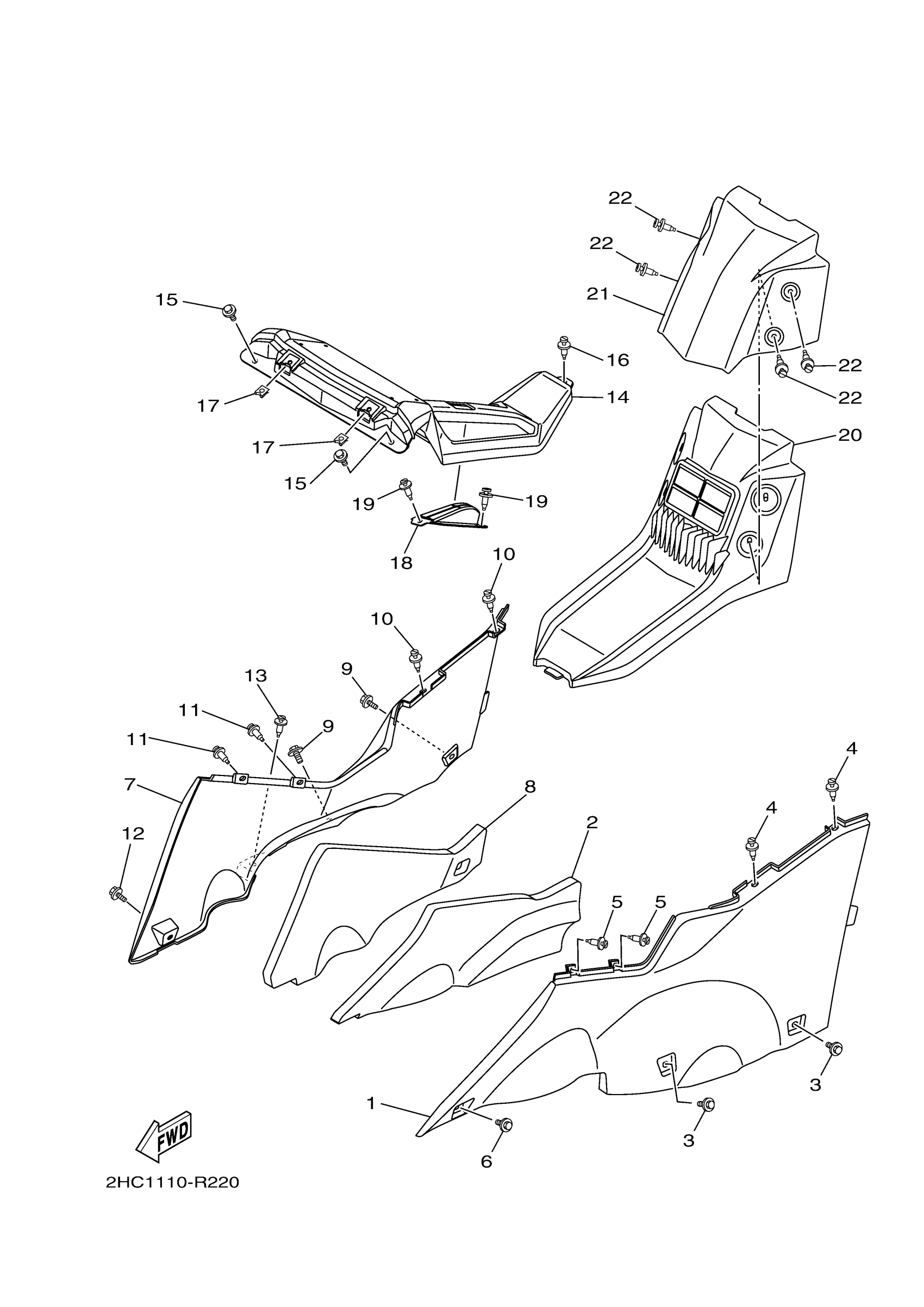

Yamaha YXZ10YMXJD (YXZ1000R EPS) 2HCP 2018 SIDE COVER 2 Diagram

#

Description
Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$35.26

2

INSULATOR 3

2HC-F172S-10-00

$52.74

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

PANEL, CONSOLE 2

2HC-F837M-00-00

$33.59

8

INSULATOR 4

2HC-F173S-11-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

11

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

12

BOLT, WITH WASHER

90119-06226-00

$2.12

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

14

COVER, TOP

2HC-F171A-40-00

$115.67

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

NUT, SPRING

90183-060A6-00

Unavailable

18

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

19

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

20

COVER, BATTERY

2HC-F124E-40-00

Unavailable

21

COVER

2HC-F117F-21-00

Unavailable

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
