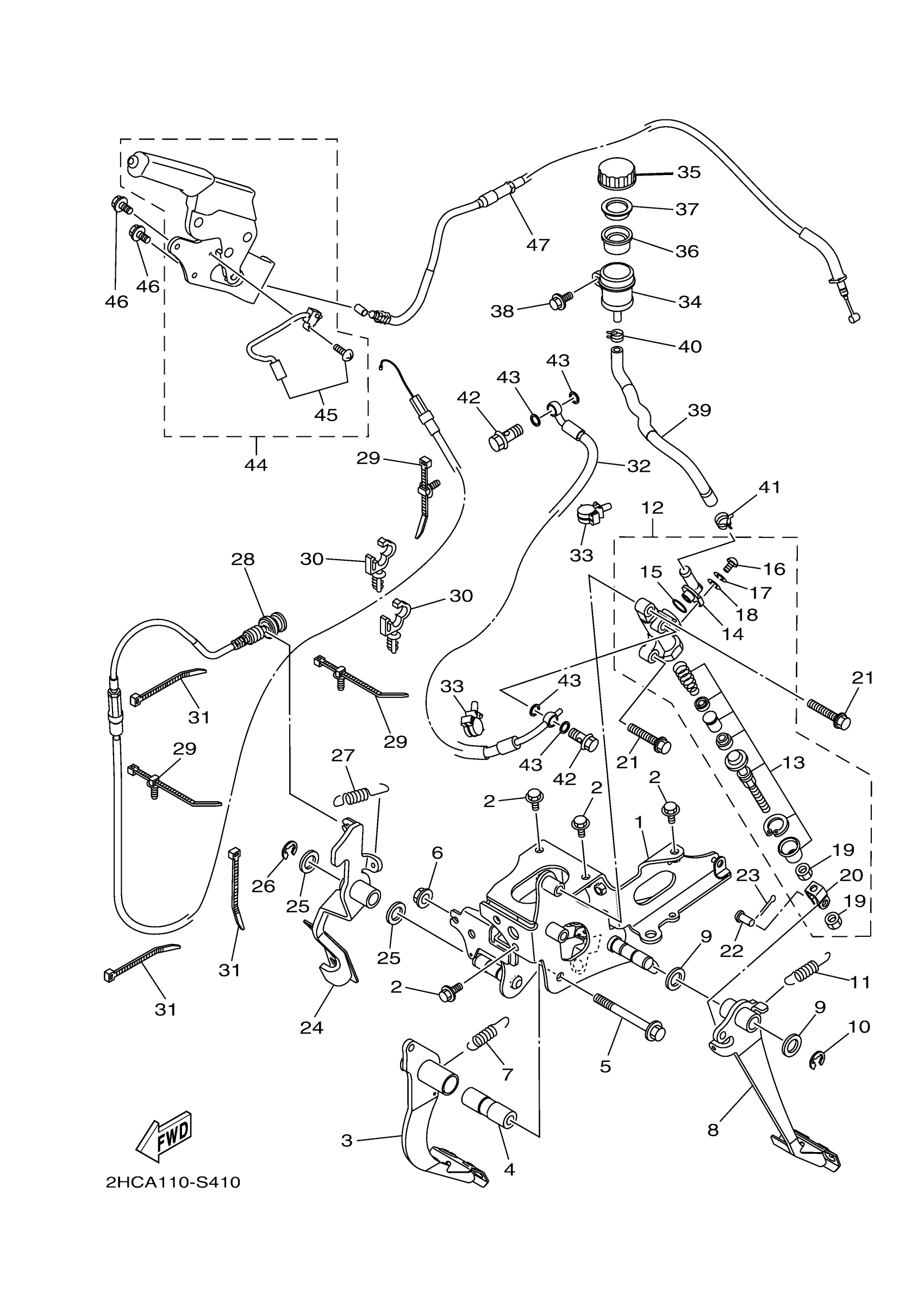

Yamaha YXZ10YMXJD (YXZ1000R EPS) 2HCP 2018 PEDAL WIRE Diagram
#
3
PEDAL, BRAKE
2HC-F7200-00-00
Unavailable
4
COLLAR
90387-10843-00
Unavailable
12
MASTER CYLINDER ASSY (CLUTCH)
2HC-26450-00-00
Unavailable
13
CYLINDER KIT, MASTER
2HC-25808-00-00
Unavailable
14
JOINT
1AE-2582A-00-00
Unavailable
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
WASHER, PLAIN (646)
92990-04600-00
Unavailable
19
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
20
JOINT
2YK-27222-00-00
Unavailable
21
BOLT, FLANGE
95817-08050-00
Unavailable
22
PIN, CLEVIS
90240-08005-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
ACCEL PEDAL ASSY
2HC-F7801-01-00
Unavailable
28
WIRE, THROTTLE 1
2HC-26311-13-00
Unavailable
29
CLAMP
5B4-F1338-00-00
Unavailable
30
CLAMP
90464-12830-00
Unavailable
31
CLAMP
90464-48800-00
Unavailable
32
HOSE, CLUTCH 1
2HC-F6472-00-00
Unavailable
33
CLAMP
90464-16012-00
Unavailable
34
TANK, RESERVOIR
5JJ-25894-01-00
Unavailable
35
CAP, RESERVOIR
3XP-25852-50-00
Unavailable
36
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
Unavailable
37
BUSH,DIAPHRAGM
2VN-25855-00-00
Unavailable
38
BOLT, WITH WASHER
90119-06137-00
Unavailable
39
HOSE, RESERVOIR
2HC-F5895-00-00
Unavailable
40
CLIP (7K7)
90467-11044-00
Unavailable
41
CLIP (5K4)
90467-14057-00
Unavailable
42
BOLT, UNION
90401-10015-00
Unavailable
43
WASHER, PLATE(481)
90201-10118-00
Unavailable
44
PARKING LEVER ASSY
BDW-F5690-00-00
Unavailable
45
. SWITCH COMP
5UG-H251S-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
47
WIRE, BRAKE 1
2HC-26341-01-00
Unavailable
