Description

Price

1

MAIN SWITCH ASSY

1XD-H2510-11-00

$32.99

2

CAP, KEY

5UG-H2579-00-00

$9.99

3

CLAMP(53Y)

90464-15065-00

Unavailable

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

90464-14800-00

$3.40

6

CLAMP

90464-25826-00

Unavailable

7

CLAMP

90464-20804-00

Unavailable

8

CLAMP (8M1)

90464-30040-00

$8.49

9

CLAMP

90464-37257-00

Unavailable

10

CLAMP

5B4-F1338-00-00

$3.33

11

CLAMP

1NS-F1338-00-00

$3.33

12

CLAMP(JN6)

90464-40825-00

$3.05

13

CLAMP

90464-48800-00

Unavailable

14

CLAMP

90464-51800-00

$14.99

15

TERMINAL COMP.

1HP-H254B-10-00

$18.99

16

SWITCH, LAMP

2HC-82526-01-00

Unavailable

17

SWITCH, SELECT

2HC-87280-01-00

Unavailable

18

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

19

BOLT(6A1)

97095-05016-00

Unavailable

20

WASHER, PLAIN (646)

92990-05600-00

Unavailable

21

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

22

BUZZER

2MB-83383-00-00

Unavailable

23

BOLT(3JK)

97027-05020-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

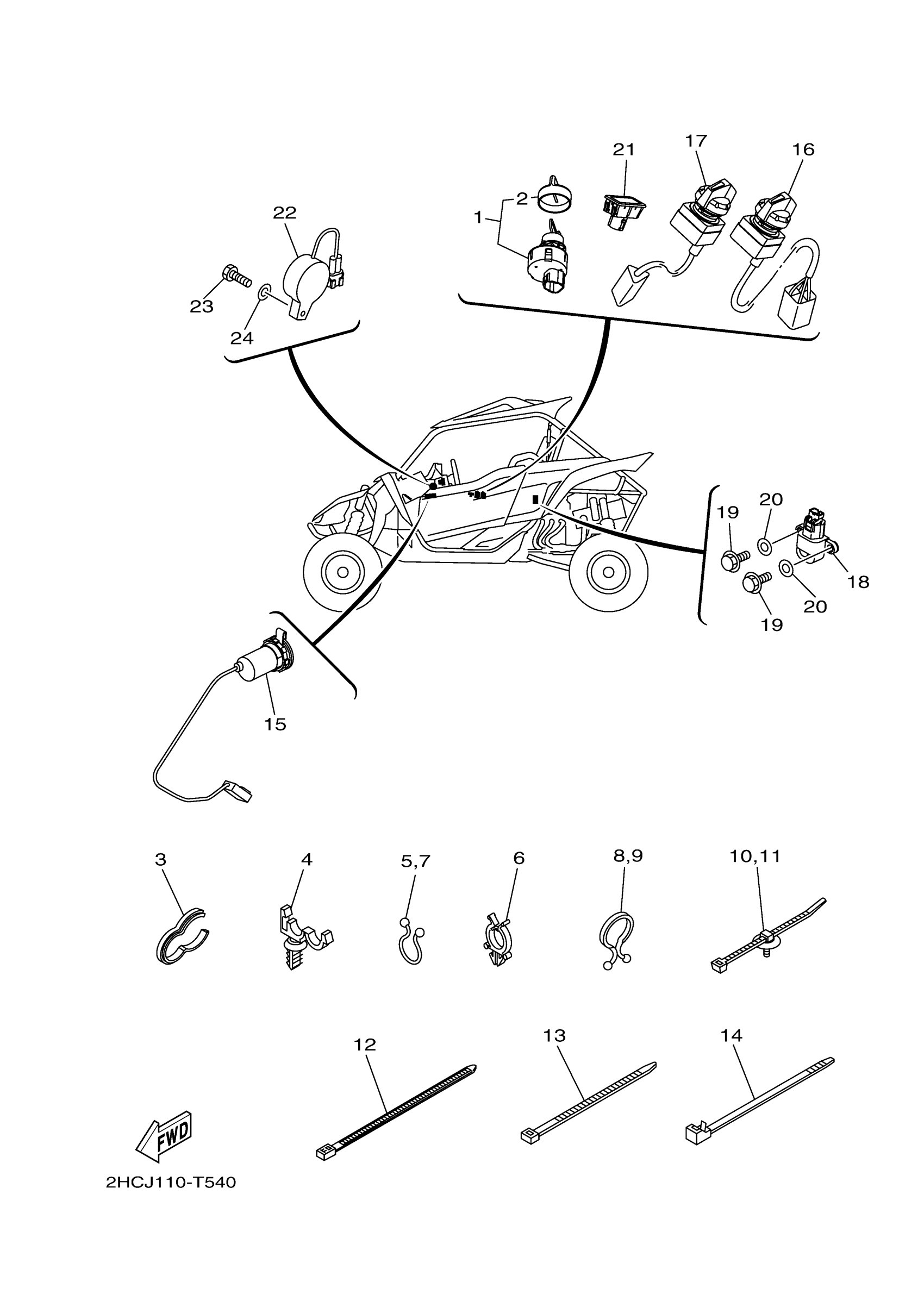

Yamaha YXZ10YMXJD (YXZ1000R EPS) 2HCP 2018 ELECTRICAL 3 Diagram

MAIN SWITCH ASSY

CAP, KEY

CLAMP(53Y)

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP (8M1)

CLAMP

CLAMP

CLAMP

CLAMP(JN6)

CLAMP

CLAMP

TERMINAL COMP.

SWITCH, LAMP

SWITCH, SELECT

LEAN ANGLE SENSOR

BOLT(6A1)

WASHER, PLAIN (646)

PILOT LIGHT ASSY

BUZZER

BOLT(3JK)

WASHER, PLAIN (646)
