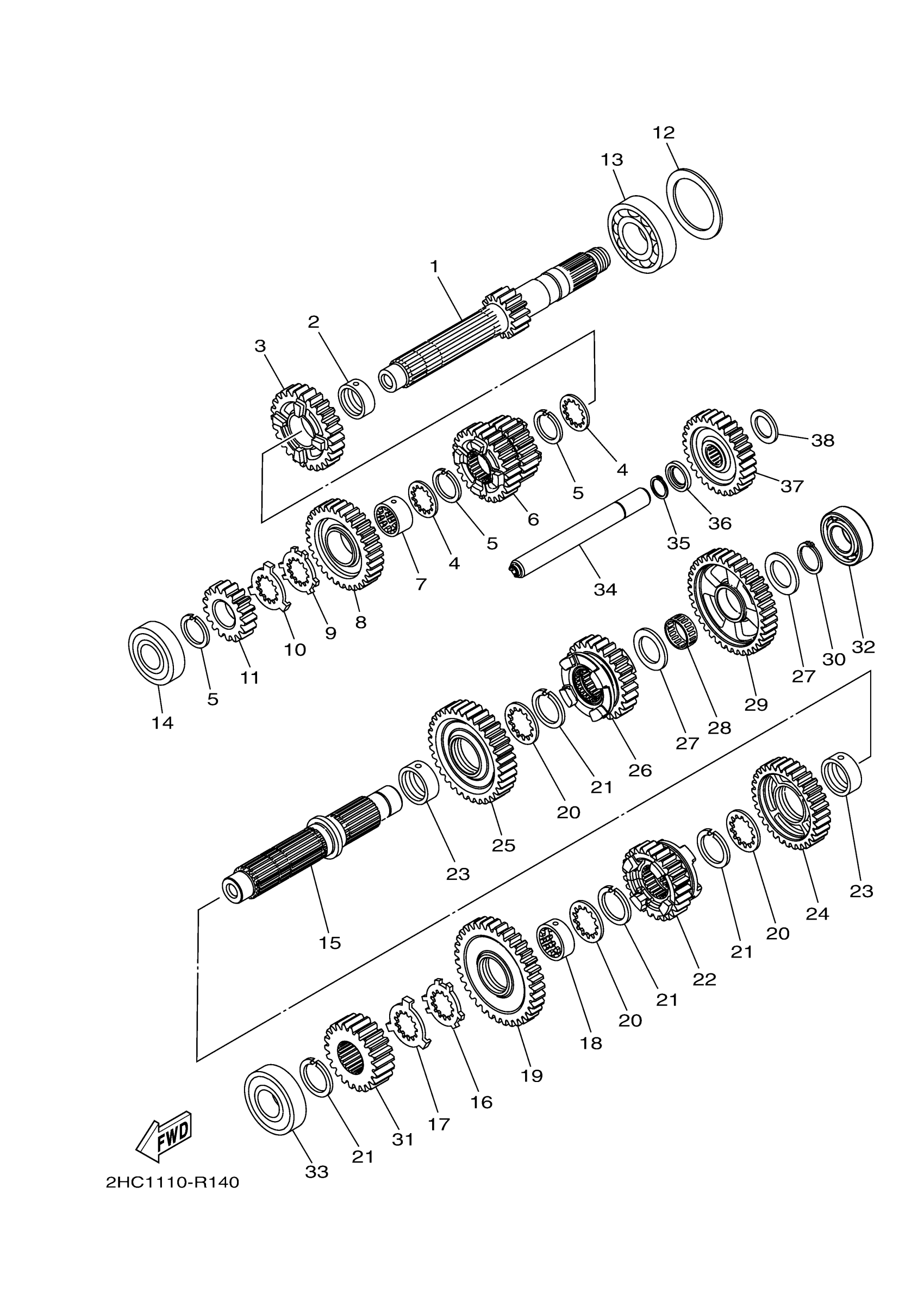

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (15T)

2HC-17411-00-00

$142.99

2

COLLAR

90387-28003-00

$29.99

3

GEAR, 4TH PINION (26T)

2HC-17141-00-00

$101.99

4

WASHER

90209-25011-00

$8.49

5

CIRCLIP

93440-28184-00

$4.67

6

GEAR, 2ND PINION (26T/22T)

2HC-17121-00-00

$238.99

7

COLLAR

90387-25023-00

$41.99

8

GEAR, 5TH PINION (31T)

2HC-17151-00-00

$122.99

9

WASHER, CLAW

90214-25004-00

$9.49

10

WASHER, CLAW

90214-25003-00

$9.49

11

GEAR,1ST PINION (17T)

2HC-17111-00-00

$63.99

12

WASHER, PLATE

90201-51013-00

$13.49

13

BEARING

93306-37817-00

$72.99

14

BEARING

93306-37215-00

$47.99

15

AXLE, DRIVE

2HC-17421-00-00

$163.99

16

WASHER, CLAW

90214-29002-00

Unavailable

17

WASHER, CLAW

90214-28002-00

Unavailable

18

COLLAR

90387-28004-00

Unavailable

19

GEAR, 1ST WHEEL (35T)

2HC-17211-00-00

Unavailable

20

WASHER

90209-28008-00

Unavailable

21

CIRCLIP

93440-31187-00

Unavailable

22

GEAR, 5TH WHEEL

B57-17251-00-00

Unavailable

23

COLLAR

90387-31003-00

Unavailable

24

GEAR, 3RD WHEEL

B57-17231-00-00

Unavailable

25

GEAR, 2ND WHEEL

B57-17221-00-00

Unavailable

26

GEAR, 4TH WHEEL

B57-17241-00-00

Unavailable

27

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

28

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

Unavailable

29

GEAR, REVERSE WHEEL 2 (37T)

2HC-17253-00-00

Unavailable

30

CIRCLIP (256)

93410-25017-00

Unavailable

31

GEAR, MIDDLE DRIVE (22T)

2HC-17582-00-00

Unavailable

32

BEARING

93306-20595-00

Unavailable

33

BEARING

93306-30585-00

Unavailable

34

AXLE, IDLE

2HC-17432-00-00

Unavailable

35

CIRCLIP (525)

93410-17037-00

Unavailable

36

RETAINER, SPRING

2HC-18473-00-00

Unavailable

37

REVERSE WHEEL ASSY (28T)

2HC-1724A-00-00

Unavailable

38

WASHER PLATE 306155610000

90201-17257-00

Unavailable
