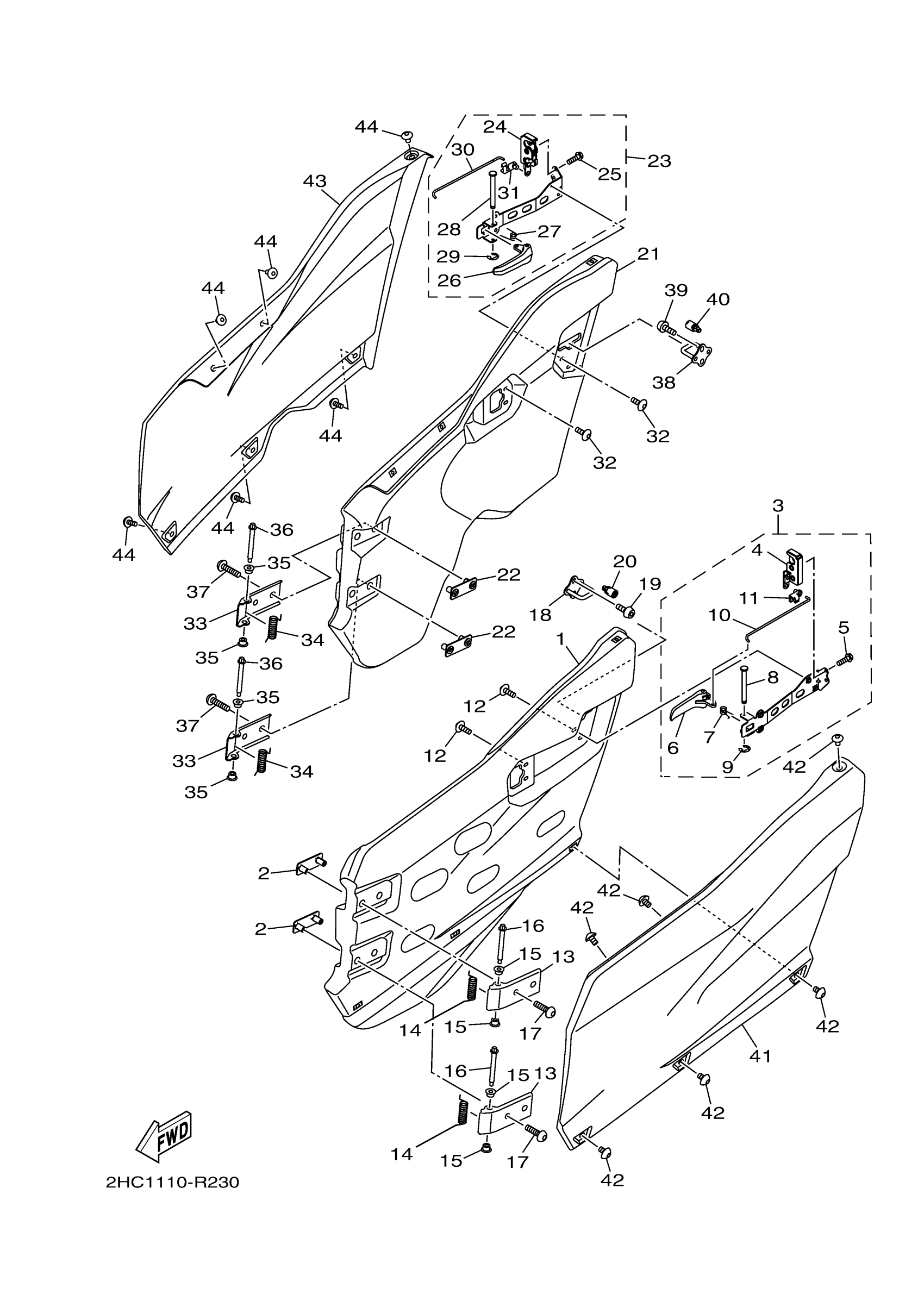

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 SIDE COVER 3 Diagram

#

Description
Price

1

PNL., DOOR FR. LH

2HC-K8557-01-00

$143.99

2

NUT,PLATE

2HC-F1736-00-00

$9.49

3

BODY, LATCH 1

2HC-K7171-00-00

$51.99

4

LOCK ASSY

2HC-F16A0-00-00

Unavailable

5

BOLT, FLANGE

95817-06020-00

$3.81

6

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

7

SPRING

2HC-F1742-00-00

$2.96

8

. PIN

90249-05801-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

Unavailable

10

. ROD 1

2HC-F7247-00-00

Unavailable

11

. CLIP, CABLE

2HC-F2805-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

13

STAY, FR. DOOR 1

2HC-K8554-00-00

$6.99

14

SPRG., HINGE

2HC-F463G-01-00

$4.73

15

COLLAR

2HC-F1748-00-00

$2.50

16

BOLT

90109-068A8-00

Unavailable

17

BOLT

90109-08856-00

Unavailable

18

LOCK

2HC-F178J-00-00

Unavailable

19

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

20

PAD

2MB-F8378-00-00

Unavailable

21

PNL., DOOR FR. RH

2HC-K8558-01-00

Unavailable

22

NUT,PLATE

2HC-F1736-00-00

$9.49

23

BODY, LATCH 2

2HC-K7172-00-00

Unavailable

24

LOCK ASSY 2

2HC-F16B0-00-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

$3.81

26

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

27

SPRING

2HC-F1742-00-00

$2.96

28

. PIN

90249-05801-00

Unavailable

29

CIRCLIP (EU0)

99080-04600-00

Unavailable

30

. ROD 2

2HC-F7248-00-00

Unavailable

31

. CLIP, CABLE

2HC-F2805-00-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

33

STAY, FR. DOOR 1

2HC-K8554-00-00

$6.99

34

SPRG., HINGE

2HC-F463G-01-00

$4.73

35

COLLAR

2HC-F1748-00-00

$2.50

36

BOLT

90109-068A8-00

Unavailable

37

BOLT

90109-08856-00

Unavailable

38

LOCK

2HC-F178J-00-00

Unavailable

39

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

40

PAD

2MB-F8378-00-00

Unavailable

41

COVER,SIDE1

2HC-F1711-01-00

Unavailable

42

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable

43

COVER,SIDE2

2HC-F1721-01-00

Unavailable

44

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable
