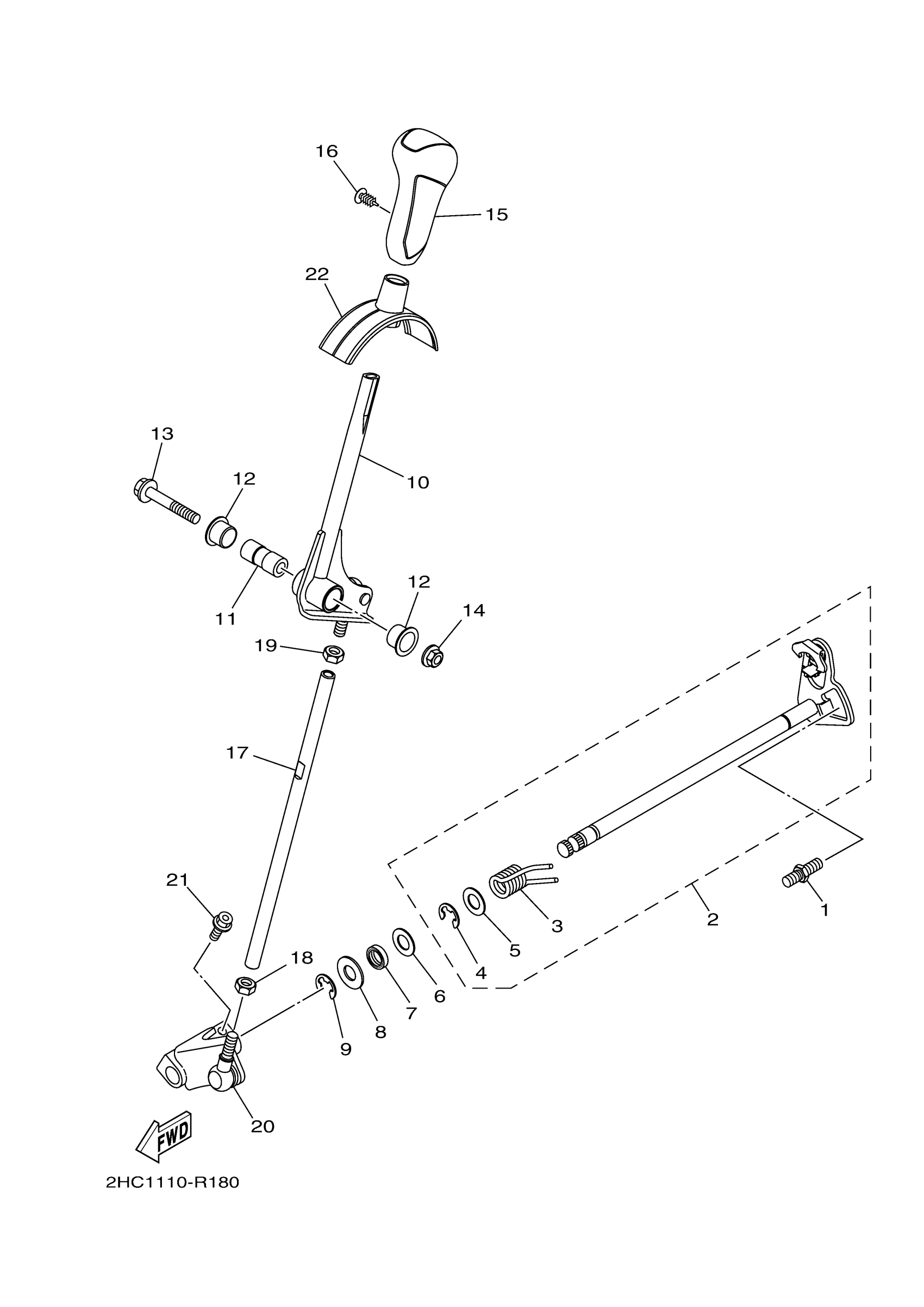

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

2HC-18101-00-00

$53.19

3

SPRING, TORSION

90508-32021-00

$3.91

4

CIRCLIP

99002-10600-00

$5.86

5

WASHER, PLATE (5N6)

90201-127E1-00

$3.52

6

WASHER, PLATE (5N6)

90201-127E1-00

$3.52

7

OIL SEAL (4G0)

93102-12224-00

$7.79

8

WASHER, PLATE (353)

90201-12575-00

$5.75

9

CIRCLIP

99002-10600-00

$5.86

10

LEVER COMP. 1

2HC-18190-01-00

$80.78

11

COLLAR

90387-08107-00

$10.09

12

BUSH, SOLID

90381-15001-00

$3.82

13

BOLT, FLANGE

95817-08050-00

$2.93

14

NUT, SELF-LOCKING

95602-08200-00

$2.69

15

KNOB, SHIFT LEVER

2HC-E8174-00-00

Unavailable

16

RIVET(81E)

90269-05055-00

Unavailable

17

ROD, SHIFT

2HC-18115-01-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

. NUT

95380-08700-00

$3.14

20

ARM, SHIFT 2

2HC-18169-00-00

Unavailable

21

BOLT, FLANGE

90105-06142-00

Unavailable

22

GUIDE, SHIFT

2HC-E8172-00-00

Unavailable
