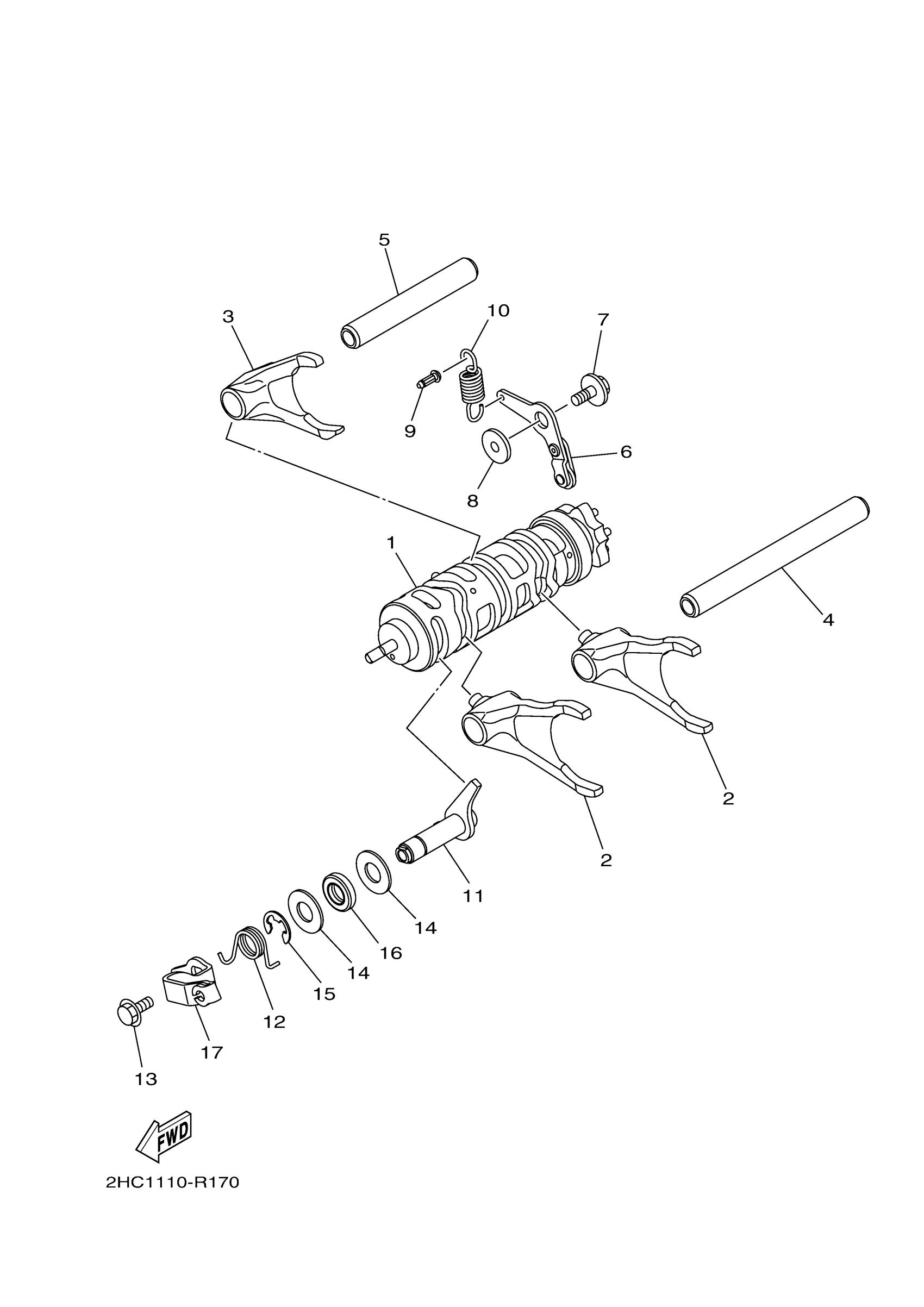

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 SHIFT CAM FORK Diagram

SHIFT CAM ASSY

2HC-18540-01-00

$185.39

FORK, SHIFT 1

2HC-18511-00-00

$40.00

FORK, SHIFT 2

2HC-18512-00-00

$41.49

BAR, SHIFT FORK GUIDE 1

3D8-18531-00-00

$29.03

BAR, SHIFT FORK GUIDE 2

3D8-18535-00-00

$24.27

STOPPER LEVER ASSY

2HC-18140-00-00

Unavailable

SCREW, WITH WASHER

90159-06028-00

$6.17

SPACER

4NX-18175-00-00

Unavailable

HOOK, SPRING

132-16346-00-00

$8.14

HANGER, SPRING

2HC-18144-00-00

$2.53

SHIFTER BRKT. ASSY

2HC-18380-00-00

$28.14

SPRING

2HC-18337-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.40

WASHER, PLATE (353)

90201-12575-00

$5.75

CIRCLIP

99002-10600-00

$5.86

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

BRACKET, SHIFTER

2HC-18431-00-00

Unavailable
