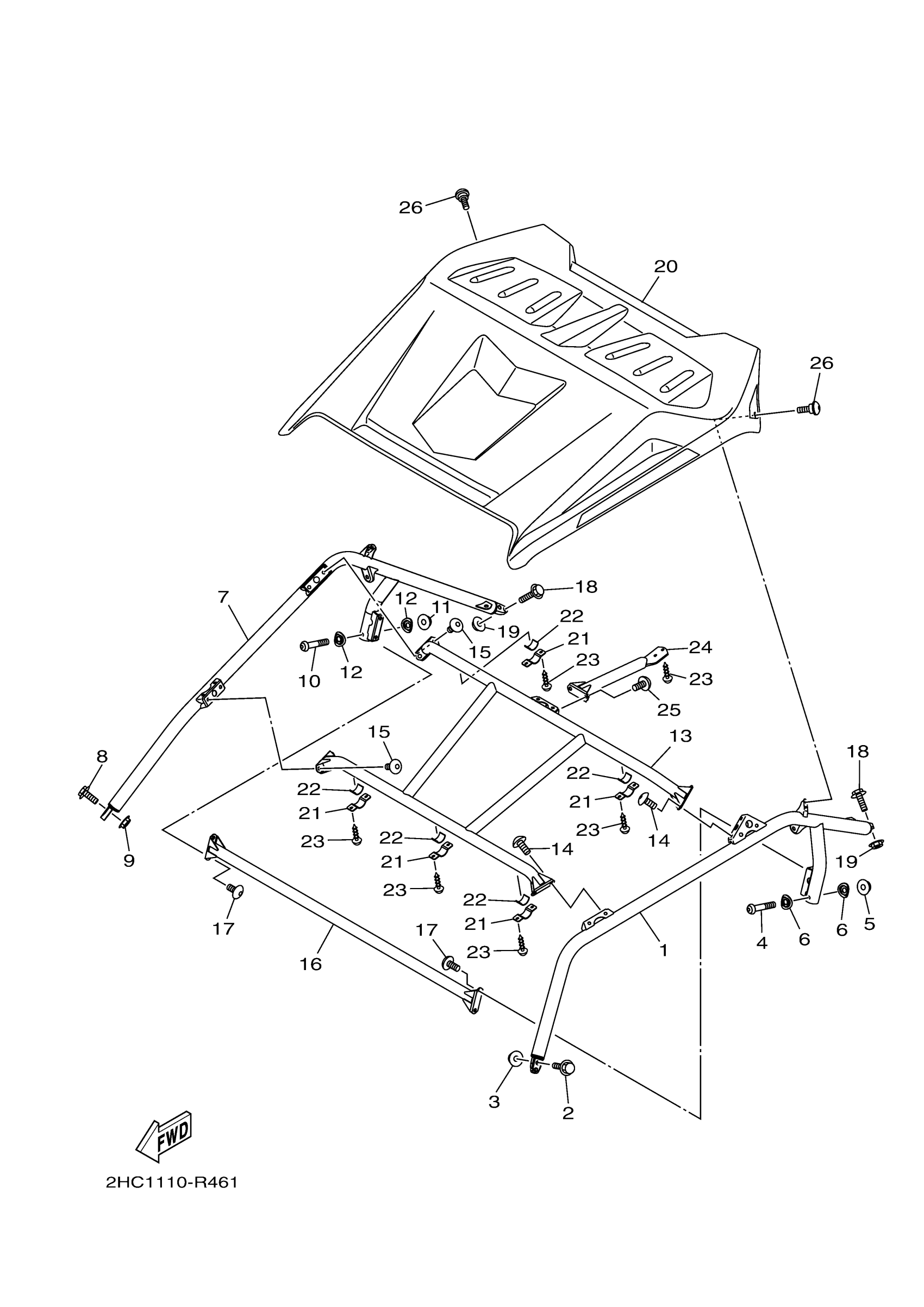

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
2HC-K831A-20-00
Unavailable
2
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
3
NUT, SELF-LOCKING
90185-10011-00
$5.60
4
BOLT, BUTTON HEAD
92012-10060-00
$3.13
5
NUT, SELF-LOCKING
90185-10011-00
$5.60
6
WASHER 2
5UG-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
2HC-K831E-20-00
$217.99
8
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
9
NUT, SELF-LOCKING
90185-10011-00
$5.60
10
BOLT, BUTTON HEAD
92012-10060-00
$3.13
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
WASHER 2
5UG-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
2HC-K8392-20-00
Unavailable
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
16
ROOF SUPPORT ASSY
2HC-K830A-20-00
Unavailable
17
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
18
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
19
NUT, SELF-LOCKING
90185-10011-00
$5.60
20
COVER, SUN ROOF
2HC-K8314-10-00
Unavailable
21
CLAMP,SUPPORT
2HC-K8366-01-00
Unavailable
22
DAMPER
5UG-K7588-01-00
Unavailable
23
SCREW, TAPPING
90167-06800-00
Unavailable
24
ROOF SUPPORT ASSY
2HC-K830B-20-00
Unavailable
25
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
26
BOLT
90109-06253-00
Unavailable
