- YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017
FRONT WHEEL 2

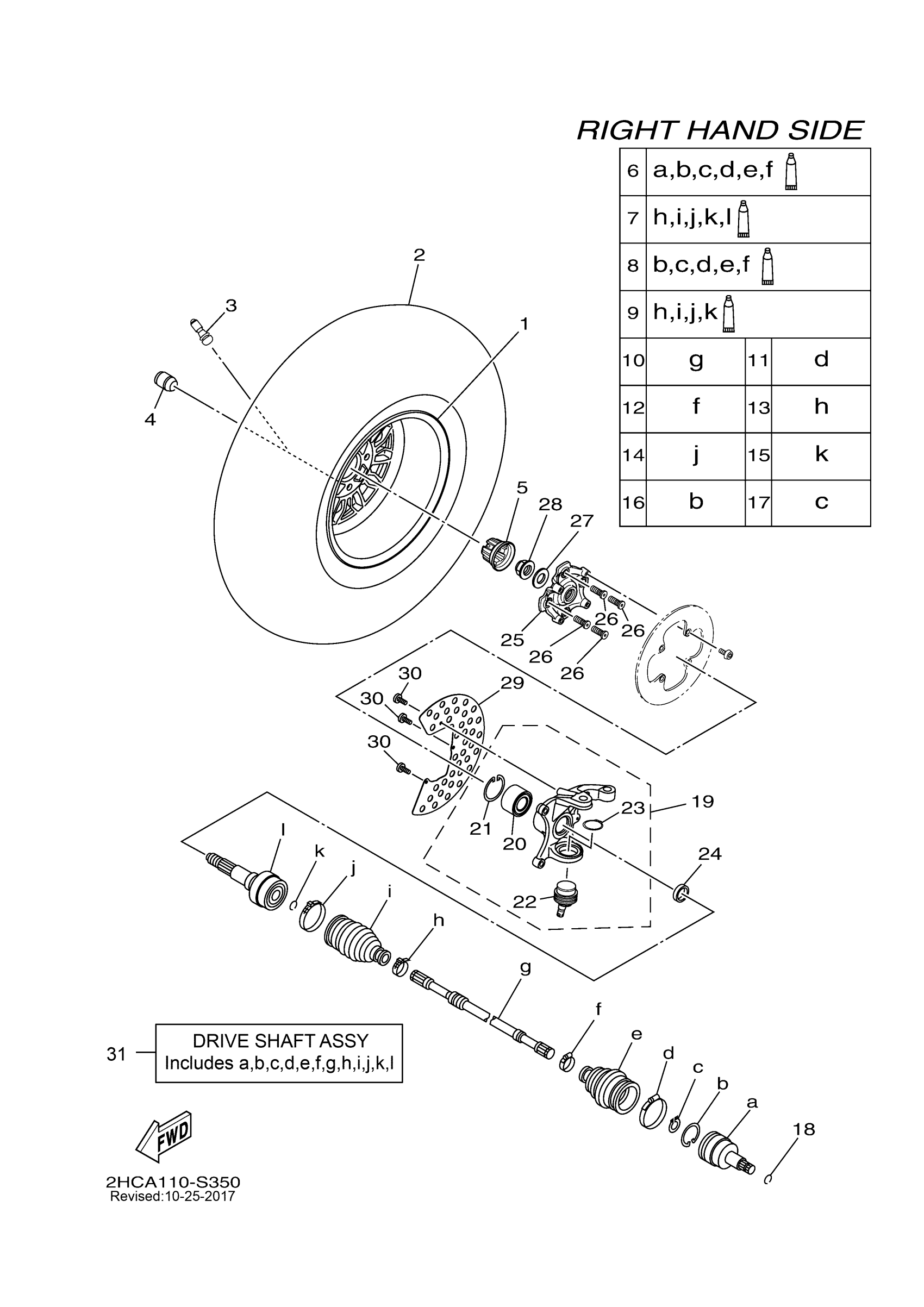

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 FRONT WHEEL 2 Diagram
#
1
WHEEL, CAST 2
2HC-F516D-00-00
$288.99
2
TIRE (27X9.00R14 MU09 6PR TL)
94109-14809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT, CROWN
90176-12800-00
$7.49
5
CAP, WHEEL
2HC-F512A-00-00
$3.02
6
DOUBLE OFF SET JOINT
2HC-2510J-01-00
$297.99
7
BALL JOINT SET
2HC-2510F-01-00
$504.99
8
BOOT SET(DOUBLE OF
2HC-2510H-01-00
$55.99
9
BOOT SET (BALL JOINT)
2HC-2510G-01-00
$48.99
10
SHAFT
2HC-2518E-00-00
Unavailable
11
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511H-00-00
$9.99
12
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511G-00-00
$6.99
13
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
$6.99
14
BOOT BAND (SMALL)
2HC-2512G-10-00
$7.99
15
CIRCLIP
2HC-2512H-00-00
$3.80
16
CIRCLIP
3B4-25182-00-00
Unavailable
17
SNAP RING
3B4-2512J-00-00
Unavailable
18
CIRCLIP(2HR)
93450-22119-00
Unavailable
19
STEERING KNUCKLE A
2HC-F3502-10-00
Unavailable
20
BEARING
93305-00602-00
Unavailable
21
CIRCLIP
99009-55500-00
Unavailable
22
BALL JOINT 2
2HC-23579-00-00
Unavailable
23
CIRCLIP
93410-42096-00
Unavailable
24
COLLAR
90387-30008-00
Unavailable
25
HUB, FRONT
2HC-F5111-02-00
Unavailable
26
BOLT, SERRATION
90114-12005-00
Unavailable
27
WASHER, PLATE
90201-25023-00
Unavailable
28
NUT
90179-24006-00
Unavailable
29
RING, WHEEL 1
2HC-F514A-00-00
Unavailable
30
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
31
DRIVE SHAFT ASSY
2HC-2518F-01-00
Unavailable
