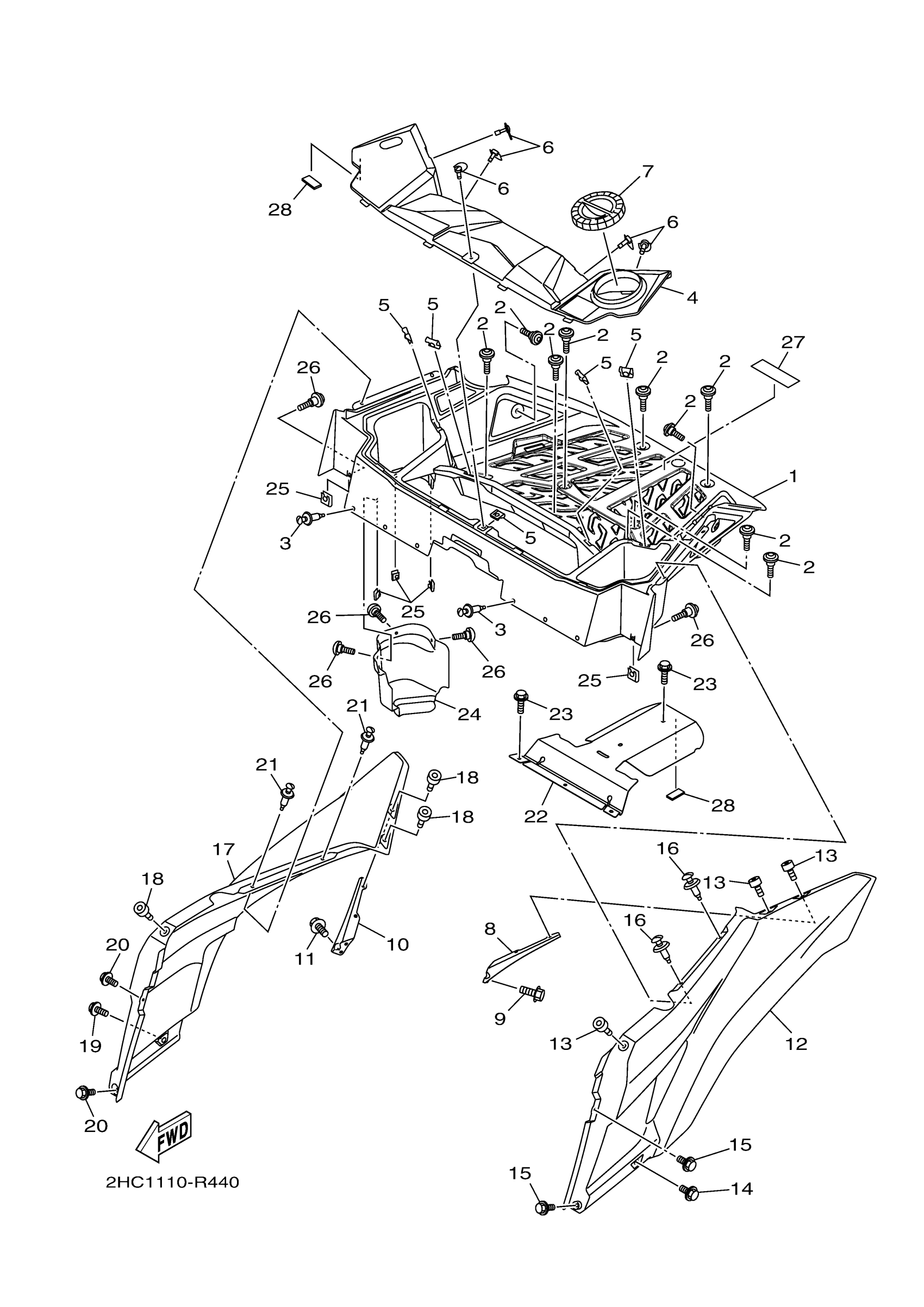

Yamaha YXZ10YMXHO (YXZ1000R EPS) 2HCA1 2017 CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT

2HC-F4841-00-00

$152.67

2

BOLT

90109-068A5-00

$5.67

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

COVER

2HC-F172W-00-00

$315.65

5

PLATE, SPRING

4XV-2177L-01-00

$5.79

6

HEAD

8HG-28386-00-00

$25.77

7

CAP

1XP-F151B-00-00

$5.90

8

STAY, REAR

2HC-F1643-00-00

$8.88

9

BOLT, FLANGE

95817-06012-00

$1.40

10

STAY, REAR

2HC-F1644-00-00

$8.73

11

BOLT, FLANGE

95817-06012-00

$1.40

12

FENDER,REAR

2HC-F1611-21-00

$138.74

13

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

14

BOLT

90109-06307-00

$4.37

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

FENDER2

2HC-F162R-21-00

$84.95

18

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

19

BOLT

90109-06307-00

$4.37

20

BOLT, WITH WASHER

90119-06226-00

$2.12

21

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

22

INSULATOR, HEAT

2HC-F2898-00-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

24

COVER 1

2HC-F842M-01-00

Unavailable

25

NUT, SPRING

90183-060A6-00

Unavailable

26

BOLT, WITH WASHER

90119-06226-00

$2.12

27

PAD, BATTERY

F1K-U8221-00-00

$2.66

28

DAMPER

5UG-K7588-01-00

Unavailable
